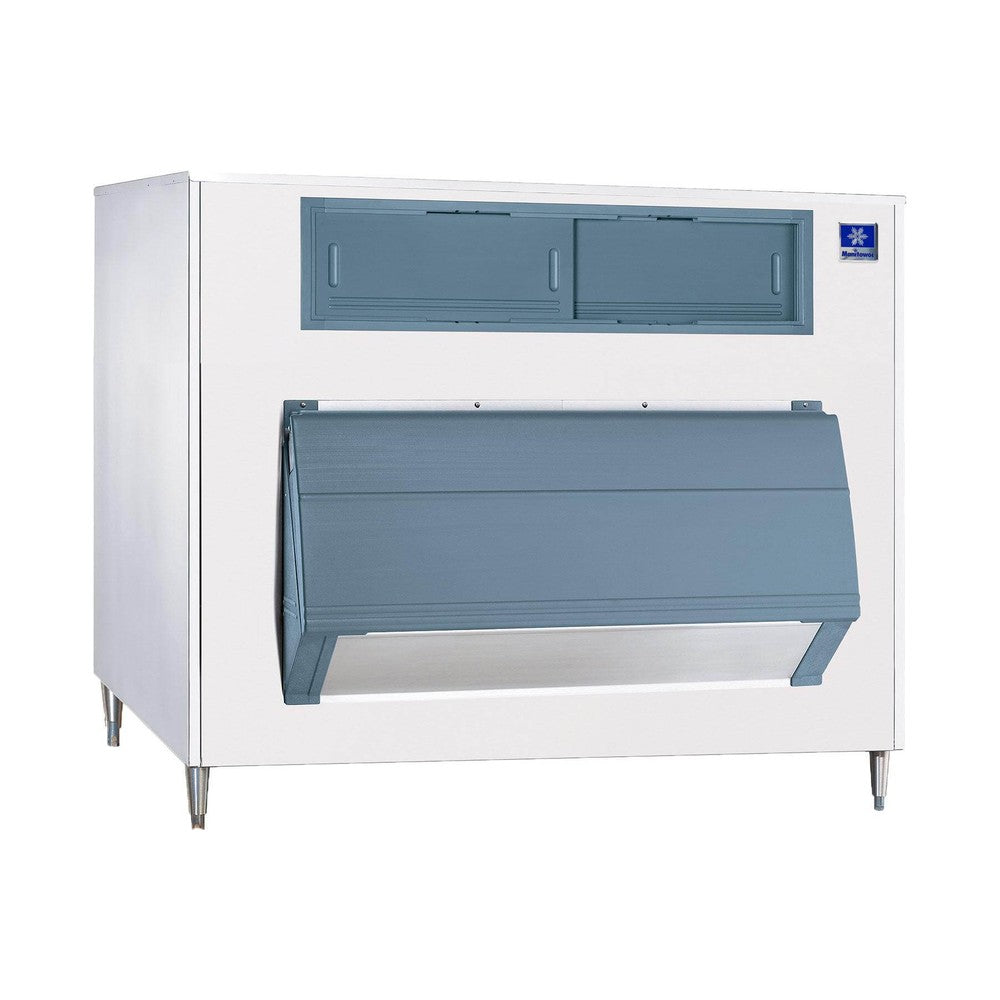

Manitowoc F1650, 60" 1,260 Lb Ice Storage Bin, Stainless Steel Exterior

Model Specifics: 1,260 lb ice storage · 60" wide · 65" height · Sliding ice gate · Stainless steel exterior · Replaces the LB1760

60" Large-Capacity Stainless Ice Bin:

The F1650 is the largest standard F-style bin: 60 inches wide, 65 inches tall and rated to store up to 1,260 lbs of ice. It can carry one 30- or 48-inch Indigo NXT cube machine with the included adapter, or two 30-inch machines side by side with an optional adapter, which makes it a fit for hotels, hospitals, stadiums and other high-volume sites. It is the current model that replaces the LB1760.

Compatible ice machines (per Manitowoc's application chart):

• One 30" or 48" Indigo NXT cube machine with the included K603048 adapter (ice deflector required, sold separately)
• Two 30" cube machines side by side with adapter K603030 (not included; machines must be water-cooled, remote or top air discharge)
• Flake and nugget machines with adapter K603030 (22" models also need K00421), ordered with the machine

Ice deflector required (sold separately): Manitowoc does not include the ice deflector that an Indigo NXT cube machine needs on this bin. Order K00347 for a 30" front-facing-evaporator model (0450 to 1200 series), K00349 for a 48" 1500 or 1900 series machine, or K00382 for a single 30" dual-evaporator machine (1400 to 2130 series), and K00383 when two dual-evaporator machines sit side by side. Flake and nugget machines do not use a deflector.

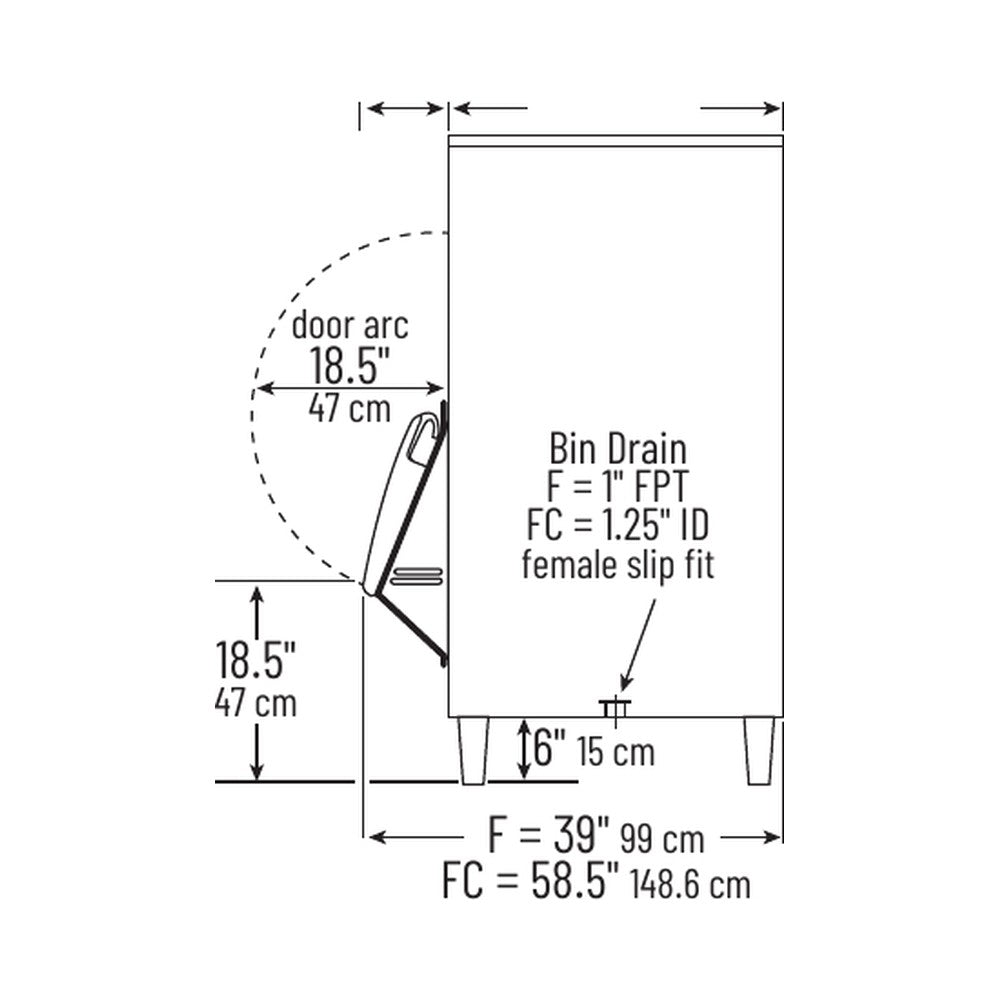

Clearance: After installation, the door snout adds 8" to the depth, and the door needs 18.5" of clearance in front to open. For indoor use only.

Features:

• Heavy-duty welded stainless steel construction
• Sliding ice gate controls the flow of ice into a tote or bucket and returns to closed on its own
• Impact-resistant sliding windows for checking the ice level without opening the bin
• Polyethylene lift door with ball-catch hinge holds open while scooping and has no sharp corners or gaskets
• Foamed-in-place insulation
• 1" FPT bin drain
• Includes four 6" legs, a sanitary ice scoop (about 5.3 lbs per scoop) and the stainless steel machine adapter listed below

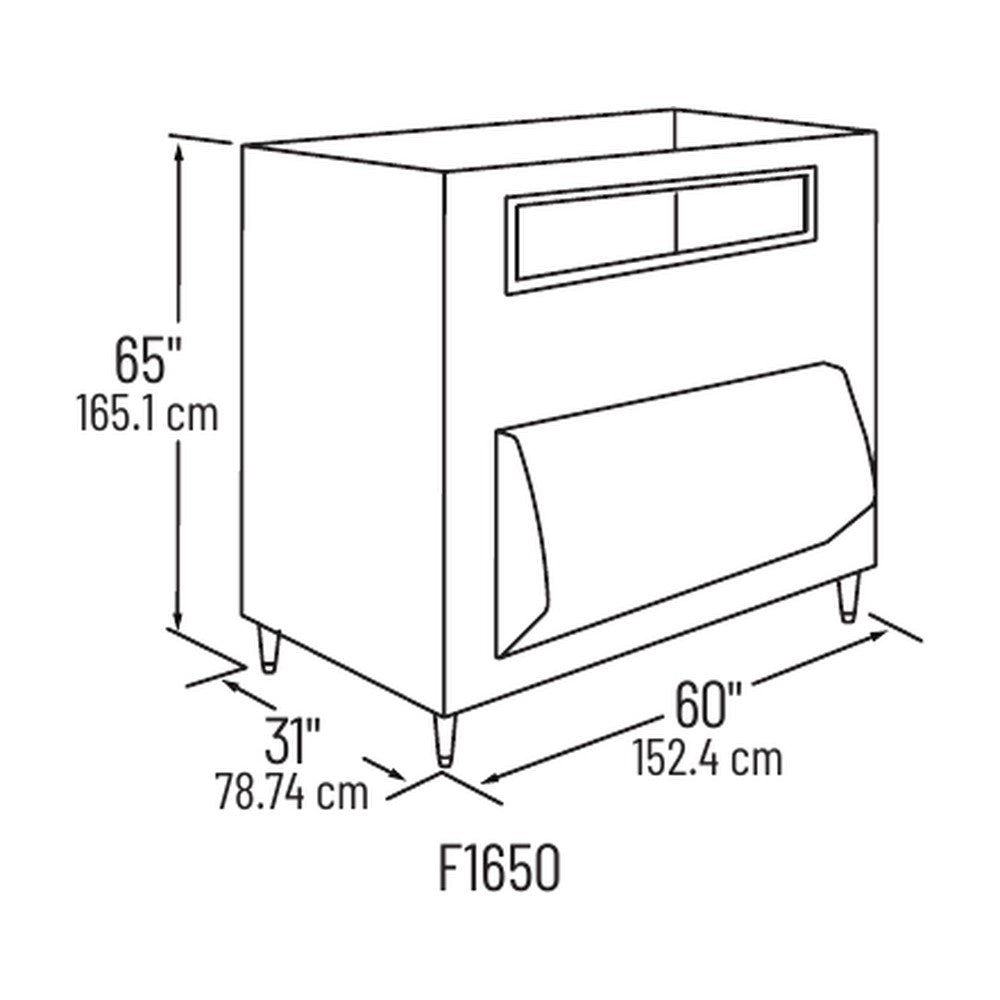

Specifications:

• Model: F1650
• Ice storage: 1,260 lbs (application capacity)
• AHRI certified volume: 52.8 cu. ft.
• Width: 60"
• Depth: 31"
• Height: 65" (includes 6" legs)
• Weight: 327 lbs
• Exterior: Stainless steel
• Certification: NSF
• Included adapter: K603048

Good to know: Compared with the LB1760 it replaces, the F1650 is 31" deep instead of 34", and its storage is rated at 1,260 lbs under Manitowoc's current method (the LB1760 was listed at 1,693 lbs).

Manitowoc Limited Commercial Warranty:

• Bin: Five (5) years parts and labor
• Limited lifetime warranty against corrosion of the cabinet exterior, including the top and trim; the interior liner will be free of corrosion for the useful life of the product

Brand / MPN: Manitowoc / F1650
