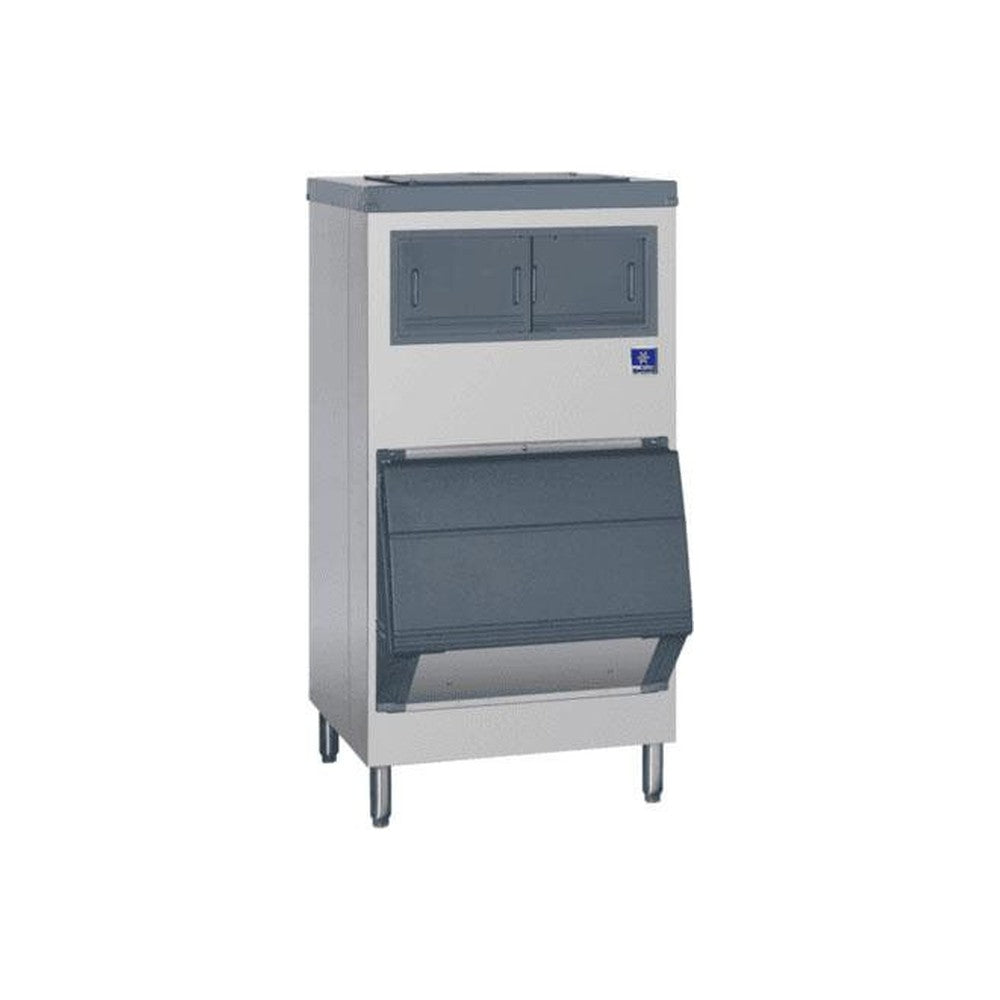

Manitowoc F700, 30" 509 Lb Ice Storage Bin, Stainless Steel Exterior

Model Specifics: 509 lb ice storage · 30" wide · 60" height · Sliding ice gate · Stainless steel exterior · Replaces the LB0730

30" Large-Capacity Stainless Ice Bin:

The F700 is the 30-inch entry point to Manitowoc's F-style large-capacity bins. Its welded stainless steel cabinet stands 60 inches tall and stores up to 509 lbs of ice, and instead of a scoop-only door it has a sliding ice gate at the front that lets staff draw ice into a tote or bucket with less spillage. It is the current model that replaces the LB0730.

Compatible ice machines (per Manitowoc's application chart):

• One 30" Indigo NXT cube machine with the included K303000 adapter (ice deflector required, sold separately)
• 22" flake and nugget machines (RNP/RFP0320, RNP/RFP0620, RNF1020, RFF1220) with adapter K302200, ordered with the machine
• 30" RNF1100 and RFF1300 with the included K303000 adapter

Ice deflector required (sold separately): When a cube machine sits on the F700, Manitowoc requires an ice deflector that does not come with the bin: K00347 for 30" Indigo NXT models with front-facing evaporators (0450 to 1200 series) or K00382 for 30" dual-evaporator models (1400, 1430, 1800, 1830, 2100, 2130). Flake and nugget machines need no deflector.

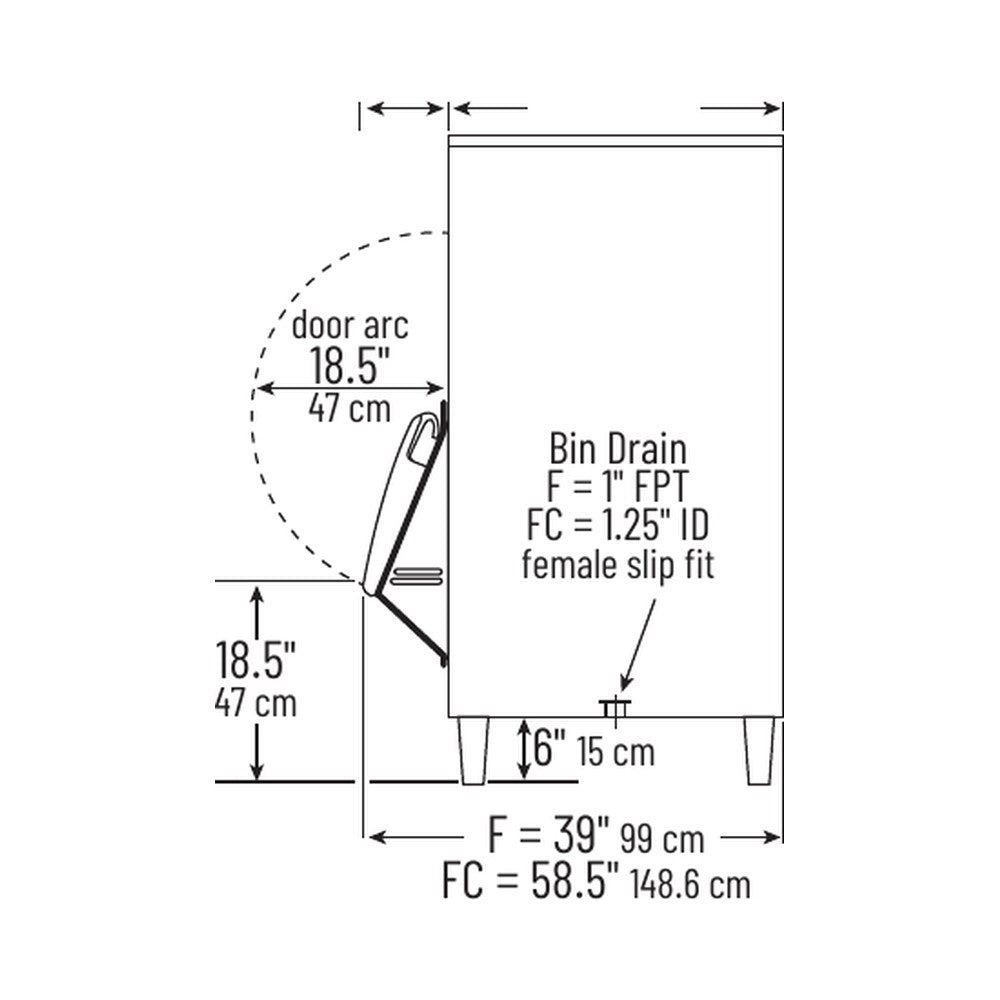

Clearance: After installation, the door snout adds 8" to the depth, and the door needs 18.5" of clearance in front to open. For indoor use only.

Features:

• Heavy-duty welded stainless steel construction
• Sliding ice gate controls the flow of ice into a tote or bucket and returns to closed on its own
• Impact-resistant sliding windows for checking the ice level without opening the bin
• Polyethylene lift door with ball-catch hinge holds open while scooping and has no sharp corners or gaskets
• Foamed-in-place insulation
• 1" FPT bin drain
• Includes four 6" legs, a sanitary ice scoop (about 5.3 lbs per scoop) and the stainless steel machine adapter listed below

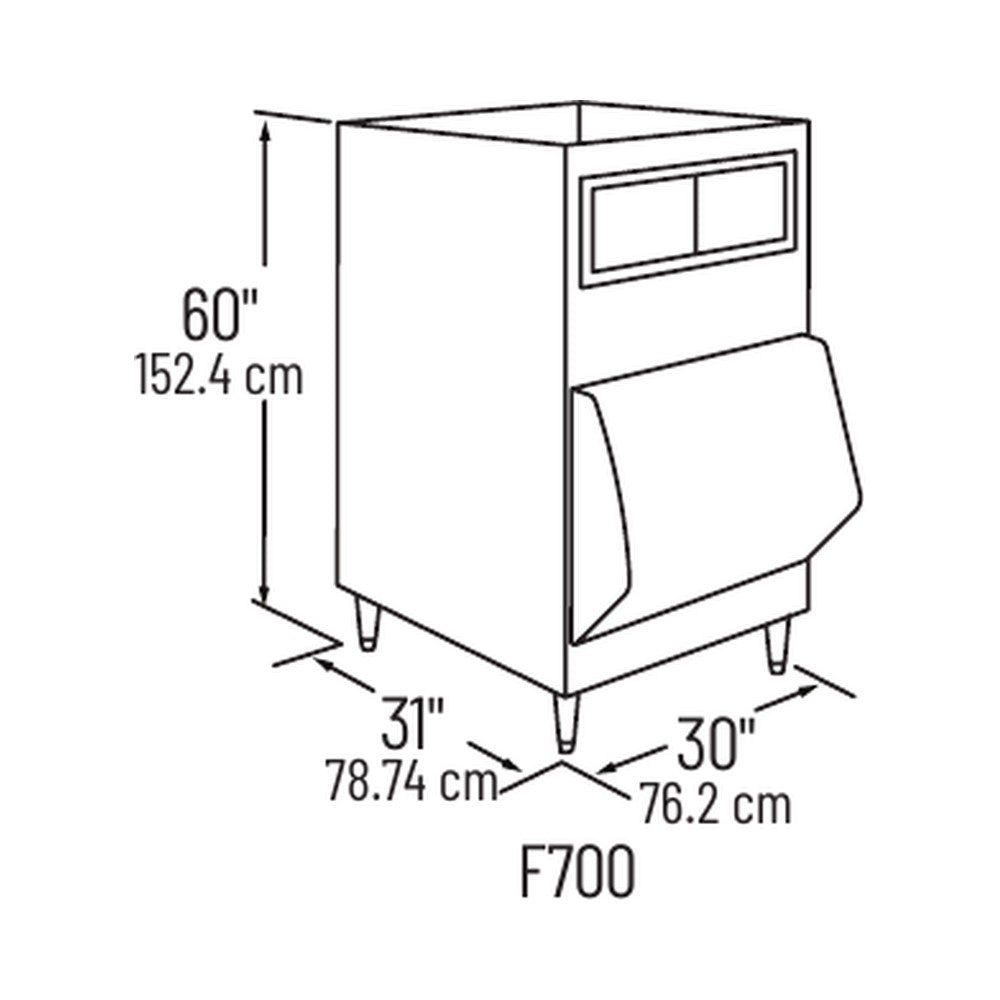

Specifications:

• Model: F700
• Ice storage: 509 lbs (application capacity)
• AHRI certified volume: 21.7 cu. ft.
• Width: 30"
• Depth: 31"
• Height: 60" (includes 6" legs)
• Exterior: Stainless steel
• Certification: NSF
• Included adapter: K303000

Good to know: Compared with the LB0730 it replaces, the F700 is 31" deep instead of 34", and its storage is rated at 509 lbs under Manitowoc's current method (the LB0730 was listed at 683 lbs).

Manitowoc Limited Commercial Warranty:

• Bin: Five (5) years parts and labor
• Limited lifetime warranty against corrosion of the cabinet exterior, including the top and trim; the interior liner will be free of corrosion for the useful life of the product

Brand / MPN: Manitowoc / F700
