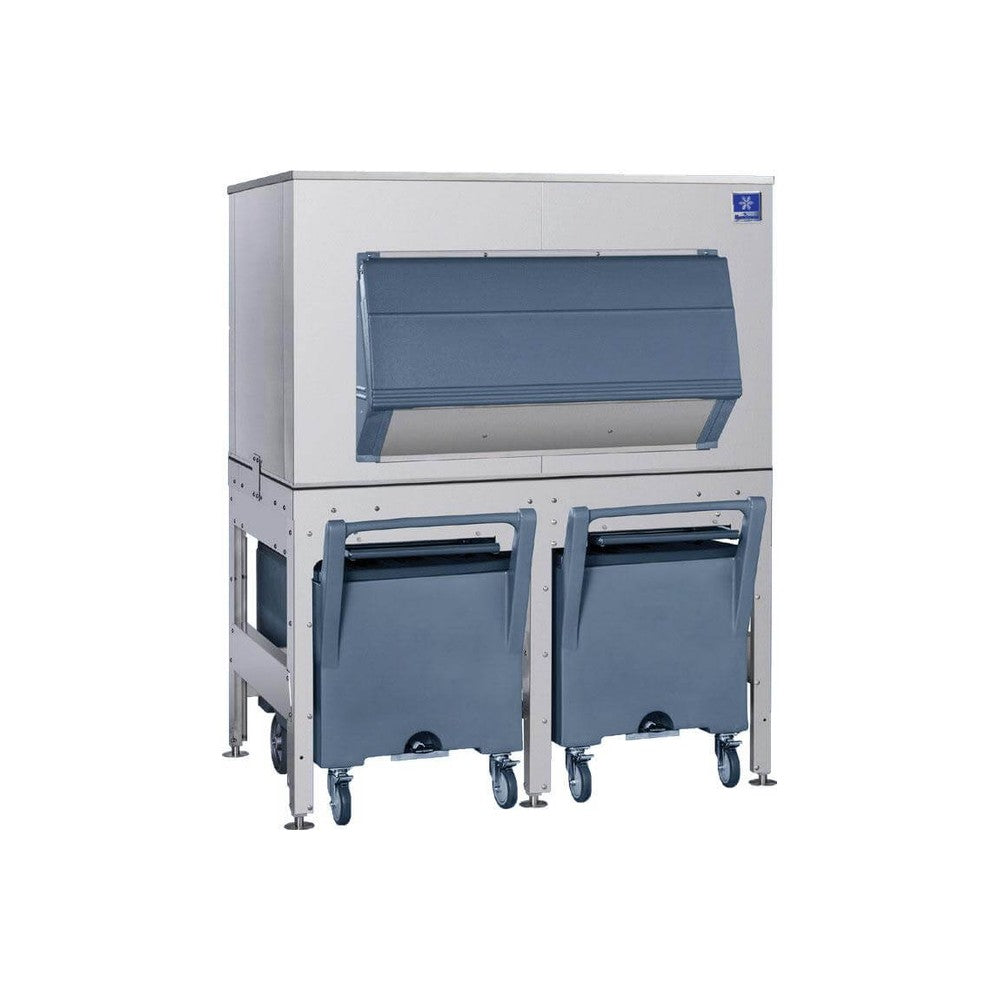

Manitowoc FC1350, 60" 1,000 Lb Ice Storage Bin w/ Carts, Stainless Steel Exterior

Model Specifics: 1,000 lb ice storage · 60" wide · Gravity chute + two 240 lb carts · Stainless steel exterior · Ships on 2 pallets

60" Ice Storage and Cart Transport System:

The FC1350 combines a 60-inch F-style bin with a base and two 240 lb transport carts. A gravity-fed chute drops ice straight into a cart, and Manitowoc says one pull fills a cart with about 200 lbs of ice, roughly 15 times faster than scooping, with no hand contact. It suits banquet halls, arenas, hospitals and other sites that move large amounts of ice to remote stations. The bin stores up to 1,000 lbs of ice.

Compatible ice machines (per Manitowoc's application chart):

• One 30" or 48" Indigo NXT cube machine with the included K613048 adapter (ice deflector required, sold separately)
• Two 30" cube machines side by side with adapter K603030 (not included; machines must be water-cooled, remote or top air discharge)
• Flake and nugget machines with adapter K603030 (22" models also need K00421), ordered with the machine

Ice deflector required (sold separately): Manitowoc does not include the ice deflector that an Indigo NXT cube machine needs on this bin. Order K00347 for a 30" front-facing-evaporator model (0450 to 1200 series), K00349 for a 48" 1500 or 1900 series machine, or K00382 for a single 30" dual-evaporator machine (1400 to 2130 series), and K00383 when two dual-evaporator machines sit side by side. Flake and nugget machines do not use a deflector.

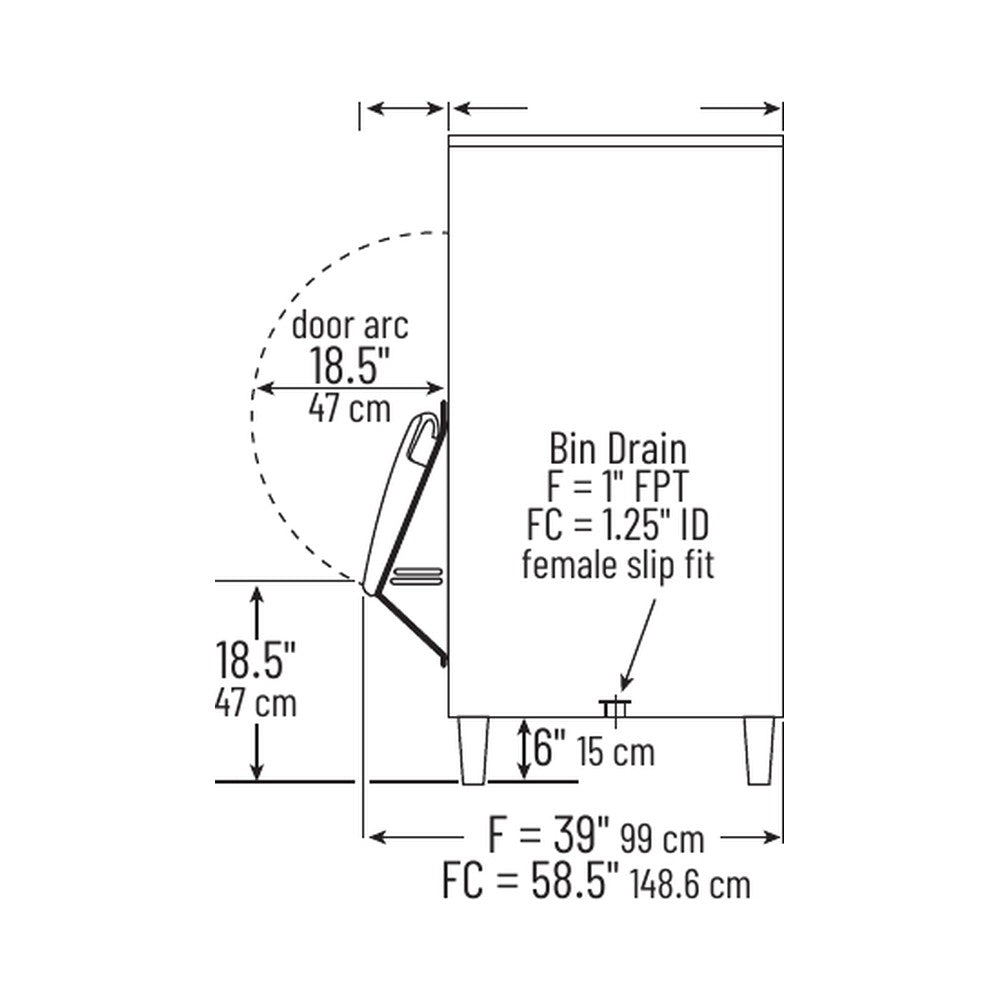

Clearance: After installation, the door snout and carts add 18.5" to the depth. For indoor use only.

Features:

• Gravity-fed chute fills a cart with about 200 lbs of ice in one pull, no scooping or hand contact
• Two 240 lb carts with lids for moving ice to bars, banquet rooms and other stations
• Heavy-duty welded stainless steel bin with impact-resistant sliding windows
• Sliding ice gate for removing ice with a scoop or shovel; returns to closed on its own
• Foamed-in-place insulation
• 1.25" ID female slip-fit bin drain
• Includes bin, base, two 240 lb carts with lids, six flanged legs, an ice paddle and the stainless steel machine adapter
• Optional K00416 totes (set of 6, 25 lbs each) for applications that need ice carried by hand

Specifications:

• Model: FC1350
• Ice storage: 1,000 lbs (application capacity), with two 240 lb carts included
• AHRI certified volume: 42 cu. ft.

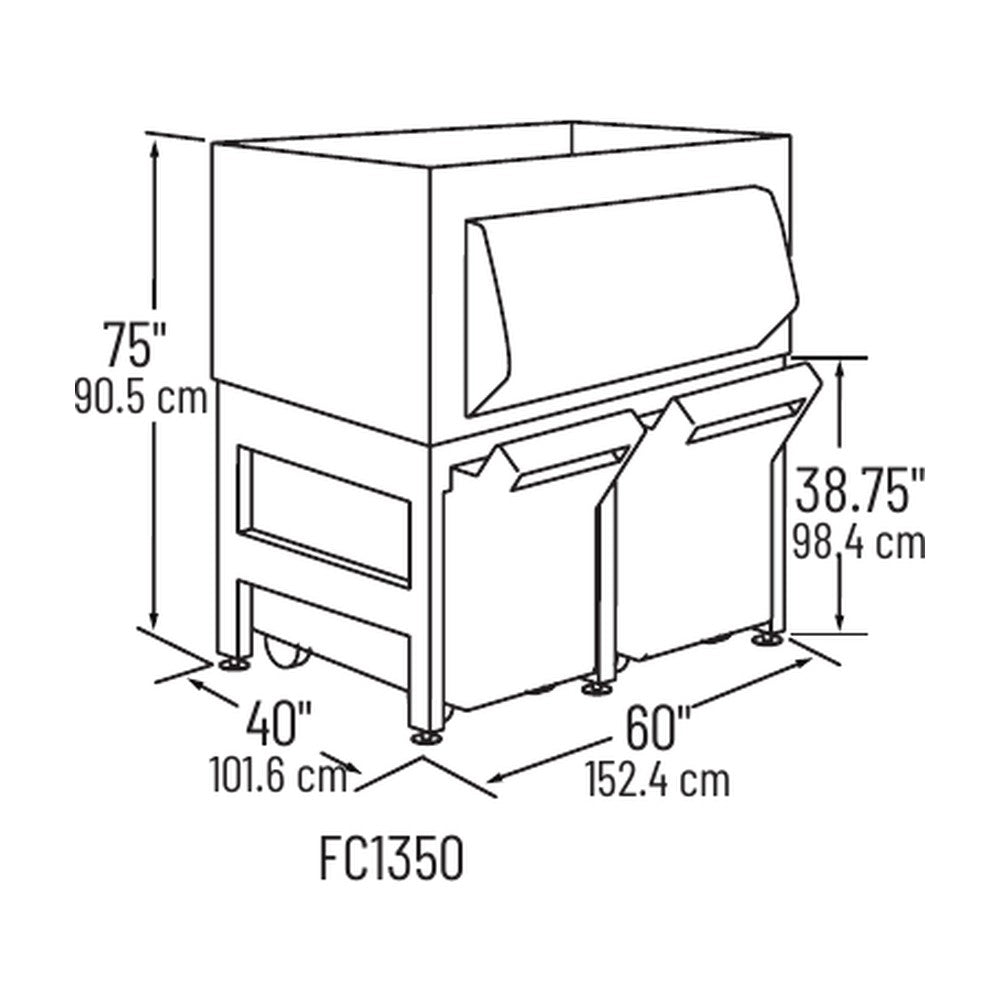

• Width: 60"
• Depth: 40"
• Height: 75" (includes 6" legs)
• Exterior: Stainless steel
• Certification: NSF
• Included adapter: K613048

Good to know: The FC1350 bin and its carts ship separately on two freight pallets, so plan for two pieces at delivery.

Manitowoc Limited Commercial Warranty:

• Bin: Five (5) years parts and labor
• Limited lifetime warranty against corrosion of the cabinet exterior, including the top and trim; the interior liner will be free of corrosion for the useful life of the product
• Carts: Two (2) years parts and labor

Brand / MPN: Manitowoc / FC1350
