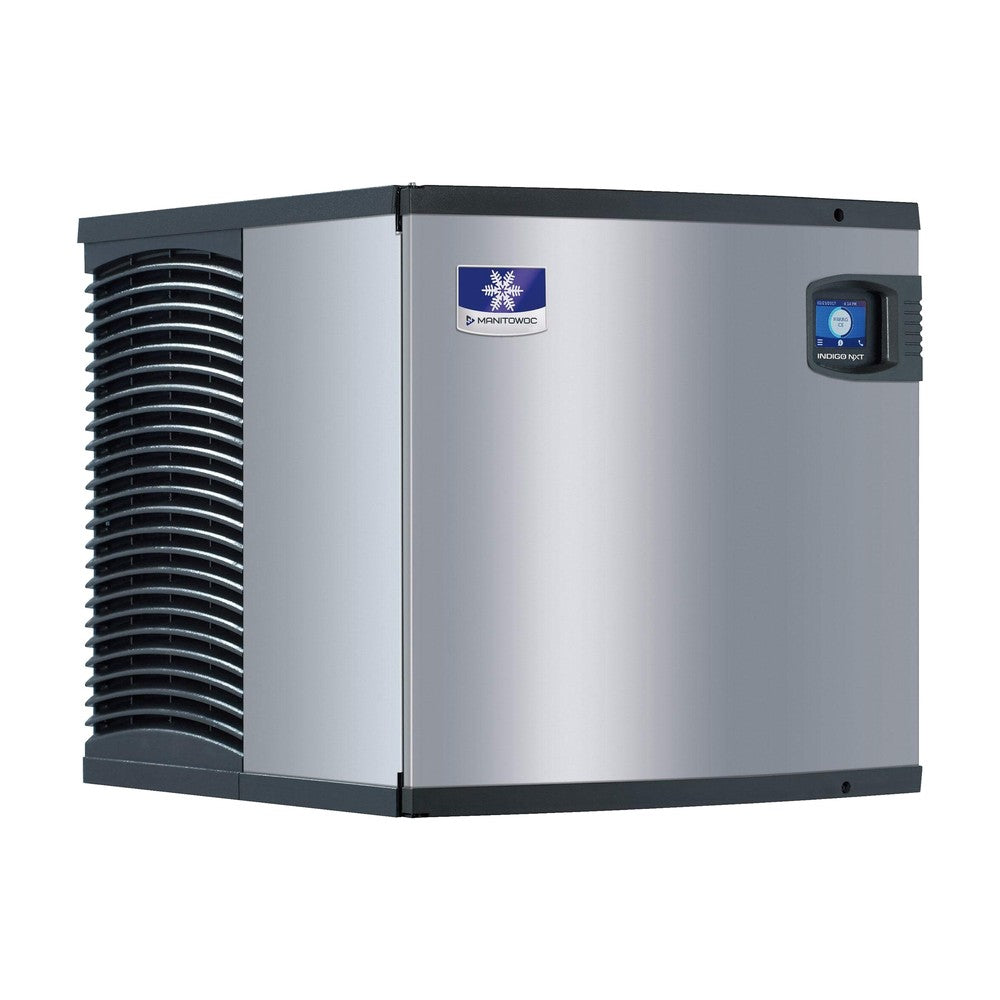

Manitowoc IYP0620W-161, 22" Water Cooled Indigo NXT™ Half Dice Cube Ice Machine, 510 Lb

With a 22-inch water-cooled head producing about 510 pounds of half-dice ice daily, the IYP0620W-161 suits quick-service and beverage-heavy operations that need high output from a narrow space in a warm location.

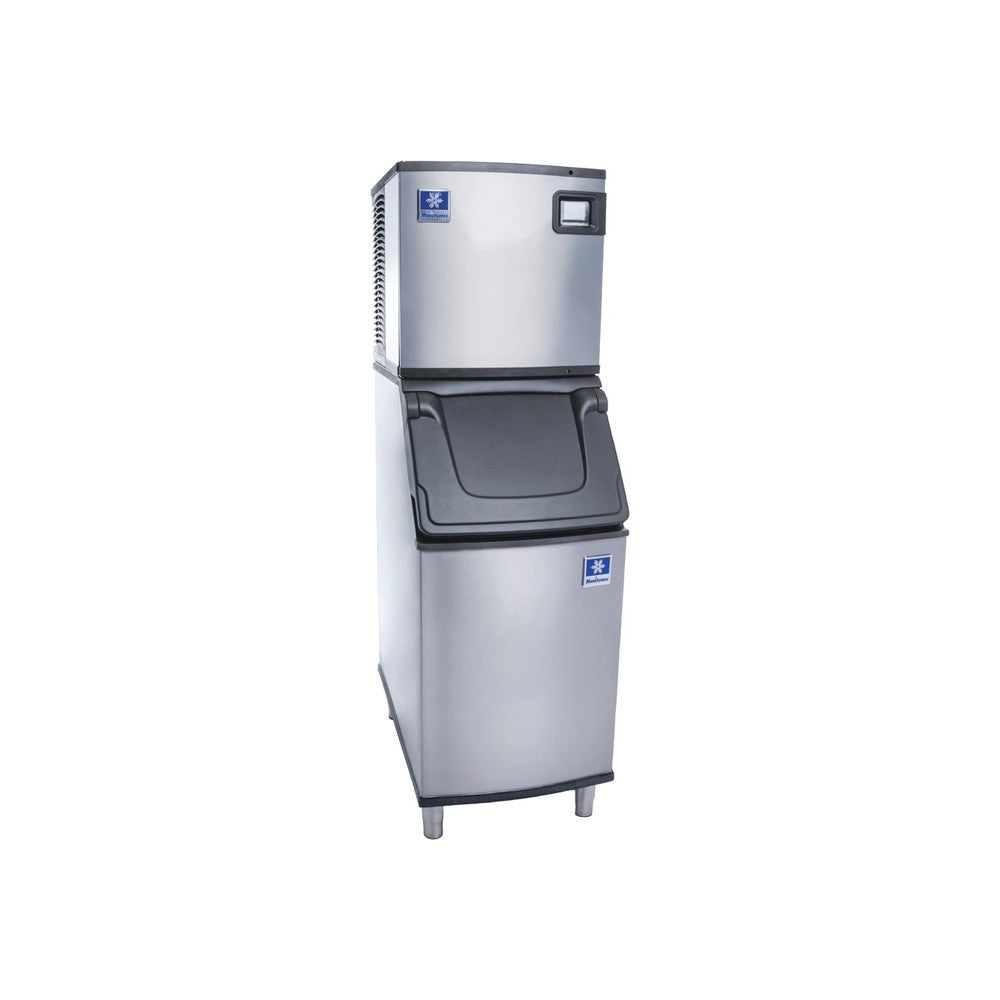

Fit and installation: This is an ice machine head only; the storage bin is sold separately. It is designed to sit on a Manitowoc 22" D320 or D420 storage bin and needs a 115V single-phase circuit plus a condenser water supply and drain. Leave clearance around the cabinet for service and airflow as shown on the Manitowoc spec sheet.

Features:

• Water-cooled condenser keeps production up in hot or enclosed locations and adds less heat to the room

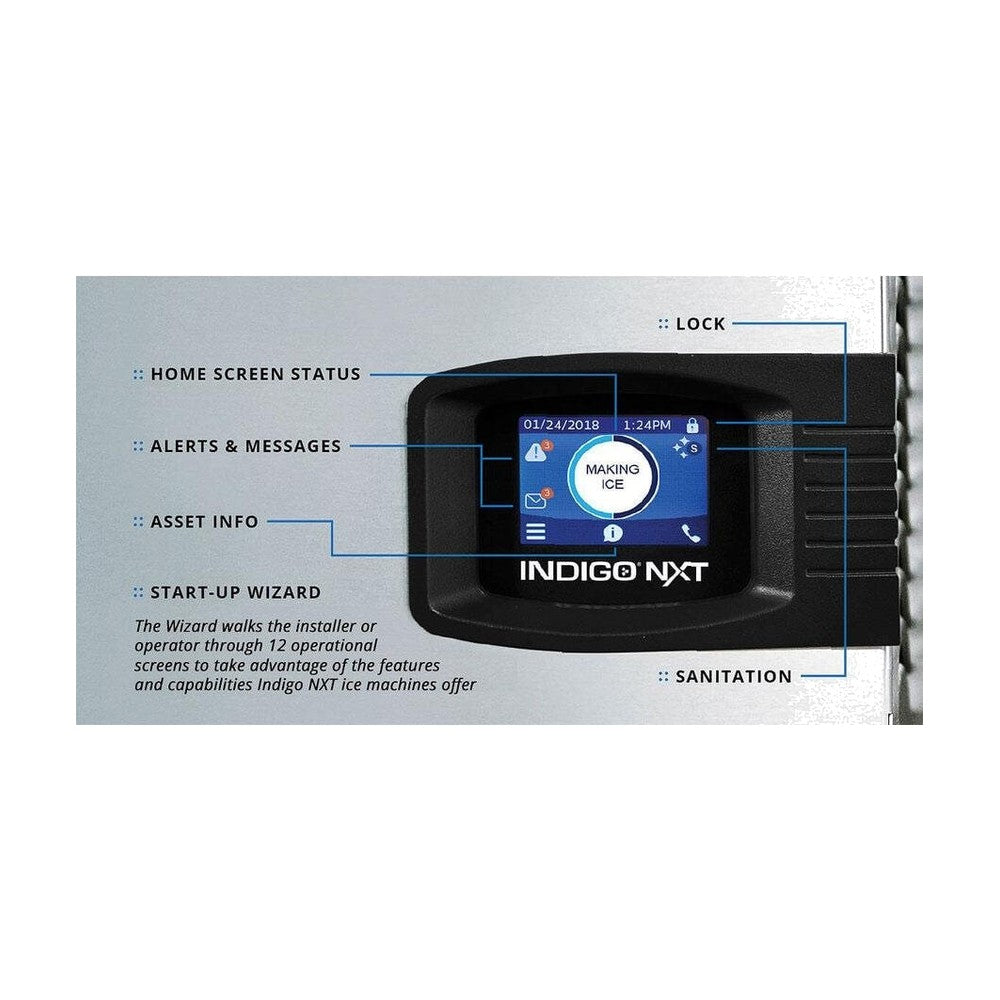

• easyTouch icon-based touch screen display for setup, status, alerts and cleaning reminders
• Programmable ice production lets you schedule run time or set a production target to use off-peak power and avoid overproduction
• Acoustic ice-thickness probe and Active Sense harvest control for consistent cube quality
• 24-hour preventative diagnostics, plus Bluetooth connection to the Manitowoc Ice app for setup and monitoring
• Hinged front door with removable water trough, distribution tube, curtain, probe and pump for easier cleaning; AlphaSan antimicrobial in select parts
• DuraTech exterior with a clear coat that resists fingerprints and corrosion
• Accepts optional LuminIce II growth inhibitor, iAuCS automatic cleaning and Arctic Pure Pro water filtration (sold separately)
• R290 natural refrigerant with very low global warming potential
• NSF and UL listed

Specifications:

• Ice production: Up to 510 lbs per 24 hours
• Ice type: 3/8" x 1-1/8" x 7/8" half-dice cubes
• Condenser: Water-cooled
• Electrical: 115V, single phase, 12.3 amps
• Refrigerant: R290
• Dimensions (W x D x H): 22" x 24.5" x 21.5" (head only)
• Weight: 132 lbs
• Exterior: DuraTech™
• Storage bin: Not included; sold separately

What's included: Ice machine head with Manitowoc factory warranty. Bin, water filter and optional accessories are ordered separately.

Manitowoc Warranty:

3 Year Parts & Labor, 5 Year Evaporator Parts & Labor, 5 Year Compressor Parts

Brand / MPN: Manitowoc / IYP0620W-161
