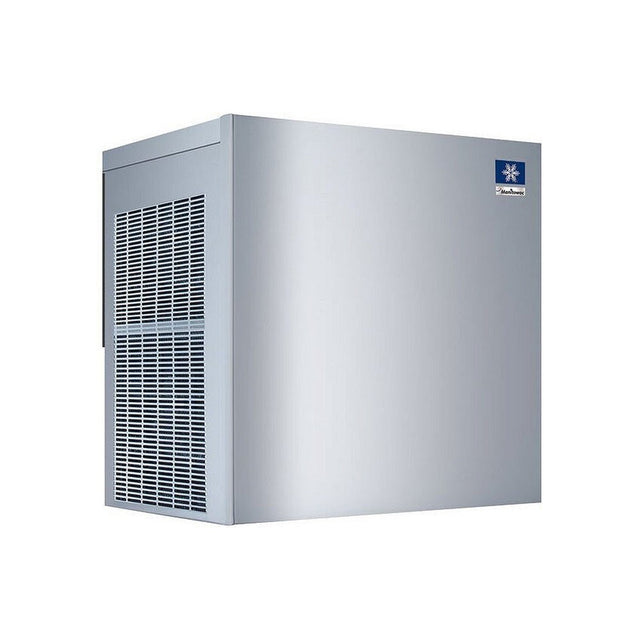

Manitowoc RFP0620W-161, 22" Water Cooled Flake Ice Machine, 740 Lb

The RFP0620W-161 is the water-cooled counterpart to the RFP0620A, rated at about 740 pounds of flake ice a day from a 22-inch head on 115 volt power. Water cooling keeps output steady and adds little heat to the room, which helps in enclosed spaces, hot kitchens and areas without good airflow.

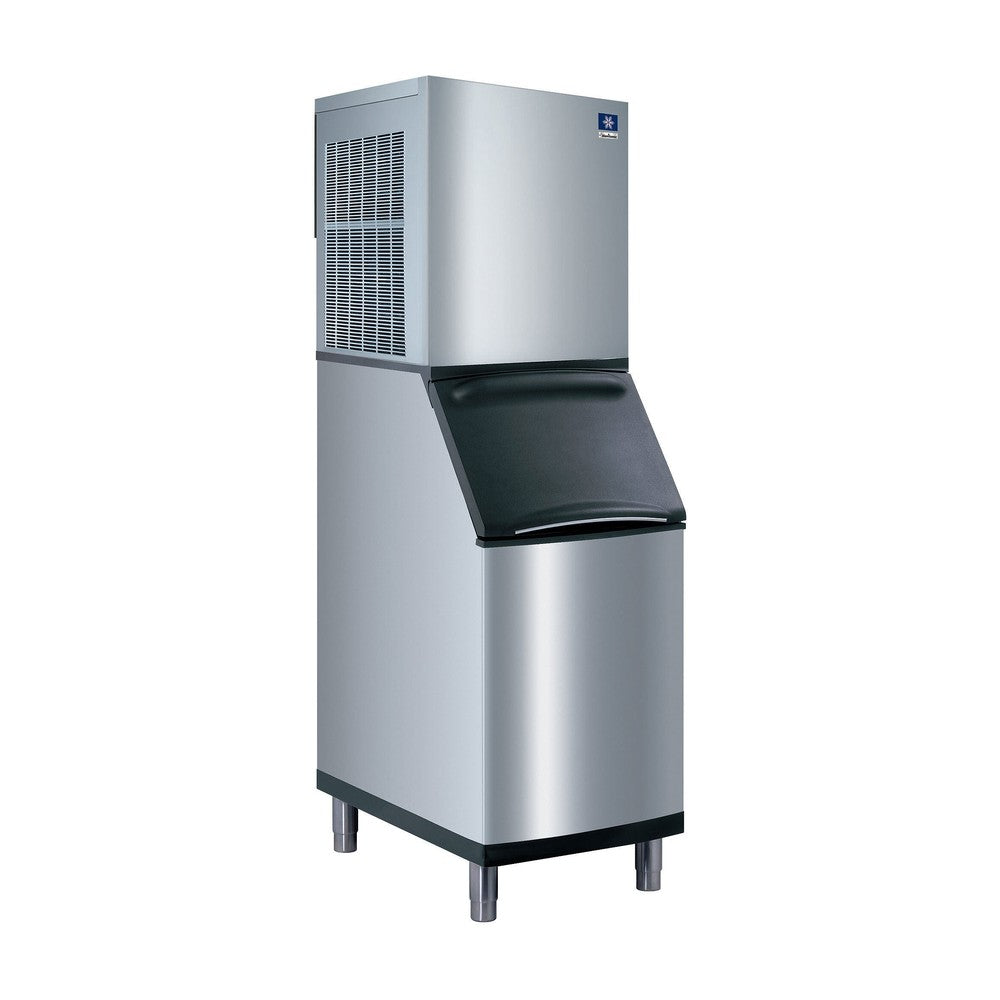

Fit and installation: This is the ice machine head only; the storage bin or dispenser is sold separately. It is sized for a 22-inch-wide Manitowoc D-420 storage bin, and it needs a 115V single-phase circuit, a potable water line and drain, plus a separate condenser water supply and drain. Install it indoors and leave the service and airflow clearances shown on the Manitowoc spec sheet.

Features:

• Water-cooled condenser keeps production steady in hot or enclosed spaces and adds little heat to the room
• Flake ice molds around food and containers without bruising and holds items in place on display
• Well suited to seafood and produce displays, salad bars, food processing and healthcare/cold-therapy use
• High-load, maintenance-free bearings for long, reliable operation
• Heavy-duty stainless steel cabinet resists corrosion
• R290 natural refrigerant with very low global warming potential

Specifications:

• Model: RFP0620W-161
• Ice production: Up to 740 lbs per 24 hours
• Ice type: Flake ice
• Condenser: Water-cooled
• Electrical: 115V, 60 Hz, single phase, 13.5 amps
• Refrigerant: R290
• Dimensions (W x D x H): 22" x 23.6" x 26" (head only)
• Weight: 230 lbs
• Exterior: Stainless Steel
• Certifications: ETL, CE
• Storage bin: Not included; sold separately

What's included: Ice machine head with the Manitowoc factory warranty. Storage bin or dispenser, water filtration and other accessories are ordered separately.

Manitowoc Warranty:

3 years parts and labor on the entire machine; 5 years parts on the compressor.

Brand / MPN: Manitowoc / RFP0620W-161
