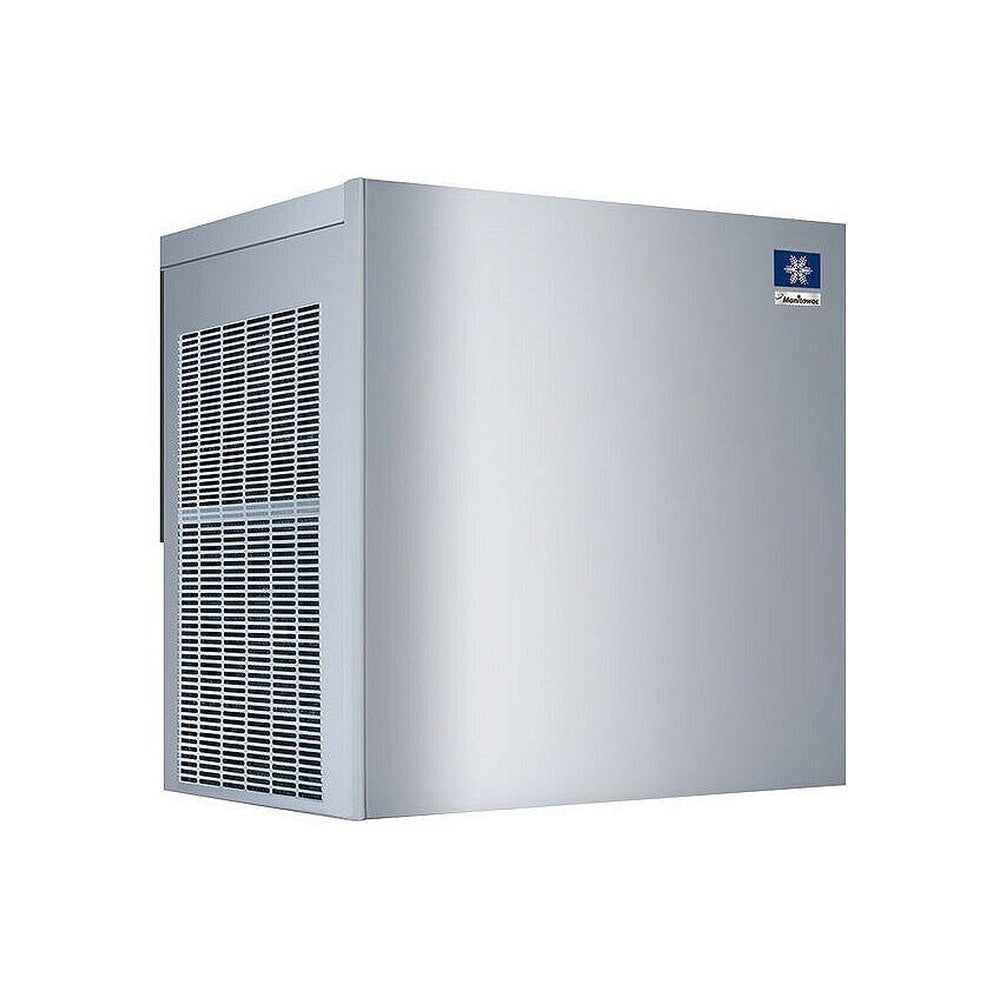

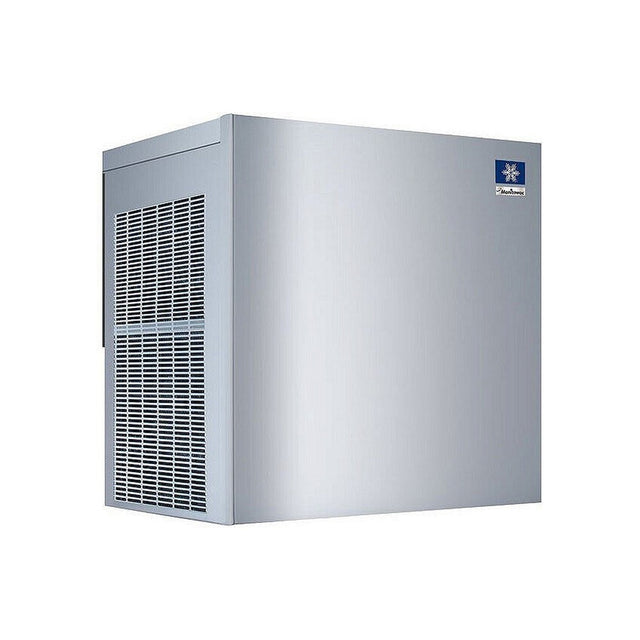

Manitowoc RNP0620W-161, 22" Water Cooled Nugget Ice Machine, 613 Lb

The RNP0620W-161 is the water-cooled version of Manitowoc's 22-inch, 600-class nugget head. It produces up to 613 pounds of nugget ice a day and sends condenser heat into a water loop instead of the room, which helps in cramped back rooms, hot kitchens and spaces with poor ventilation.

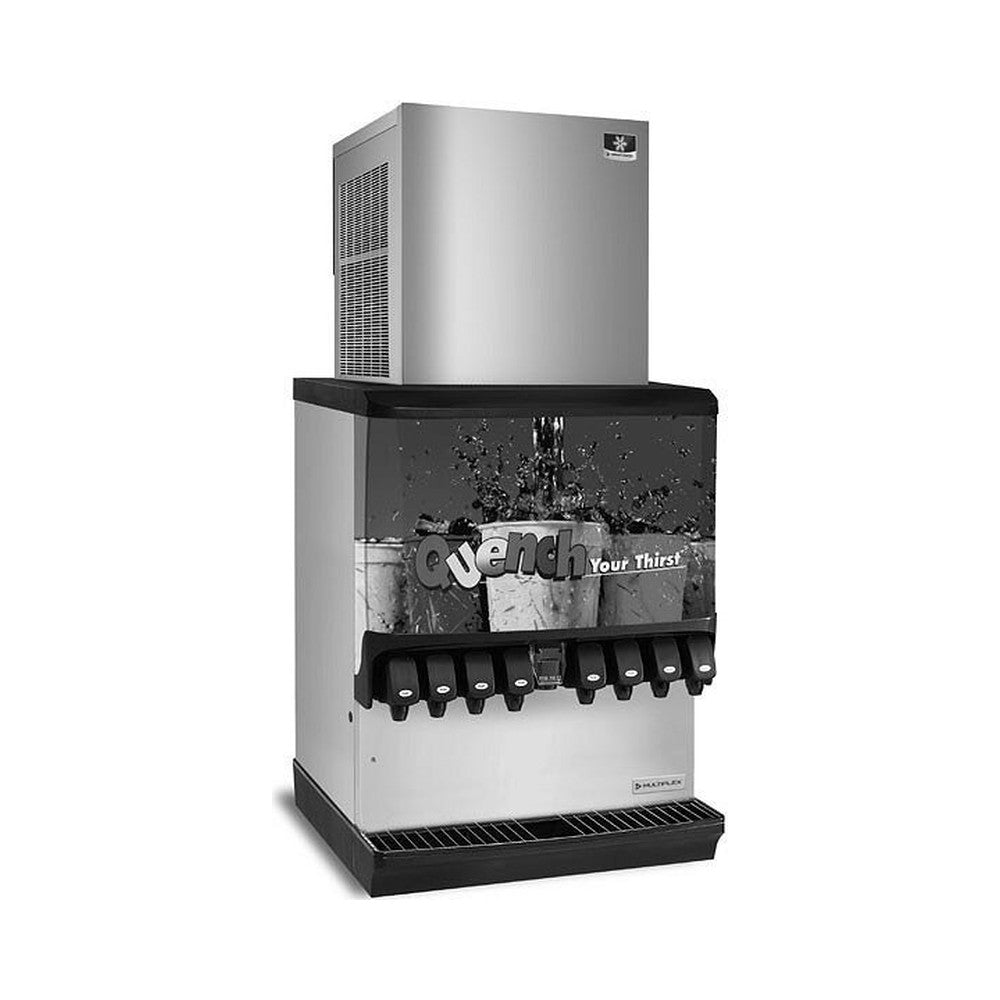

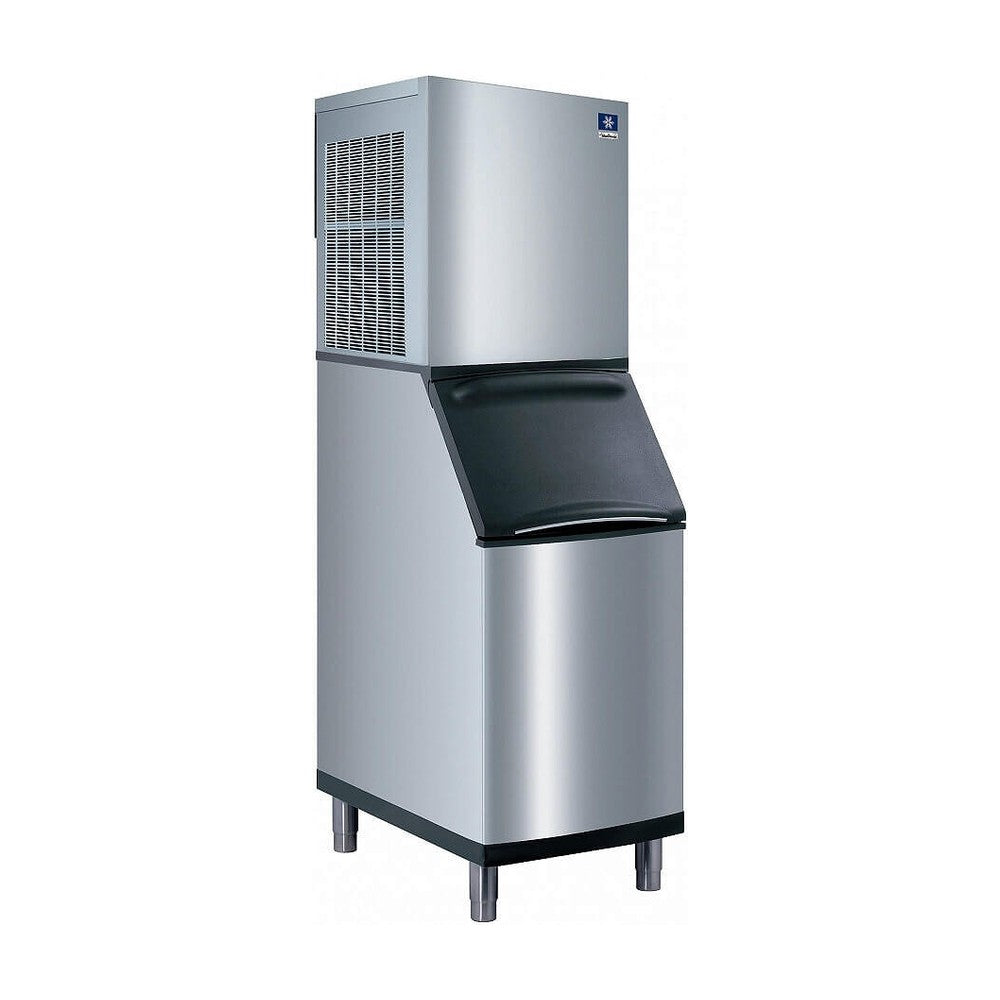

Fit and installation: This is the ice machine head only; the storage bin or dispenser is sold separately. It is sized for a 22-inch-wide Manitowoc D-420 storage bin or a compatible 22-inch ice/beverage dispenser, and it needs a 115V single-phase circuit, a potable water line and drain, plus a separate condenser water supply and drain. Install it indoors and leave the service and airflow clearances shown on the Manitowoc spec sheet.

Features:

• Water-cooled condenser keeps production steady in hot or enclosed spaces and adds little heat to the room
• Bite-sized nugget ice with about 85% ice content: cools drinks quickly with minimal dilution and is soft and chewable
• Well suited to fountain drinks, dispensers, smoothies and blended drinks, and healthcare/cold-therapy use
• High-load, maintenance-free bearings for long, reliable operation
• R290 natural refrigerant with very low global warming potential

Specifications:

• Model: RNP0620W-161
• Ice production: Up to 613 lbs per 24 hours
• Ice type: Nugget ice
• Condenser: Water-cooled
• Electrical: 115V, 60 Hz, single phase, 13.5 amps
• Refrigerant: R290
• Dimensions (W x D x H): 22" x 23.6" x 26" (head only)
• Weight: 210 lbs
• Exterior: Stainless Steel
• Certifications: NSF, UL, ETL, CE
• Storage bin: Not included; sold separately

What's included: Ice machine head with the Manitowoc factory warranty. Storage bin or dispenser, water filtration and other accessories are ordered separately.

Manitowoc Warranty:

3 years parts and labor on the entire machine; 5 years parts on the compressor.

Brand / MPN: Manitowoc / RNP0620W-161
