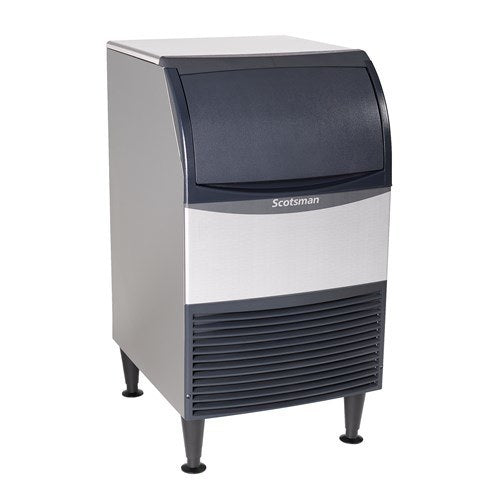

Scotsman CU0920MAX-1, 20" Air Cooled Medium Cube Undercounter Ice Machine, 100 Lb, 57 Lb Storage

Model specifics: up to 100 lbs per 24 hours · 57 lbs built-in storage · 20" wide · medium cube ice · air-cooled · 115/60/1

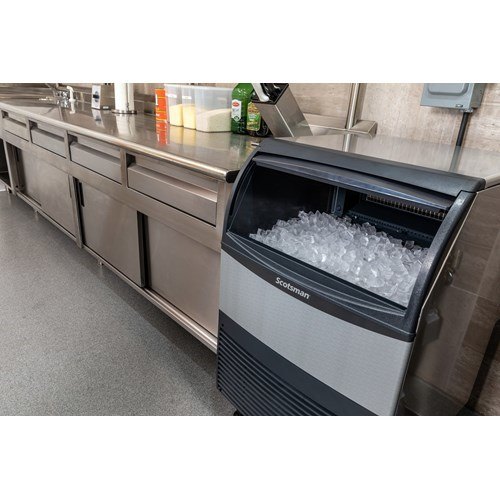

The CU0920MAX-1 is a 20-inch undercounter cuber that makes up to 100 pounds of ice a day and stores 57 pounds. The wider cabinet gives a bigger bin for restaurants, bars and break rooms that need more ice on hand.

It is air-cooled and front-breathing, so it can be built in under a counter with no side clearance; keep the front grille clear and the room between 50°F and 100°F.

It makes Scotsman medium cubes, 7/8" x 7/8" x 7/8". The full-size cube melts slowly and is the classic choice for mixed drinks and soft drinks.

It plugs into a standard 115 volt outlet on a 15 amp circuit.

Production is rated at 70°F air and 50°F water. At 90°F air and 70°F water it is rated for about 77 pounds a day and uses 8.07 kWh and 29 gallons of drinking water per 100 pounds of ice.

Features:

• Up to 100 lbs of ice per 24 hours (70°F air / 50°F water)
• 57 lbs of built-in ice storage
• About 77 lbs per day at 90°F air / 70°F water
• R290 hydrocarbon refrigerant
• Self-contained: no separate bin needed

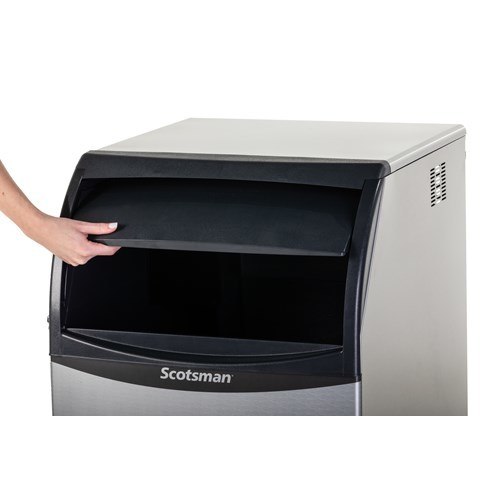

• Slide-back bin door for easy access to ice
• Front breathing, no side clearance required
• Optional floor mount kit for 34" ADA counter heights
• Ice scoop included

Specifications:

• Model: CU0920MAX-1
• Ice type: Medium Cube, 7/8" x 7/8" x 7/8"
• Ice production: up to 100 lbs / 24 hr (70°F air / 50°F water); about 77 lbs at 90°F / 70°F
• Storage capacity: 57 lbs
• Dimensions (W x D x H): 20" x 24" x 38"
• Electrical: 115/60/1, 15 amp maximum fuse or HACR breaker, cord connected
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 4,100 BTU/hr
• Energy use: 8.07 kWh per 100 lbs of ice (90°F / 70°F)
• Drinking water use: 29 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Shipping weight: 118 lbs
• Warranty: 3 Years parts and labor on all components.

Scotsman recommends water filtration on all ice machines; filters, floor mount kits and other accessories are sold separately. Residential installations carry a 1 year parts and labor warranty from Scotsman.
