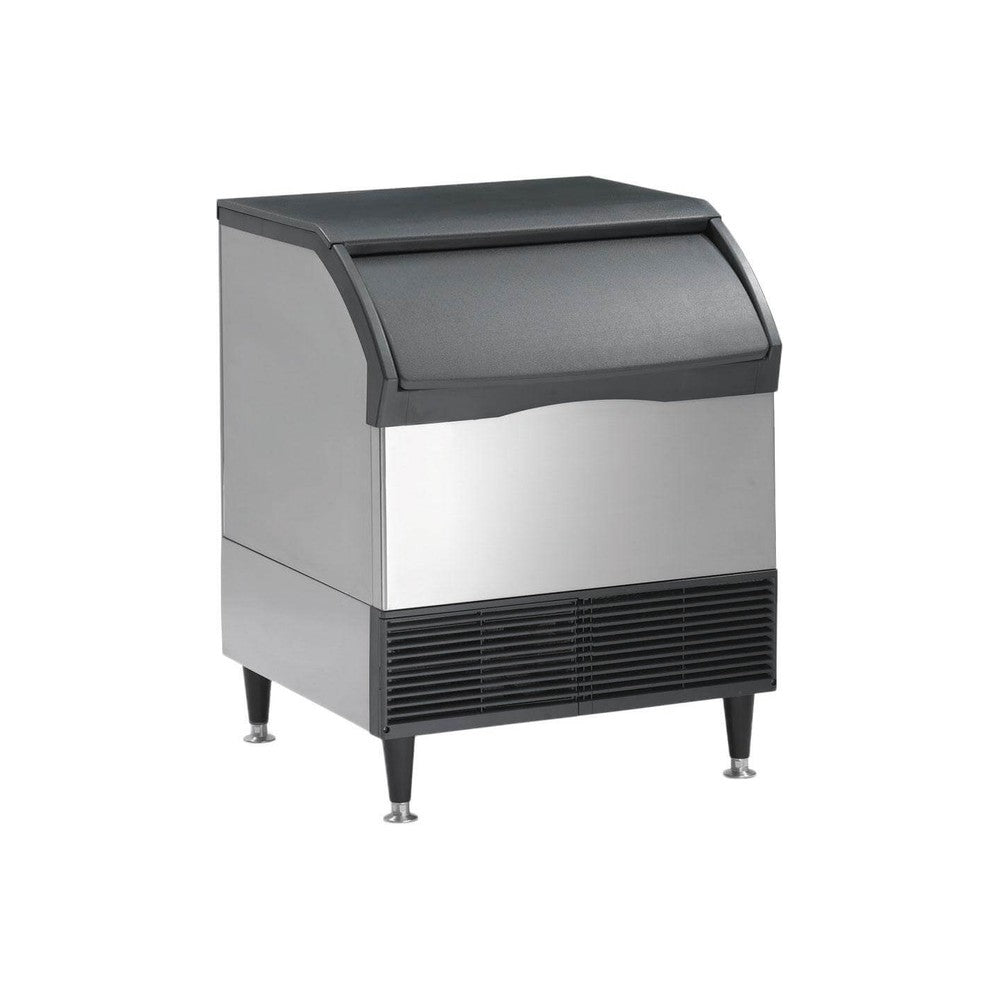

Scotsman CU3030SAX-1, 30" Air Cooled Small Cube Undercounter Ice Machine, 329 Lb, 110 Lb Storage

Model specifics: up to 329 lbs per 24 hours · 110 lbs built-in storage · 30" wide · small cube ice · air-cooled · 115/60/1

The CU3030SAX-1 is a 30-inch Prodigy-style undercounter that makes up to 329 pounds of ice a day and holds 110 pounds in its built-in bin, the most production and storage in the Scotsman undercounter line. It is a strong fit for busy bars, restaurants and hotels that need a self-contained machine under the counter.

It is air-cooled and front-breathing, so it can be built in under a counter with no side clearance; keep the front grille clear and the room between 50°F and 100°F.

It makes Scotsman small cubes, 7/8" x 7/8" x 3/8". The half-size cube packs tightly in the glass and cools drinks fast, a good choice for fountain drinks and blended drinks.

It plugs into a standard 115 volt outlet on a 15 amp circuit.

Production is rated at 70°F air and 50°F water. At 90°F air and 70°F water it is rated for about 230 pounds a day and uses 6.72 kWh and 20.4 gallons of drinking water per 100 pounds of ice.

Features

• Up to 329 lbs of ice per 24 hours (70°F air / 50°F water)
• 110 lbs of built-in ice storage
• About 230 lbs per day at 90°F air / 70°F water
• R290 hydrocarbon refrigerant
• Self-contained: no separate bin needed
• Front-accessible controls and utility connections
• Optional floor mount kit lowers overall height

Specifications

• Model: CU3030SAX-1
• Ice type: Small Cube, 7/8" x 7/8" x 3/8"
• Ice production: up to 329 lbs / 24 hr (70°F air / 50°F water); about 230 lbs at 90°F / 70°F
• Storage capacity: 110 lbs

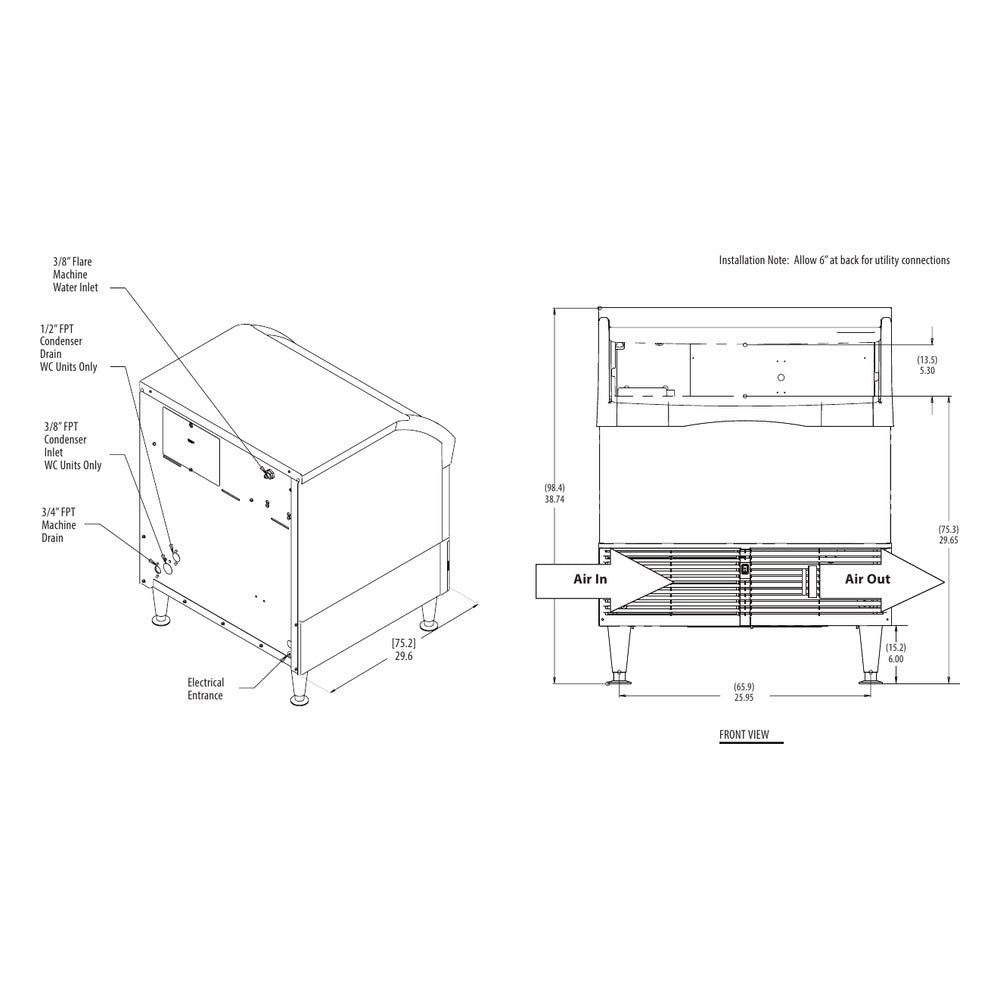

• Dimensions (W x D x H): 30" x 30" x 38.75"
• Electrical: 115/60/1, 15 amp maximum fuse or HACR breaker, cord connected
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 5,200 BTU/hr
• Energy use: 6.72 kWh per 100 lbs of ice (90°F / 70°F)
• Drinking water use: 20.4 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Shipping weight: 230 lbs
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

Scotsman recommends water filtration on all ice machines; filters, floor mount kits and other accessories are sold separately. Residential installations carry a 1 year parts and labor warranty from Scotsman.
