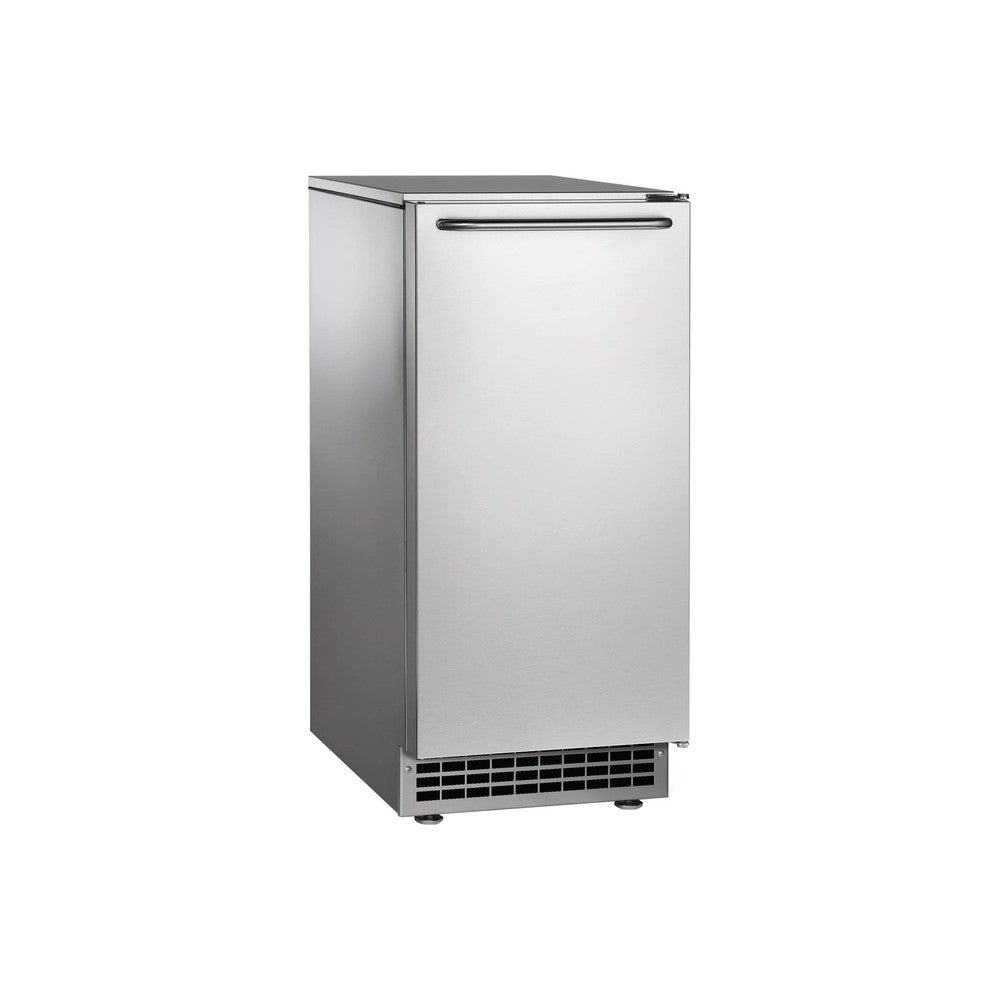

Scotsman CU50PAX-1, 15" Air Cooled Gourmet Cube Undercounter Ice Machine, 65 Lb, 26 Lb Storage

Model specifics: up to 65 lbs per 24 hours · 26 lbs built-in storage · 15" wide · gourmet cube ice · air-cooled · 115/60/1

The CU50PAX-1 is a 15-inch undercounter that makes up to 65 pounds a day of Scotsman's gourmet ice, a large, clear, top-hat cube, and stores 26 pounds behind a solid stainless door. It is popular in upscale bars, restaurants, offices and homes where ice presentation matters.

It is air-cooled and front-breathing, so it can be built in under a counter with no side clearance; keep the front grille clear and the room between 50°F and 100°F.

Gourmet cubes measure about 1" x 1-1/8" x 1-1/4": big, clear and slow to melt, so drinks stay cold and look premium.

The CU50PAX-1 adds a built-in drain pump with a 10-foot drain tube, so it can go where there is no floor drain nearby (the CU50GAX-1 is the gravity-drain version).

It plugs into a standard 115 volt outlet on a 15 amp circuit.

Production is rated at 70°F air and 50°F water. At 90°F air and 70°F water it is rated for about 49 pounds a day and uses 11.0 kWh and 29.8 gallons of drinking water per 100 pounds of ice.

Features

• Up to 65 lbs of ice per 24 hours (70°F air / 50°F water)
• 26 lbs of built-in ice storage
• About 49 lbs per day at 90°F air / 70°F water
• R290 hydrocarbon refrigerant
• Self-contained: no separate bin needed
• Solid stainless steel door
• Built-in drain pump (PAX model)

Specifications

• Model: CU50PAX-1
• Ice type: Gourmet Cube, 1" x 1-1/8" x 1-1/4"
• Ice production: up to 65 lbs / 24 hr (70°F air / 50°F water); about 49 lbs at 90°F / 70°F
• Storage capacity: 26 lbs

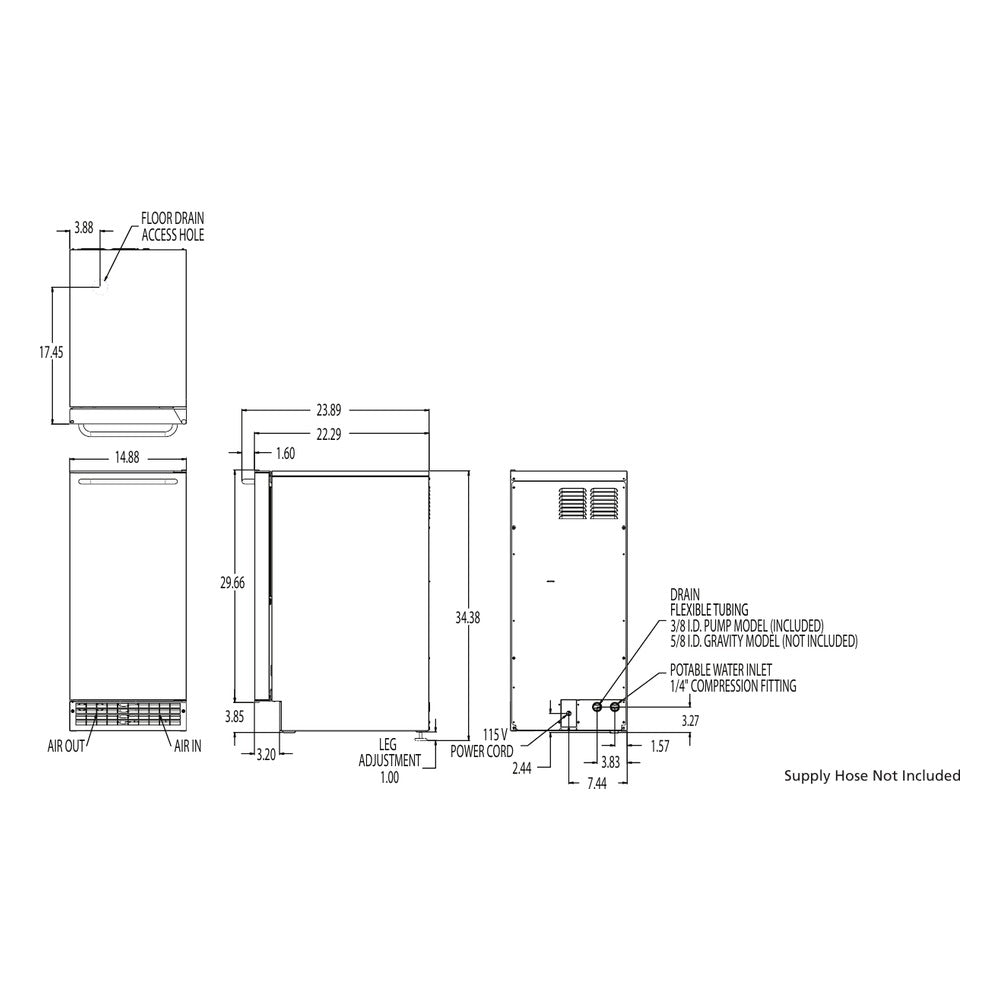

• Dimensions (W x D x H): 14.875" x 22" x 34.375"
• Electrical: 115/60/1, 15 amp maximum fuse or HACR breaker, cord connected
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 1,965 BTU/hr
• Energy use: 11.0 kWh per 100 lbs of ice (90°F / 70°F)
• Drinking water use: 29.8 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Shipping weight: 105 lbs
• Warranty: 1 Year parts and labor on all components. 5 Years parts on the compressor.

Scotsman recommends water filtration on all ice machines; filters, floor mount kits and other accessories are sold separately. Residential installations carry a 1 year parts and labor warranty from Scotsman.
