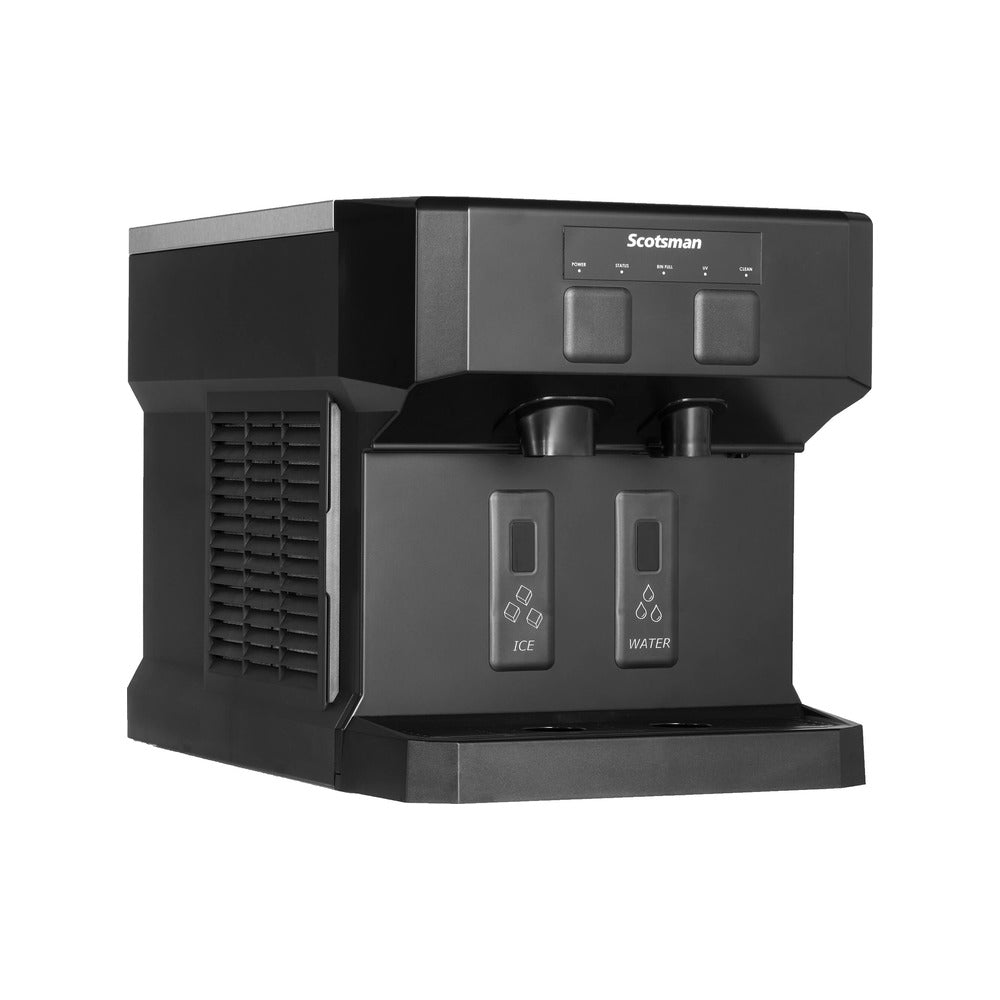

Scotsman HID207AX-1, 196 Lb Touch-Free Countertop Nugget Ice & Water Dispenser, 7 Lb Storage, Air Cooled

Model specifics: 196 lbs/24 hr · 7 lbs storage · 16.05" W x 23.44" D x 17.54" H · touch-free · nugget ice & water · 115/60/1

The Scotsman HID207AX-1 is the compact member of the Scotsman HID nugget ice and water family: just 17.54 inches tall, it fits under wall cabinets on break-room and office counters while still making up to 196 pounds of chewable nugget ice a day and keeping 7 pounds ready to dispense.

Touch-free dispensing: this is the touch-free version. An infrared sensor dispenses ice or water when a cup is placed under the chute, so nobody touches the machine, which cuts down on shared touch points in healthcare and public areas. If your users prefer to control the fill themselves, the push-button version is model HID207ABX-1.

Nugget ice is soft, chewable and slow-melting. It cools drinks quickly with little dilution, which is why hospitals, clinics and offices favor it.

• Internal UV-LED module treats the intake for clean ice and water
• AgION antimicrobial compound molded into key components
• AutoAlert indicator panel shows machine status from across the room
• SmoothStream water dispensing with illuminated dispense area reduces splashing
• ADA compliant dispensing area
• Ice-only configuration possible with the included snap-on panels
• Fully removable air filter, chutes, sink, grill and bin for cleaning
• Sealed, maintenance-free bearings

Installation: self-contained and air cooled, it plugs into a standard 115V outlet with the included 6 ft cord and NEMA 5-15P plug, and needs a 3/8" flare potable water inlet (20-80 psi) and a 3/4" FPT gravity drain. Allow 6 inches at the left, back and right for airflow and utilities; install indoors at 50-100°F air and 40-100°F water.

Scotsman warranty: 3 years parts and labor, plus 5 years parts on compressor and condenser for commercial installations (1 year parts and labor in residential applications).

Specifications

• Model: HID207AX-1
• Ice production: Up to 196 lbs per 24 hours (70°F air / 50°F water); 160 lbs at 90°F air / 70°F water
• Storage capacity: 7 lbs
• Ice type: Nugget
• Dispensing: Touch-free infrared sensor, ice and water
• Installation: Countertop
• Dimensions (W x D x H): 16.05" x 23.44" x 17.54"
• Condenser: Air cooled
• Electrical: 115/60/1, 15 A max fuse, 6 ft cord with NEMA 5-15P plug
• Energy: 4.90 kWh per 100 lbs
• Potable water: 12 gal per 100 lbs
• Heat rejection: 3,200 BTU/hr
• Refrigerant: R290
• Certifications: NSF, UL
• Shipping weight: 80 lbs
• Warranty: 3 years parts and labor; 5 years parts on compressor and condenser
