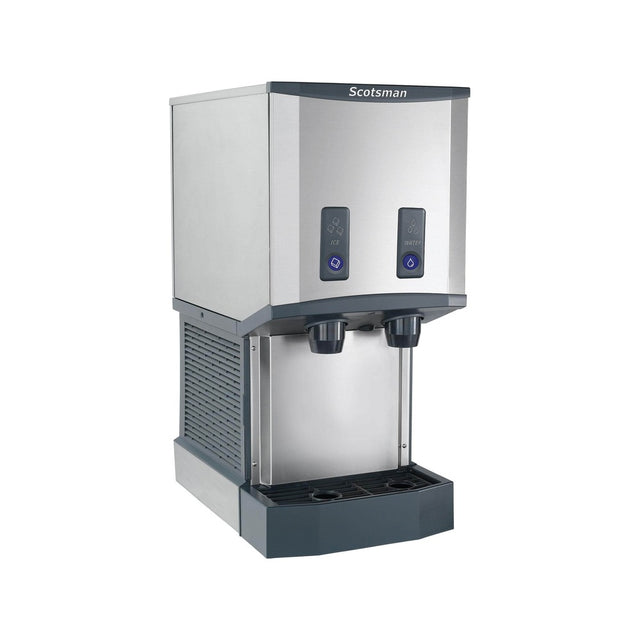

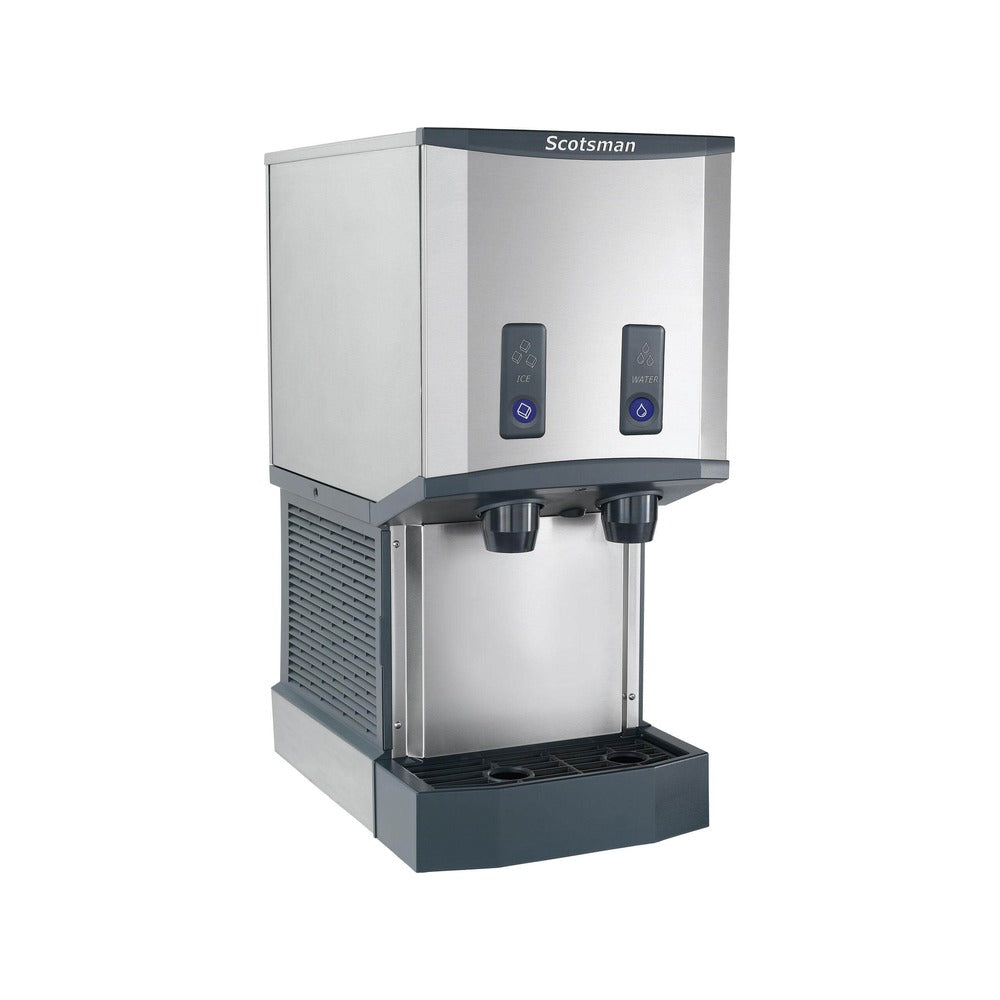

Scotsman HID312ABX-1, 320 Lb Push-Button Countertop Nugget Ice & Water Dispenser, 12 Lb Storage, Air Cooled

Model specifics: 320 lbs/24 hr · 12 lbs storage · 16.25" W x 24.38" D x 35" H · push-button · nugget ice & water · 115/60/1

The Scotsman HID312ABX-1 is a Meridian nugget ice and water dispenser that makes up to 320 pounds of chewable nugget ice a day and keeps 12 pounds in its bin. At 16.25 inches wide it suits break rooms, nurse stations and office pantries where counter space is limited.

Push-button dispensing: this is the push-button version. Separate antimicrobial buttons for ice and water let each user control exactly how much goes into the cup, which is quick and familiar for staff and guests. For hands-free operation, the touch-free sensor version is model HID312AX-1.

Nugget ice is soft, chewable and slow-melting. It cools drinks quickly with little dilution, which is why hospitals, clinics and offices favor it.

• AgION antimicrobial compound molded into key components
• Fully removable bin, spouts, air filter, sink and grill for easy cleaning
• Sealed refrigeration system and front-accessible removable air filter
• Sealed, maintenance-free bearings
• Stainless steel evaporator and exterior panels with a larger sink opening and dispensing area
• LED diagnostic lights and USB port for quick service and software updates
• Unit-specific QR code for service manuals and warranty history

Installation: self-contained and air cooled, it plugs into a standard 115V outlet with the included 7.5 ft cord and NEMA 5-15P plug, and needs a 3/8" flare potable water inlet (20-80 psi) and a 3/4" FPT gravity drain. Allow 6 inches at the left, back and right for airflow and utilities; install indoors at 50-100°F air and 40-100°F water. Where there is no counter, it sits on the matching Scotsman HST16-A (with locking door and shelf) or HST16B-A (basic) stand, sold separately. Optional 4" adjustable legs are also available.

Scotsman warranty: 3 years parts and labor, plus 5 years parts on compressor and condenser for commercial installations (1 year parts and labor in residential applications).

Specifications:

• Model: HID312ABX-1
• Ice production: Up to 320 lbs per 24 hours (70°F air / 50°F water); 245 lbs at 90°F air / 70°F water
• Storage capacity: 12 lbs
• Ice type: Nugget
• Dispensing: Push button, ice and water
• Installation: Countertop
• Dimensions (W x D x H): 16.25" x 24.38" x 35"
• Condenser: Air cooled
• Electrical: 115/60/1, 15 A max fuse, 7.5 ft cord with NEMA 5-15P plug
• Energy: 4.11 kWh per 100 lbs
• Potable water: 12 gal per 100 lbs
• Heat rejection: 3,200 BTU/hr
• Refrigerant: R290
• Certifications: NSF, UL
• Shipping weight: 183 lbs
• Warranty: 3 years parts and labor; 5 years parts on compressor and condenser
