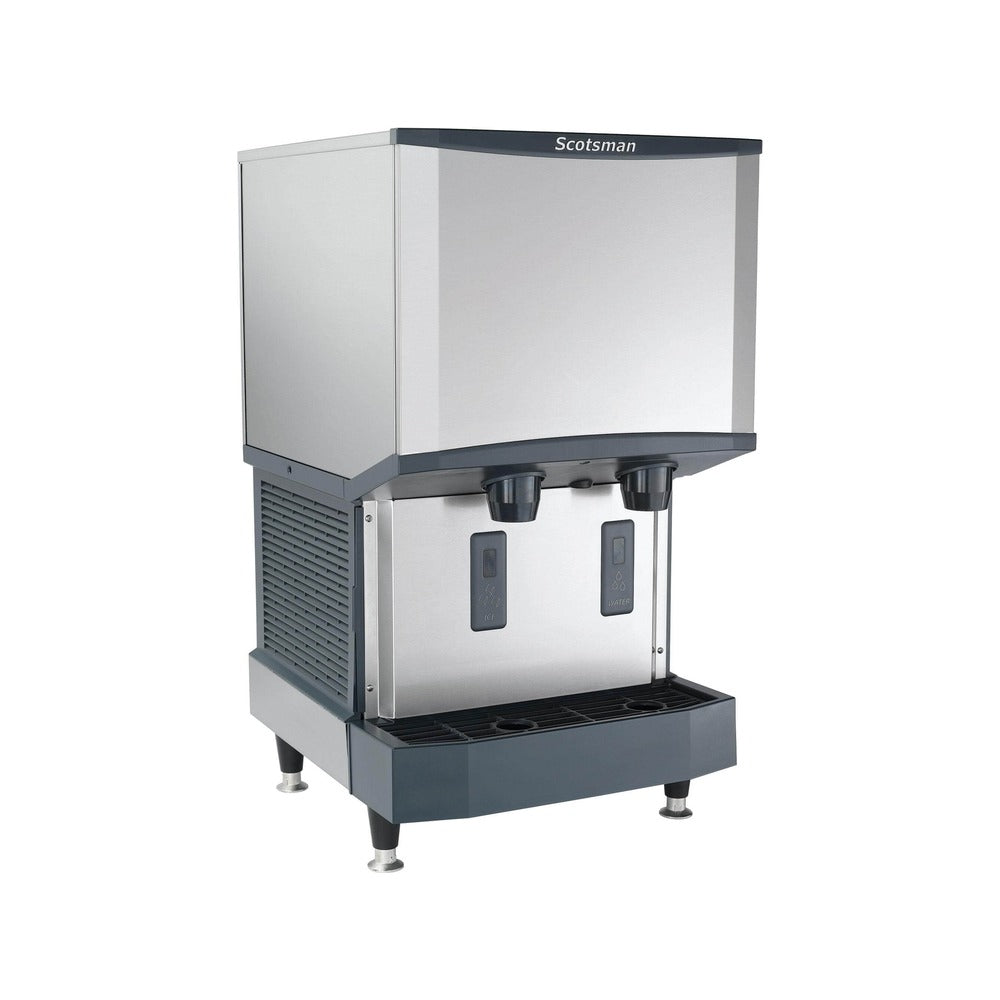

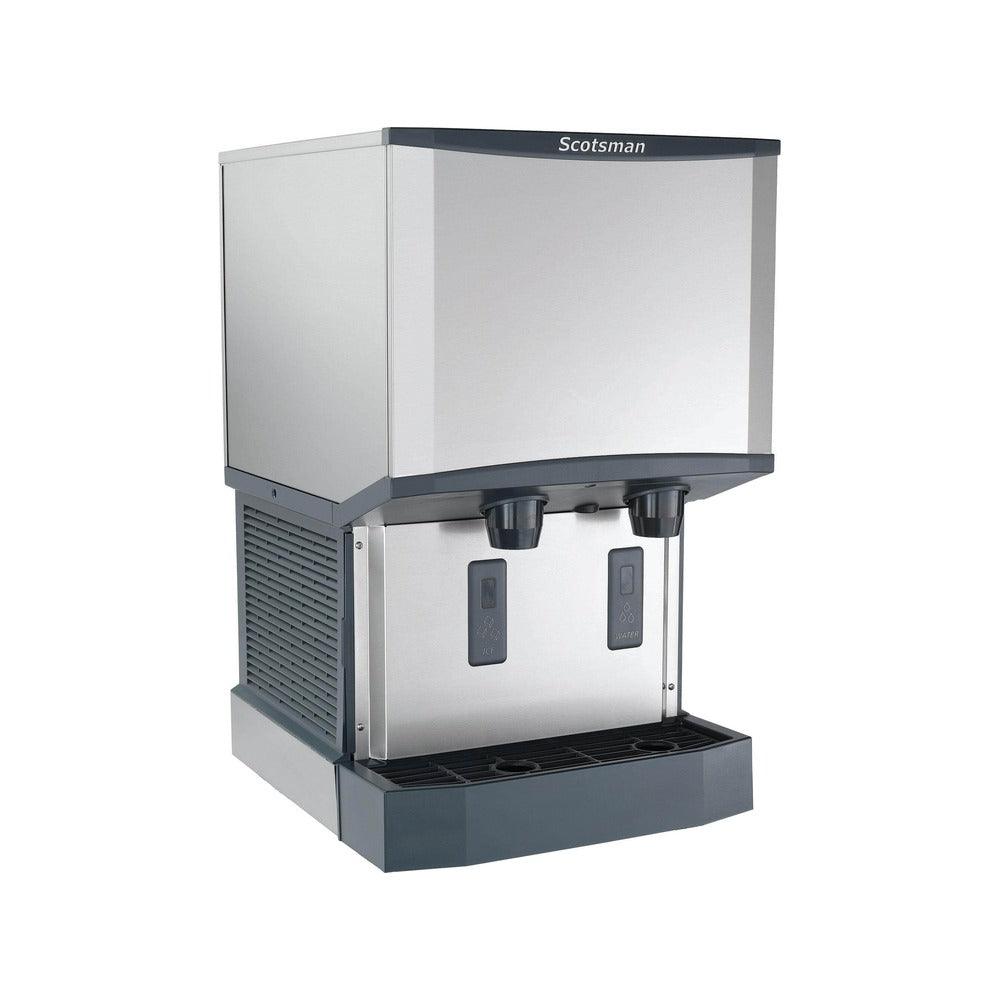

Scotsman HID525AX-1, 500 Lb Touch-Free Countertop Nugget Ice & Water Dispenser, 25 Lb Storage, Air Cooled

Model specifics: 500 lbs/24 hr · 25 lbs storage · 21.25" W x 24.38" D x 35" H · touch-free · nugget ice & water · 115/60/1

The Scotsman HID525AX-1 is a Meridian nugget ice and water dispenser built for heavier traffic: it makes up to 500 pounds of chewable nugget ice a day and stores 25 pounds, enough for busy hospital floors, cafeterias and large break rooms.

Touch-free dispensing: this is the touch-free version. An infrared sensor dispenses ice or water when a cup is placed under the chute, so nobody touches the machine, which cuts down on shared touch points in healthcare and public areas. If your users prefer to control the fill themselves, the push-button version is model HID525ABX-1.

Nugget ice is soft, chewable and slow-melting. It cools drinks quickly with little dilution, which is why hospitals, clinics and offices favor it.

• AgION antimicrobial compound molded into key components
• Fully removable bin, spouts, air filter, sink and grill for easy cleaning
• Sealed refrigeration system and front-accessible removable air filter
• Sealed, maintenance-free bearings
• Stainless steel evaporator and exterior panels with a larger sink opening and dispensing area
• LED diagnostic lights and USB port for quick service and software updates
• Unit-specific QR code for service manuals and warranty history
• SmoothStream water dispensing reduces splashing

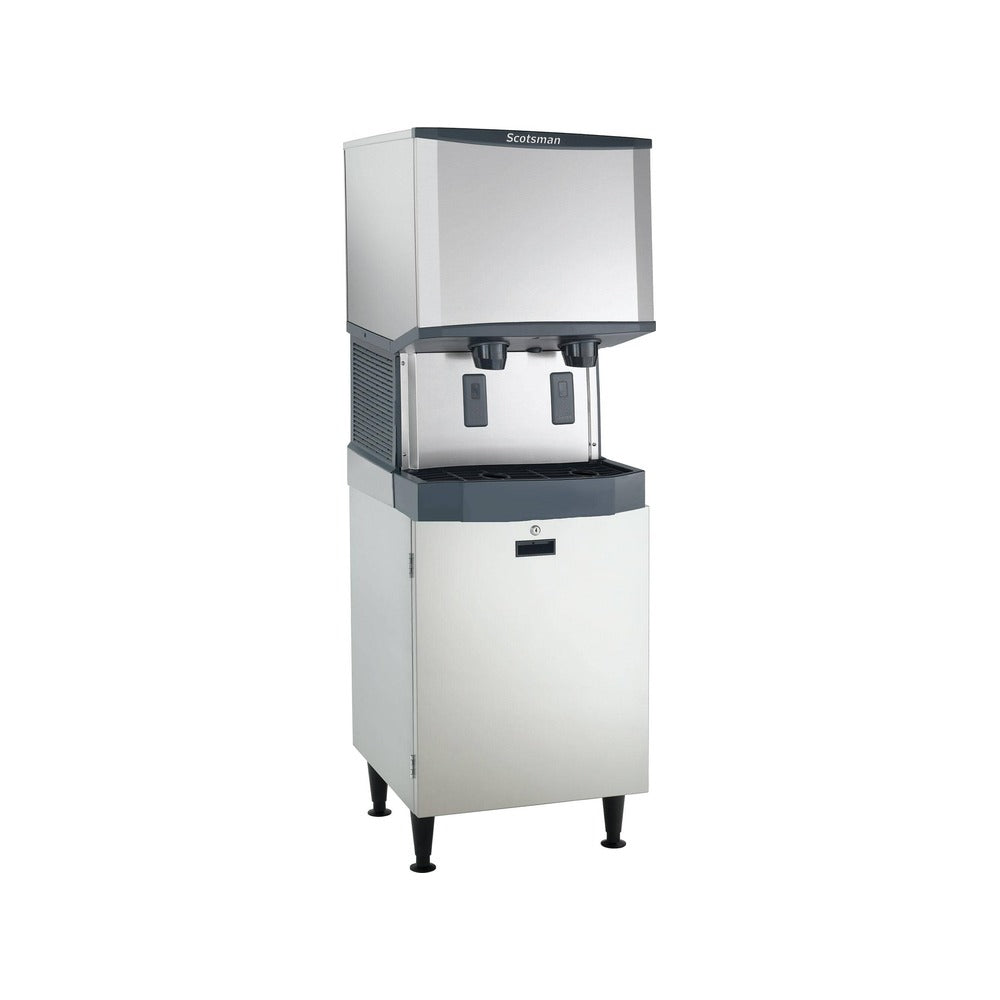

Installation: self-contained and air cooled, it plugs into a standard 115V outlet with the included 7.5 ft cord and NEMA 5-15P plug, and needs a 3/8" flare potable water inlet (20-80 psi) and a 3/4" FPT gravity drain. Allow 6 inches at the left, back and right for airflow and utilities; install indoors at 50-100°F air and 40-100°F water. Where there is no counter, it sits on the matching Scotsman HST21-A (with locking door and shelf) or HST21B-A (basic) stand, sold separately. Optional 4" adjustable legs are also available.

Scotsman warranty: 3 years parts and labor, plus 5 years parts on compressor and condenser for commercial installations (1 year parts and labor in residential applications).

Specifications

• Model: HID525AX-1
• Ice production: Up to 500 lbs per 24 hours (70°F air / 50°F water); 380 lbs at 90°F air / 70°F water
• Storage capacity: 25 lbs
• Ice type: Nugget
• Dispensing: Touch-free infrared sensor, ice and water
• Installation: Countertop
• Dimensions (W x D x H): 21.25" x 24.38" x 35"
• Condenser: Air cooled
• Electrical: 115/60/1, 15 A max fuse, 7.5 ft cord with NEMA 5-15P plug
• Energy: 4.18 kWh per 100 lbs
• Potable water: 12 gal per 100 lbs
• Heat rejection: 6,800 BTU/hr
• Refrigerant: R290
• Certifications: NSF, UL
• Shipping weight: 208 lbs
• Warranty: 3 years parts and labor; 5 years parts on compressor and condenser
