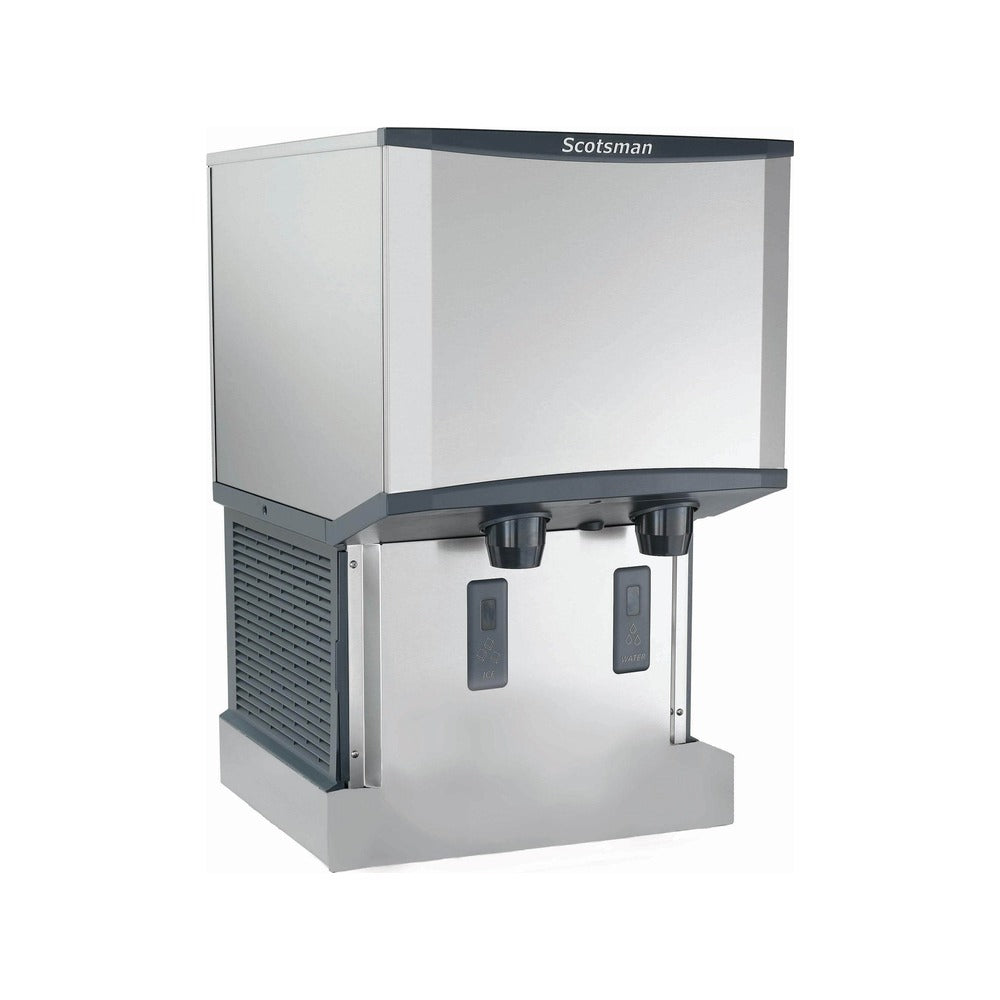

Scotsman HID525AWX-1, 500 Lb Touch-Free Wall Mount Nugget Ice & Water Dispenser, 25 Lb Storage, Air Cooled

Model specifics: 500 lbs/24 hr · 25 lbs storage · 23.25" W x 24.38" D x 35" H · touch-free wall mount · nugget ice & water · 115/60/1

The Scotsman HID525AWX-1 is a Meridian nugget ice and water dispenser built for heavier traffic: it makes up to 500 pounds of chewable nugget ice a day and stores 25 pounds, enough for busy hospital floors, cafeterias and large break rooms.

Wall-mount, touch-free dispensing: this is the wall-mount version. It hangs on the wall with a mounting bracket and is designed to be installed over an existing sink, which frees the counter entirely. It does not have, and cannot accept, a drip tray, so plan the install over a sink or drain. Dispensing is by touch-free infrared sensor. For a countertop install, choose HID525AX-1 (touch-free) or HID525ABX-1 (push button).

Nugget ice is soft, chewable and slow-melting. It cools drinks quickly with little dilution, which is why hospitals, clinics and offices favor it.

• AgION antimicrobial compound molded into key components
• Fully removable bin, spouts, air filter, sink and grill for easy cleaning
• Sealed refrigeration system and front-accessible removable air filter
• Sealed, maintenance-free bearings
• Stainless steel evaporator and exterior panels with a larger sink opening and dispensing area
• LED diagnostic lights and USB port for quick service and software updates
• Unit-specific QR code for service manuals and warranty history
• SmoothStream water dispensing reduces splashing

Installation: self-contained and air cooled, it plugs into a standard 115V outlet with the included 7.5 ft cord and NEMA 5-15P plug, and needs a 3/8" flare potable water inlet (20-80 psi) and a 3/4" FPT gravity drain. Allow 6 inches at the left, back and right for airflow and utilities; install indoors at 50-100°F air and 40-100°F water.

Scotsman warranty: 3 years parts and labor, plus 5 years parts on compressor and condenser for commercial installations (1 year parts and labor in residential applications).

Specifications

• Model: HID525AWX-1
• Ice production: Up to 500 lbs per 24 hours (70°F air / 50°F water); 380 lbs at 90°F air / 70°F water
• Storage capacity: 25 lbs
• Ice type: Nugget
• Dispensing: Touch-free infrared sensor, ice and water; wall mount, no drip tray
• Installation: Wall mount over existing sink
• Dimensions (W x D x H): 23.25" x 24.38" x 35" including wall bracket
• Condenser: Air cooled
• Electrical: 115/60/1, 15 A max fuse, 7.5 ft cord with NEMA 5-15P plug
• Energy: 4.18 kWh per 100 lbs
• Potable water: 12 gal per 100 lbs
• Heat rejection: 6,800 BTU/hr
• Refrigerant: R290
• Certifications: NSF, UL
• Shipping weight: 213 lbs
• Warranty: 3 years parts and labor; 5 years parts on compressor and condenser
