Scotsman MC0322MAX-1, 22" Prodigy ELITE Air Cooled Medium Cube Ice Machine, 362 Lb

Model specifics: up to 362 lbs per 24 hours · 22" wide · 7/8" x 7/8" x 7/8" medium cube · air-cooled · 115/60/1 · ice machine only, bin sold separately

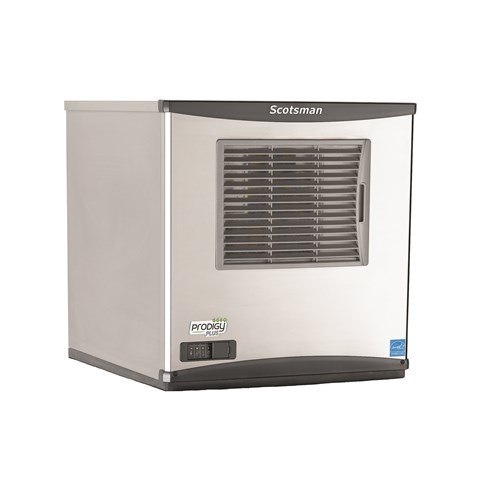

The MC0322MAX-1 is the smallest Prodigy ELITE cube head, a 22-inch-wide, 23-inch-tall unit that makes up to 362 pounds of ice a day. It is a good fit for cafes, small bars, offices and break rooms where a compact machine is enough, and it sits neatly on a 22-inch Scotsman bin.

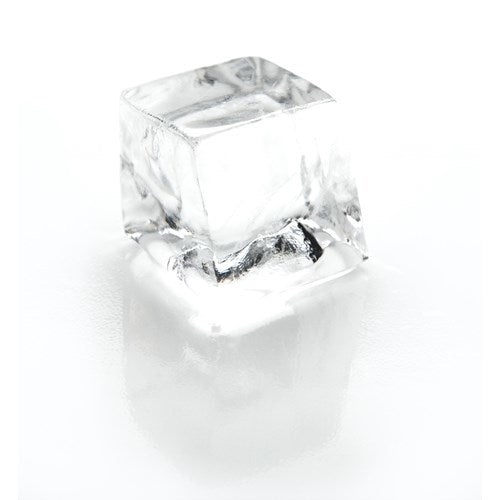

This model makes Scotsman medium cubes, 7/8" x 7/8" x 7/8". The full-size cube melts slowly, so it is a favorite for soft drinks, cocktails and bagged ice, and it holds up well in dispensers.

It is air-cooled, so no condenser water line is needed. Removable front-facing air filters make cleaning quick; leave room around the unit for air flow and keep the room between 50°F and 100°F. At 90°F air and 70°F water it is rated for about 248 pounds a day, and it uses 5.99 kWh and 20.0 gallons of drinking water per 100 pounds of ice.

It runs on standard 115 volt single-phase power, so it can go in most locations without new high-voltage wiring.

Scotsman lists the B322S ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features:

• Up to 362 lbs of ice per 24 hours (70°F air / 50°F water)
• About 248 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Removable, front-facing air filters for fast cleaning
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R290 refrigerant

Specifications:

• Model: MC0322MAX-1
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Medium Cube, 7/8" x 7/8" x 7/8"
• Ice production: up to 362 lbs / 24 hr (70°F air / 50°F water); about 248 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 22" x 24" x 23"
• Electrical: 115/60/1, 10.3 amp minimum circuit ampacity, 15 amp maximum fuse
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 5,200 BTU/hr
• Energy use: 5.99 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 20.0 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 155 lbs
• Exterior: Stainless steel
• Compatible bins: B322S
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

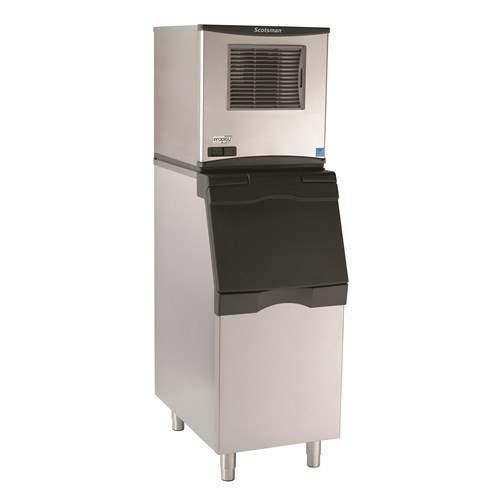

Matching Scotsman bins and kits: the 22" B322S (370 lb) mounts directly with no kit; a 30" B330P, B530P or B530S bin needs the KBT27 bin top kit.

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
