Scotsman MC0330MAX-32, 30" Prodigy ELITE Air Cooled Medium Cube Ice Machine, 365 Lb

Model specifics: up to 365 lbs per 24 hours · 30" wide · 7/8" x 7/8" x 7/8" medium cube · air-cooled · 208-230/60/1 · ice machine only, bin sold separately

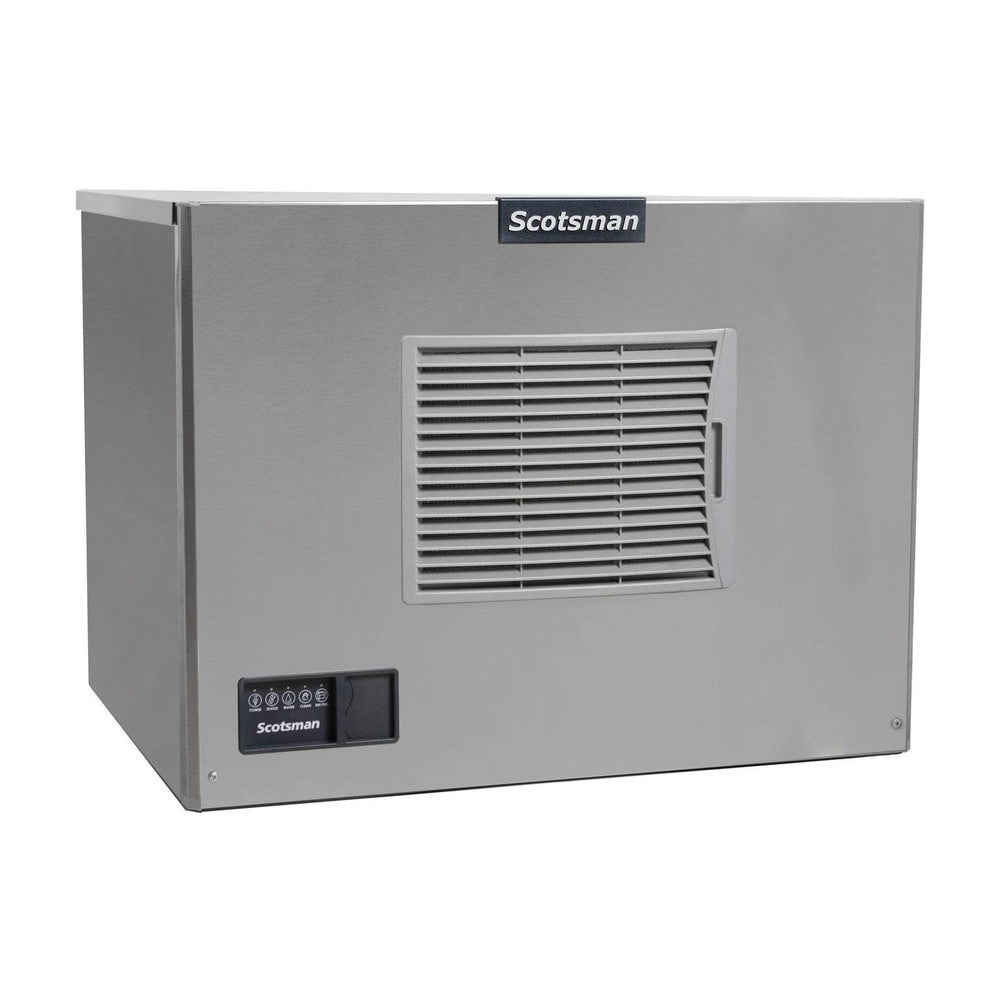

The MC0330MAX-32 puts Prodigy ELITE ice-making in a 30-inch-wide, 23-inch-tall cabinet that makes up to 365 pounds of ice a day. Its low profile and standard 30-inch footprint make it an easy match for 30-inch bins and many dispensers in restaurants, coffee shops and convenience stores.

This model makes Scotsman medium cubes, 7/8" x 7/8" x 7/8". The full-size cube melts slowly, so it is a favorite for soft drinks, cocktails and bagged ice, and it holds up well in dispensers.

It is air-cooled, so no condenser water line is needed. Removable front-facing air filters make cleaning quick; leave room around the unit for air flow and keep the room between 50°F and 100°F. At 90°F air and 70°F water it is rated for about 283 pounds a day, and it uses 5.64 kWh and 19.0 gallons of drinking water per 100 pounds of ice.

It runs on 208-230 volt single-phase power, the common choice for commercial kitchens with a dedicated 208-230V circuit.

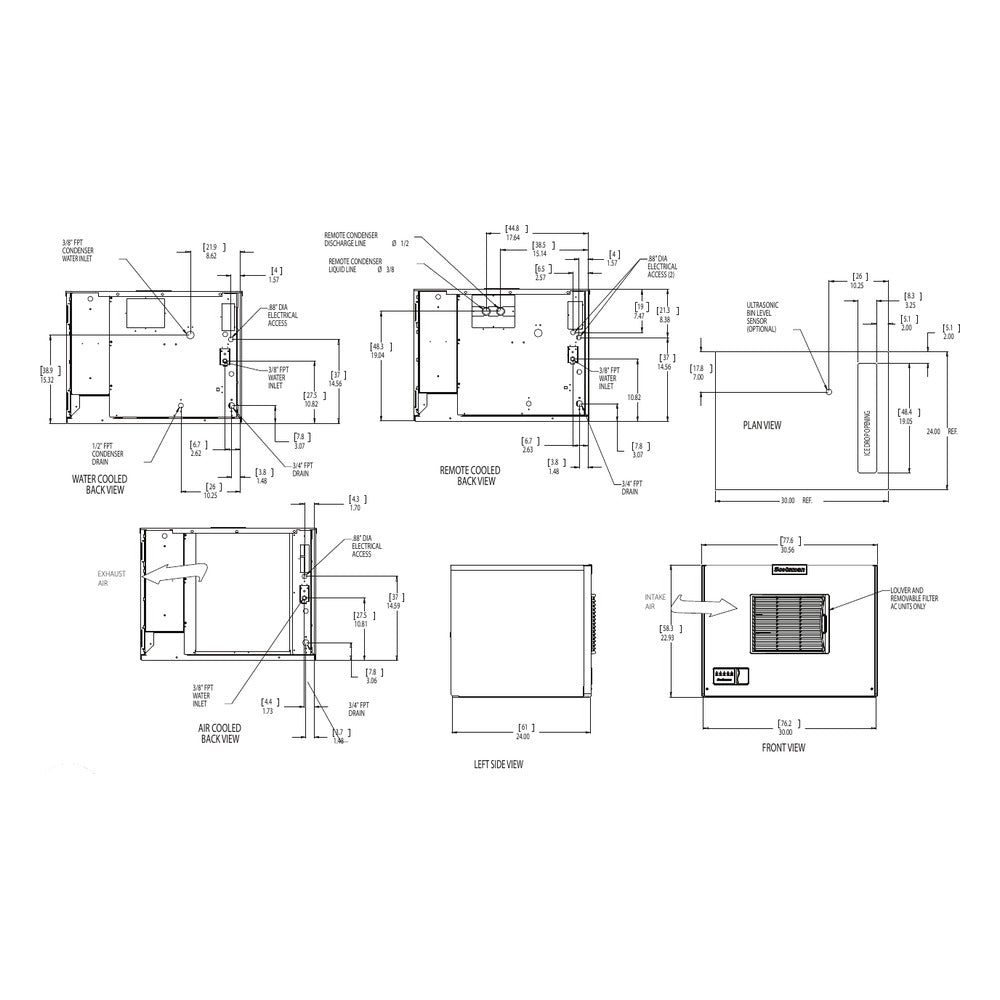

Scotsman lists the B330P and B530S/B530P ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features

• Up to 365 lbs of ice per 24 hours (70°F air / 50°F water)
• About 283 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Removable, front-facing air filters for fast cleaning
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R290 refrigerant

Specifications

• Model: MC0330MAX-32
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Medium Cube, 7/8" x 7/8" x 7/8"
• Ice production: up to 365 lbs / 24 hr (70°F air / 50°F water); about 283 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 30" x 24" x 23"
• Electrical: 208-230/60/1, 5.5 amp minimum circuit ampacity, 15 amp maximum fuse
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 5,200 BTU/hr
• Energy use: 5.64 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 19.0 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 155 lbs
• Exterior: Stainless steel
• Compatible bins: B330P and B530S/B530P
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

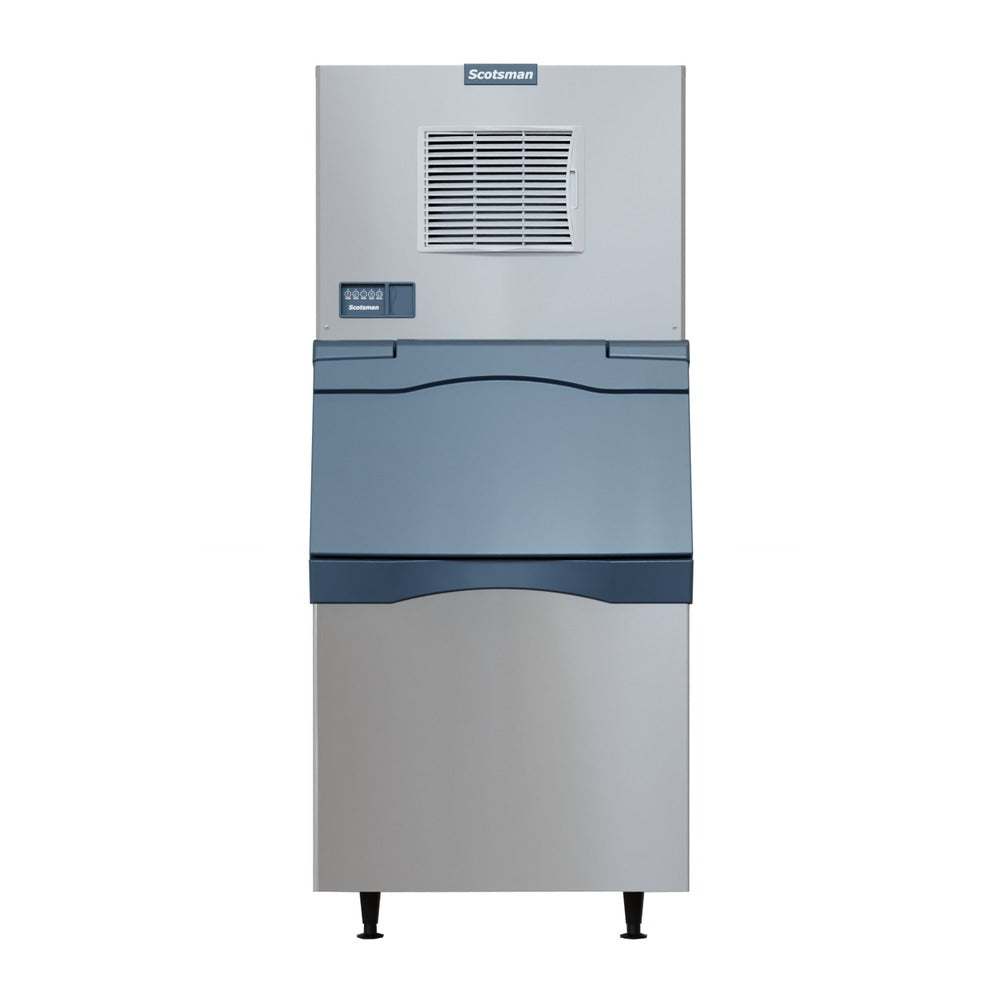

Matching Scotsman bins: the 30" B330P (344 lb), B530P or B530S (536 lb) mount directly with no kit.

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
