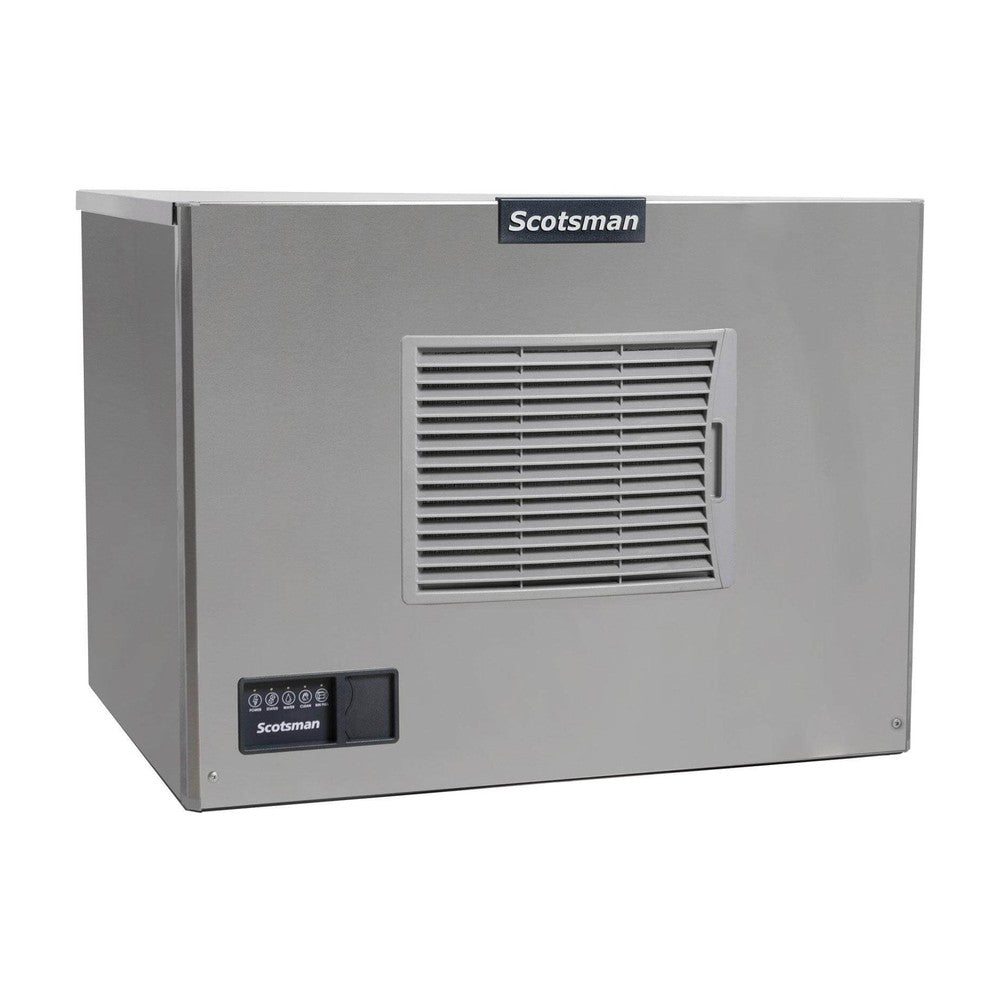

Scotsman MC0630SAX-1, 30" Prodigy ELITE Air Cooled Small Cube Ice Machine, 582 Lb

Model specifics: up to 582 lbs per 24 hours · 30" wide · 7/8" x 7/8" x 3/8" small cube · air-cooled · 115/60/1 · ice machine only, bin sold separately

The MC0630SAX-1 is the highest-output 23-inch-tall Prodigy ELITE model, making up to 582 pounds of ice a day in a 30-inch-wide cabinet. It suits busy restaurants, bars and hotels that want more ice without moving up to a taller head.

This model makes Scotsman small cubes, 7/8" x 7/8" x 3/8". The thinner half-size cube packs tightly in the glass, cools drinks quickly and is easy to blend, which makes it a good choice for fountain drinks, blended drinks and healthcare use.

It is air-cooled, so no condenser water line is needed. Removable front-facing air filters make cleaning quick; leave room around the unit for air flow and keep the room between 50°F and 100°F. At 90°F air and 70°F water it is rated for about 479 pounds a day, and it uses 5.18 kWh and 17.6 gallons of drinking water per 100 pounds of ice.

It runs on standard 115 volt single-phase power, so it can go in most locations without new high-voltage wiring.

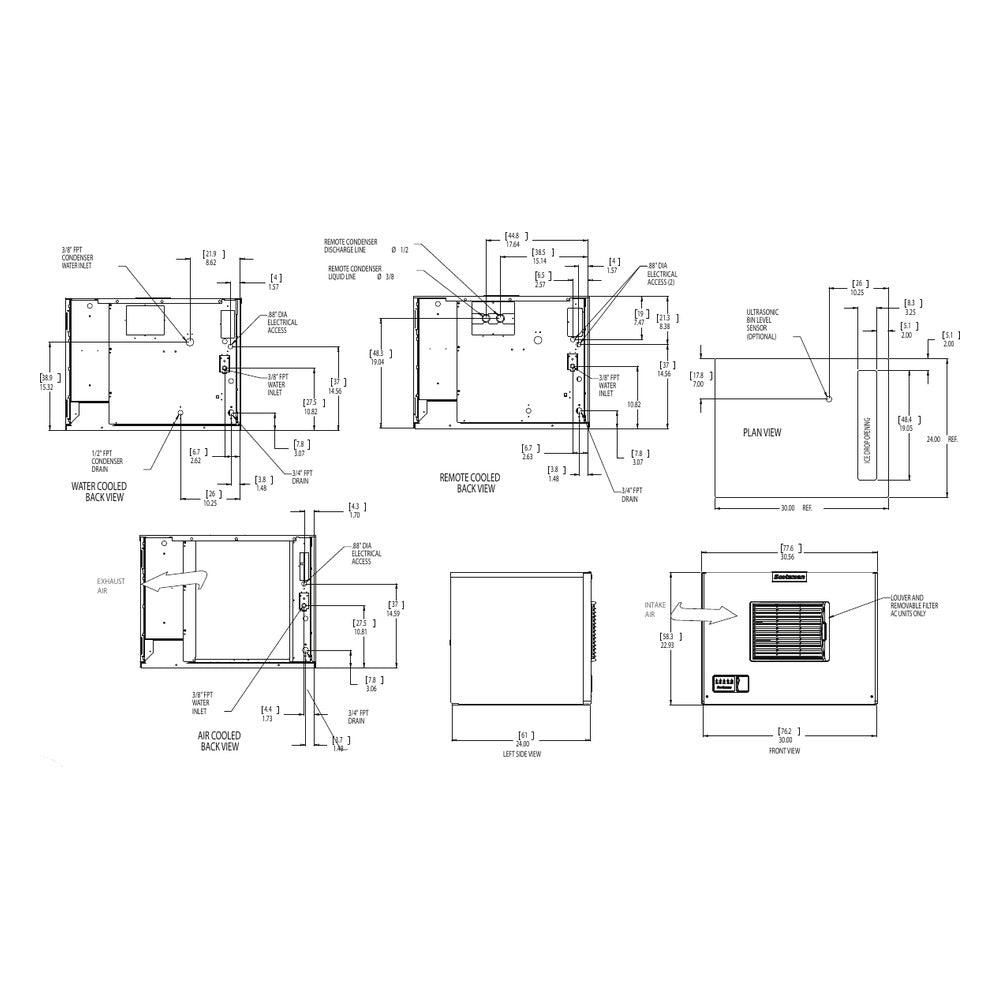

Scotsman lists the B330P, B530S/B530P and B842S ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features

• Up to 582 lbs of ice per 24 hours (70°F air / 50°F water)
• About 479 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Removable, front-facing air filters for fast cleaning
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R290 refrigerant

Specifications

• Model: MC0630SAX-1
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Small Cube, 7/8" x 7/8" x 3/8"
• Ice production: up to 582 lbs / 24 hr (70°F air / 50°F water); about 479 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 30" x 24" x 23"
• Electrical: 115/60/1, 18.3 amp minimum circuit ampacity, 20 amp maximum fuse
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 12,700 BTU/hr
• Energy use: 5.18 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 17.6 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 190 lbs
• Exterior: Stainless steel
• Compatible bins: B330P, B530S/B530P and B842S
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

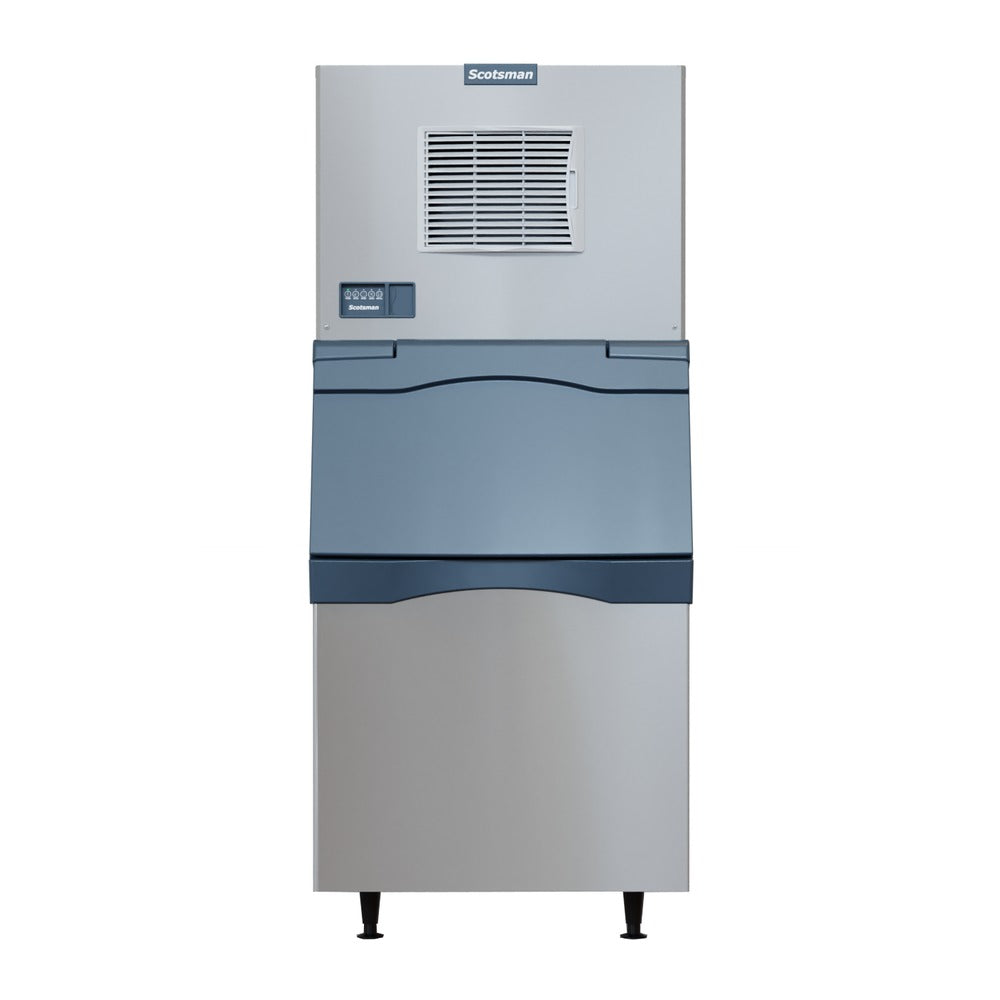

Matching Scotsman bins and kits: the 30" B330P (344 lb), B530P or B530S (536 lb) mount directly; the 42" B842S (778 lb) needs the KBT29 bin top kit.

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
