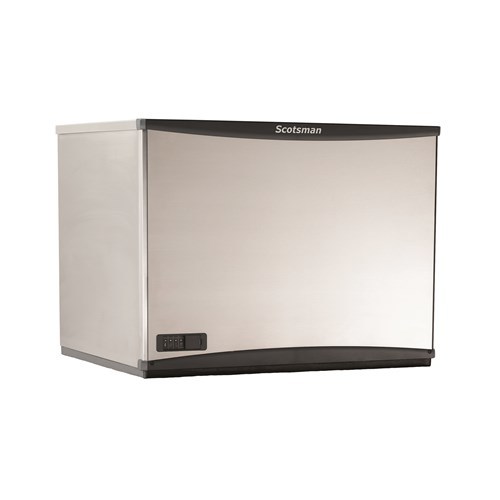

Scotsman MC0630SWX-32, 30" Prodigy ELITE Water Cooled Small Cube Ice Machine, 603 Lb

Model specifics: up to 603 lbs per 24 hours · 30" wide · 7/8" x 7/8" x 3/8" small cube · water-cooled · 208-230/60/1 · ice machine only, bin sold separately

The MC0630SWX-32 is the highest-output 23-inch-tall Prodigy ELITE model, making up to 603 pounds of ice a day in a 30-inch-wide cabinet. It suits busy restaurants, bars and hotels that want more ice without moving up to a taller head.

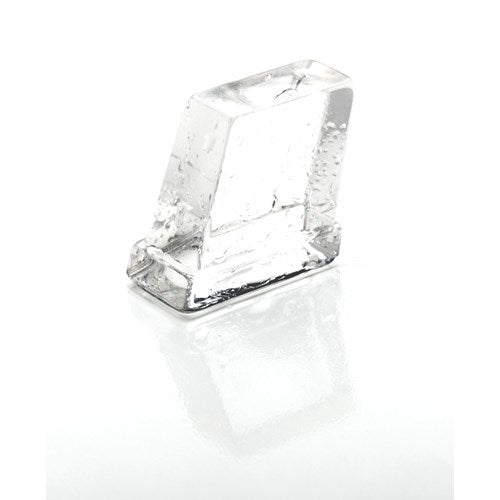

This model makes Scotsman small cubes, 7/8" x 7/8" x 3/8". The thinner half-size cube packs tightly in the glass, cools drinks quickly and is easy to blend, which makes it a good choice for fountain drinks, blended drinks and healthcare use.

It is water-cooled, so the condenser uses water instead of room air. That keeps heat out of the kitchen or bar and holds production steady in hot or poorly ventilated spaces. It needs a separate condenser water supply and drain; the condenser uses about 155.0 gallons per 100 pounds of ice (90°F air / 70°F water), plus 18.0 gallons of drinking water. At 90°F air and 70°F water it is rated for about 532 pounds a day.

It runs on 208-230 volt single-phase power, the common choice for commercial kitchens with a dedicated 208-230V circuit.

Scotsman lists the B330P, B530S/B530P and B842S ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features:

• Up to 603 lbs of ice per 24 hours (70°F air / 50°F water)
• About 532 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R290 refrigerant

Specifications:

• Model: MC0630SWX-32
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Small Cube, 7/8" x 7/8" x 3/8"
• Ice production: up to 603 lbs / 24 hr (70°F air / 50°F water); about 532 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 30" x 24" x 23"
• Electrical: 208-230/60/1, 15 amp maximum fuse
• Condenser: Water-cooled
• Refrigerant: R290
• Heat rejection: 12,700 BTU/hr
• Energy use: 5.35 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 18.0 gal per 100 lbs of ice
• Condenser water use: 155.0 gal per 100 lbs of ice (90°F air / 70°F water)
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 190 lbs
• Exterior: Stainless steel
• Compatible bins: B330P, B530S/B530P and B842S
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

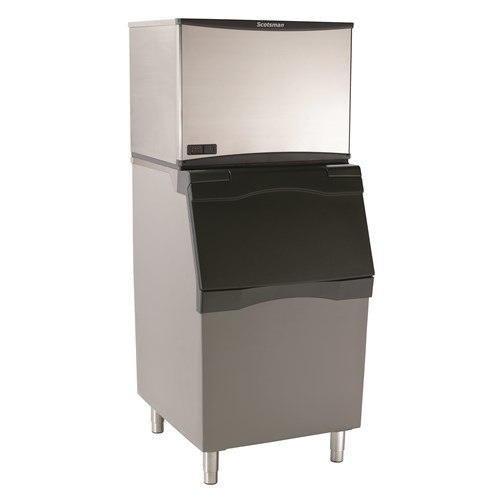

Matching Scotsman bins and kits: the 30" B330P (344 lb), B530P or B530S (536 lb) mount directly; the 42" B842S (778 lb) needs the KBT29 bin top kit.

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
