Scotsman MC0722MAX-32, 22" Prodigy ELITE Air Cooled Medium Cube Ice Machine, 734 Lb

Model specifics: up to 734 lbs per 24 hours · 22" wide · 7/8" x 7/8" x 7/8" medium cube · air-cooled · 208-230/60/1 · ice machine only, bin sold separately

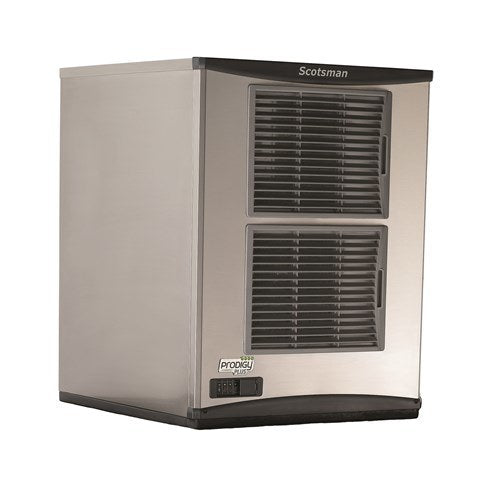

The MC0722MAX-32 is a 22-inch-wide, 29-inch-tall Prodigy ELITE head rated for up to 734 pounds of ice a day, one of the most productive narrow machines Scotsman makes. It is built for tight spaces in busy bars, kitchens and healthcare settings.

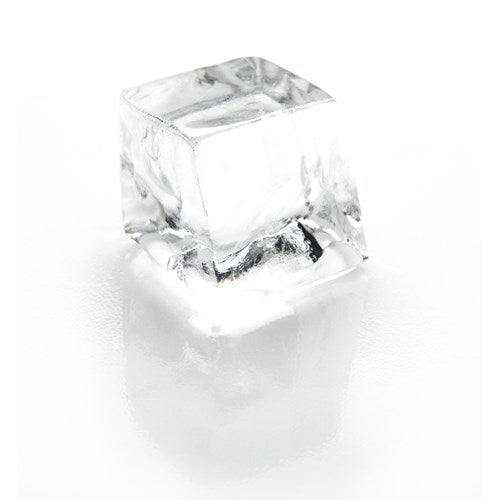

This model makes Scotsman medium cubes, 7/8" x 7/8" x 7/8". The full-size cube melts slowly, so it is a favorite for soft drinks, cocktails and bagged ice, and it holds up well in dispensers.

It is air-cooled, so no condenser water line is needed. Removable front-facing air filters make cleaning quick; leave room around the unit for air flow and keep the room between 50°F and 100°F. At 90°F air and 70°F water it is rated for about 525 pounds a day, and it uses 5.03 kWh and 17.1 gallons of drinking water per 100 pounds of ice.

It runs on 208-230 volt single-phase power, the common choice for commercial kitchens with a dedicated 208-230V circuit.

Scotsman lists the B842S and B948S ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features:

• Up to 734 lbs of ice per 24 hours (70°F air / 50°F water)
• About 525 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Removable, front-facing air filters for fast cleaning
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R290 refrigerant

Specifications:

• Model: MC0722MAX-32
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Medium Cube, 7/8" x 7/8" x 7/8"
• Ice production: up to 734 lbs / 24 hr (70°F air / 50°F water); about 525 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 22" x 24" x 29"
• Electrical: 208-230/60/1, 9.7 amp minimum circuit ampacity, 15 amp maximum fuse
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 12,750 BTU/hr
• Energy use: 5.03 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 17.1 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 189 lbs
• Exterior: Stainless steel
• Compatible bins: B842S and B948S
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

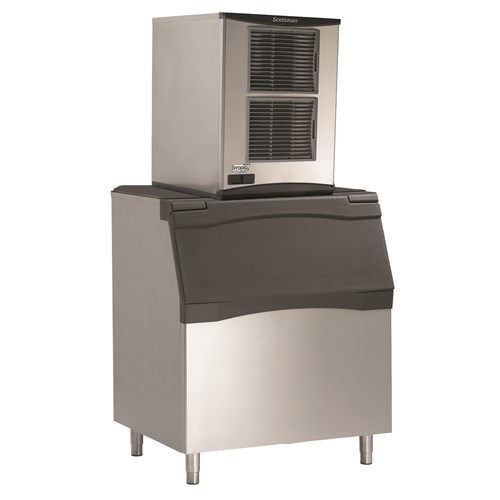

Matching Scotsman bins and kits: the 42" B842S (778 lb) with the KBT39 bin top kit, or the 48" B948S (893 lb) with the KBT38 kit (use the KBT38-2X when two 22" heads sit side by side).

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
