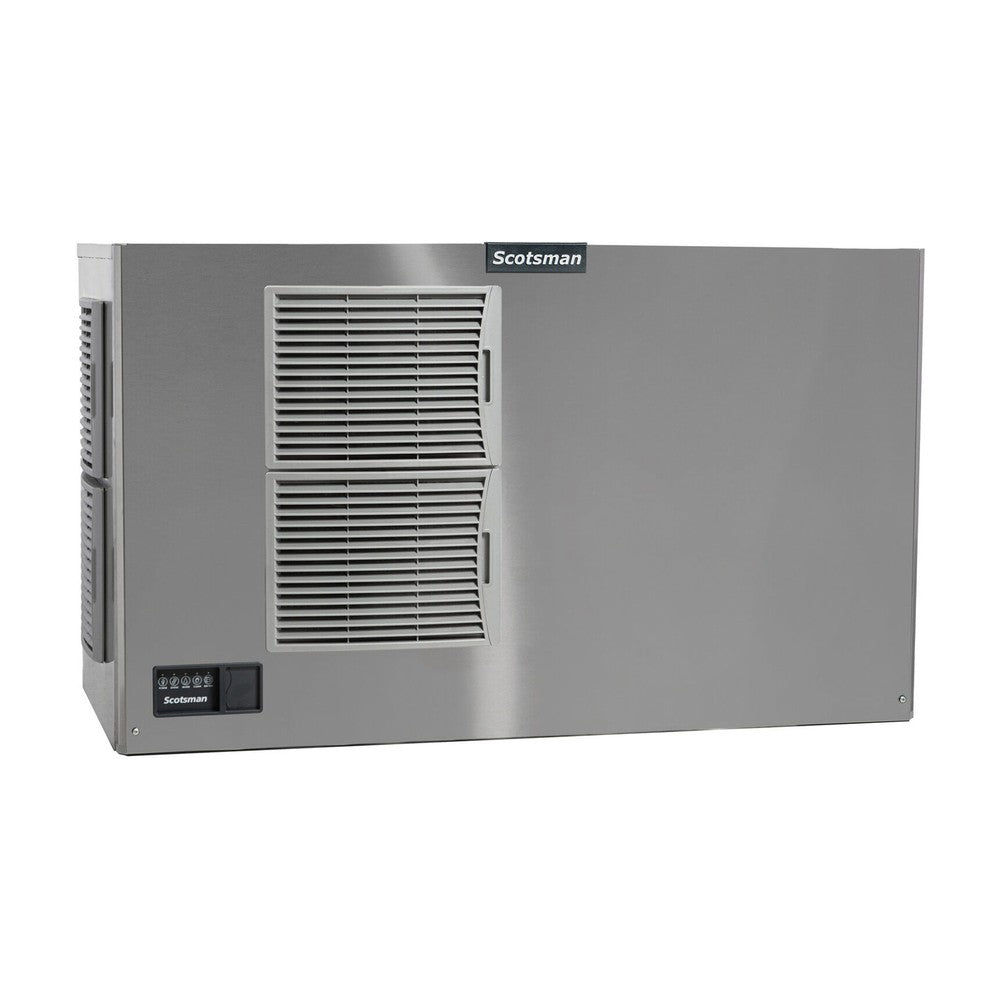

Scotsman MC1448SA-3, 48" Prodigy ELITE Air Cooled Small Cube Ice Machine, 1,553 Lb

Model specifics: up to 1,553 lbs per 24 hours · 48" wide · 7/8" x 7/8" x 3/8" small cube · air-cooled · 208-230/60/3 · ice machine only, bin sold separately

The MC1448SA-3 is a 48-inch-wide Prodigy ELITE head rated for up to 1,553 pounds of ice a day. It is made for high-volume operations such as hotels, hospitals, large restaurants and food processing, usually paired with a 48-inch Scotsman bin.

This model makes Scotsman small cubes, 7/8" x 7/8" x 3/8". The thinner half-size cube packs tightly in the glass, cools drinks quickly and is easy to blend, which makes it a good choice for fountain drinks, blended drinks and healthcare use.

It is air-cooled, so no condenser water line is needed. Removable front-facing air filters make cleaning quick; leave room around the unit for air flow and keep the room between 50°F and 100°F. At 90°F air and 70°F water it is rated for about 1,296 pounds a day, and it uses 4.25 kWh and 18.0 gallons of drinking water per 100 pounds of ice.

This is the three-phase version (208-230V, 3 phase) for buildings with three-phase service, which lowers the current draw on each leg.

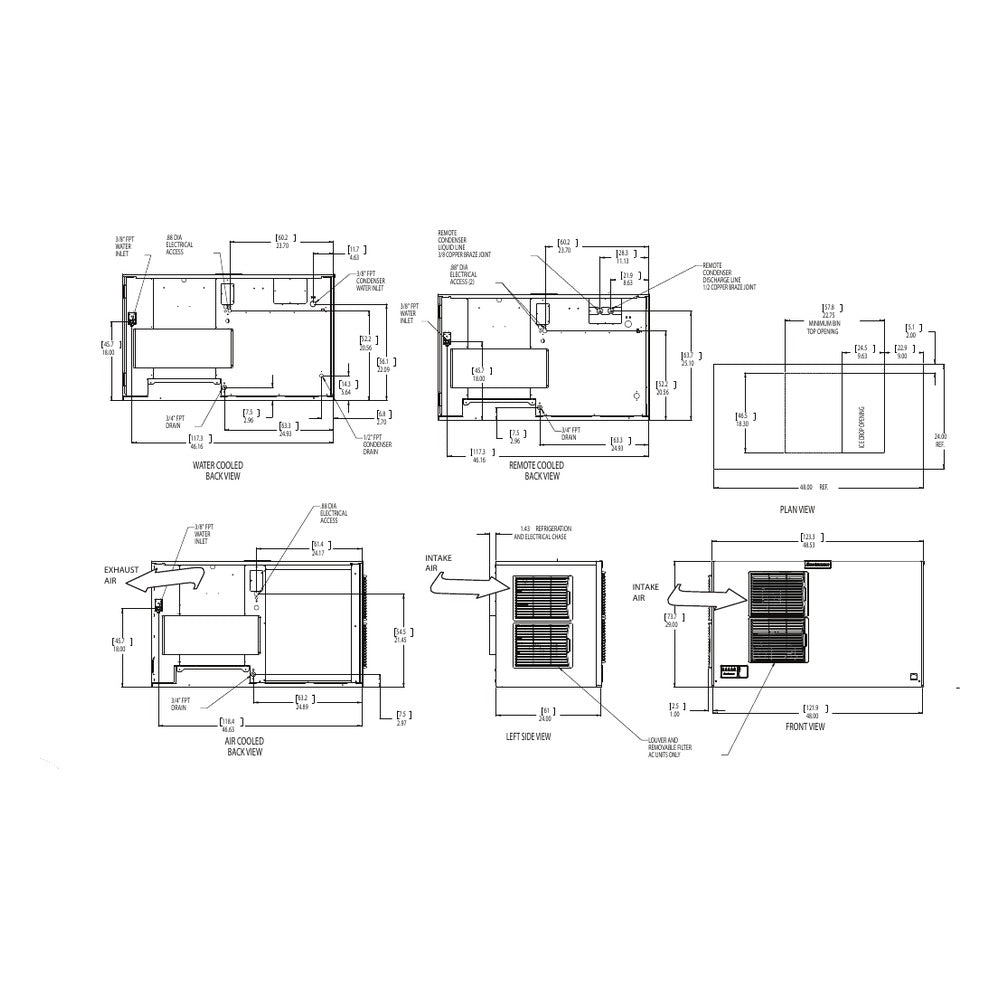

Scotsman lists the B948S ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features

• Up to 1,553 lbs of ice per 24 hours (70°F air / 50°F water)
• About 1,296 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Removable, front-facing air filters for fast cleaning
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R449A refrigerant

Specifications

• Model: MC1448SA-3
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Small Cube, 7/8" x 7/8" x 3/8"
• Ice production: up to 1,553 lbs / 24 hr (70°F air / 50°F water); about 1,296 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 48" x 24" x 29"
• Electrical: 208-230/60/3, 13.6 amp minimum circuit ampacity, 30 amp maximum fuse
• Condenser: Air-cooled
• Refrigerant: R449A
• Heat rejection: 20,000 BTU/hr
• Energy use: 4.25 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 18.0 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 345 lbs
• Exterior: Stainless steel
• Compatible bins: B948S
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

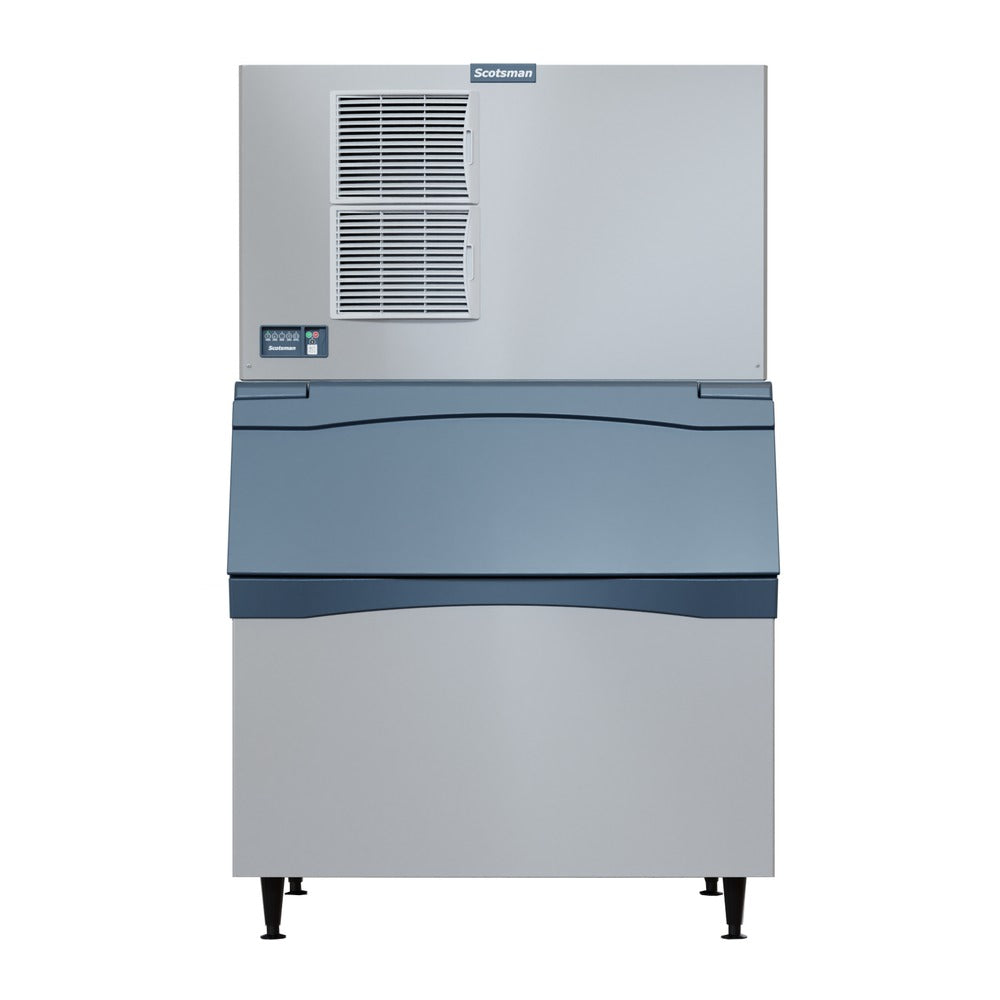

Matching Scotsman bins: the 48" B948S (893 lb) or BL1048S (1,000 lb) mount directly with no kit.

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
