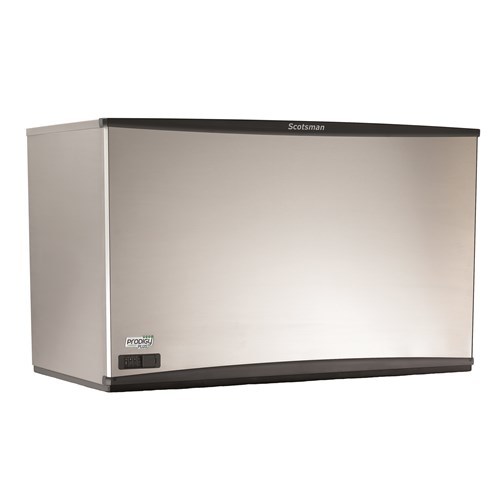

Scotsman MC1848SWX-32, 48" Prodigy ELITE Water Cooled Small Cube Ice Machine, 1,874 Lb

Model specifics: up to 1,874 lbs per 24 hours · 48" wide · 7/8" x 7/8" x 3/8" small cube · water-cooled · 208-230/60/1 · ice machine only, bin sold separately

The MC1848SWX-32 is the largest model in this group, a 48-inch-wide Prodigy ELITE head that makes up to 1,874 pounds of ice a day. It is built for the busiest sites, including large hotels, arenas, hospitals and institutional kitchens.

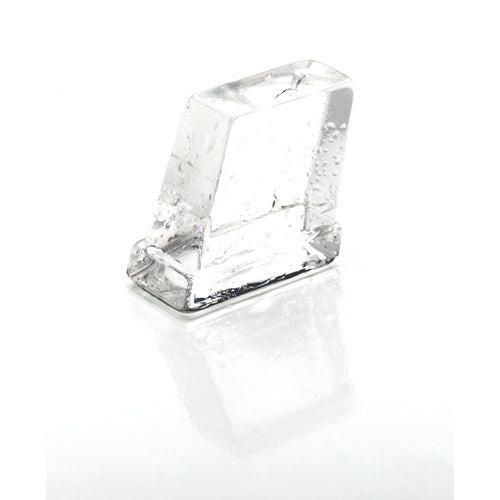

This model makes Scotsman small cubes, 7/8" x 7/8" x 3/8". The thinner half-size cube packs tightly in the glass, cools drinks quickly and is easy to blend, which makes it a good choice for fountain drinks, blended drinks and healthcare use.

It is water-cooled, so the condenser uses water instead of room air. That keeps heat out of the kitchen or bar and holds production steady in hot or poorly ventilated spaces. It needs a separate condenser water supply and drain; the condenser uses about 152.0 gallons per 100 pounds of ice (90°F air / 70°F water), plus 18.0 gallons of drinking water. At 90°F air and 70°F water it is rated for about 1,472 pounds a day.

It runs on 208-230 volt single-phase power, the common choice for commercial kitchens with a dedicated 208-230V circuit.

Scotsman lists the B948S ice storage bins for this model on its spec sheet (a bin top kit may be needed for some bin and dispenser setups). The attached Scotsman spec sheet has full dimensions, utility locations and accessory options.

Features:

• Up to 1,874 lbs of ice per 24 hours (70°F air / 50°F water)
• About 1,472 lbs per day at 90°F air / 70°F water
• AutoAlert indicator panel shows machine status, bin-full and cleaning reminders at a glance
• Built-in Bluetooth connection and the Scotsman ICELINQ app for diagnostics, settings and guided cleaning
• WaterSense adaptive purge control reduces scale buildup and water use
• Preservation mode helps keep the machine running and alerts you to possible issues
• Self-aligning front panel for easy service access
• R449A refrigerant

Specifications:

• Model: MC1848SWX-32
• Replaces model number: MC1848SW-32
• Series: Prodigy ELITE modular cube ice machine
• Ice type: Small Cube, 7/8" x 7/8" x 3/8"
• Ice production: up to 1,874 lbs / 24 hr (70°F air / 50°F water); about 1,472 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 48" x 24" x 29"
• Electrical: 208-230/60/1, 23.8 amp minimum circuit ampacity, 30 amp maximum fuse
• Condenser: Water-cooled
• Refrigerant: R449A
• Heat rejection: 27,400 BTU/hr
• Energy use: 3.69 kWh per 100 lbs of ice (90°F air / 70°F water)
• Drinking water use: 18.0 gal per 100 lbs of ice
• Condenser water use: 152.0 gal per 100 lbs of ice (90°F air / 70°F water)
• Ambient air temperature: 50°F to 100°F
• Water pressure: 20 to 80 psi (drinking water)
• Shipping weight: 355 lbs
• Exterior: Stainless steel
• Compatible bins: B948S
• Warranty: 3 Years parts and labor on all components. 5 Years parts and labor on the evaporator. 5 Years parts on the compressor and condenser.

Matching Scotsman bin: the 48" BL1048S (1,000 lb) mounts directly with no kit.

Please note: this is the ice machine only. The ice storage bin, bin top kit, water filter and other accessories are sold separately.
