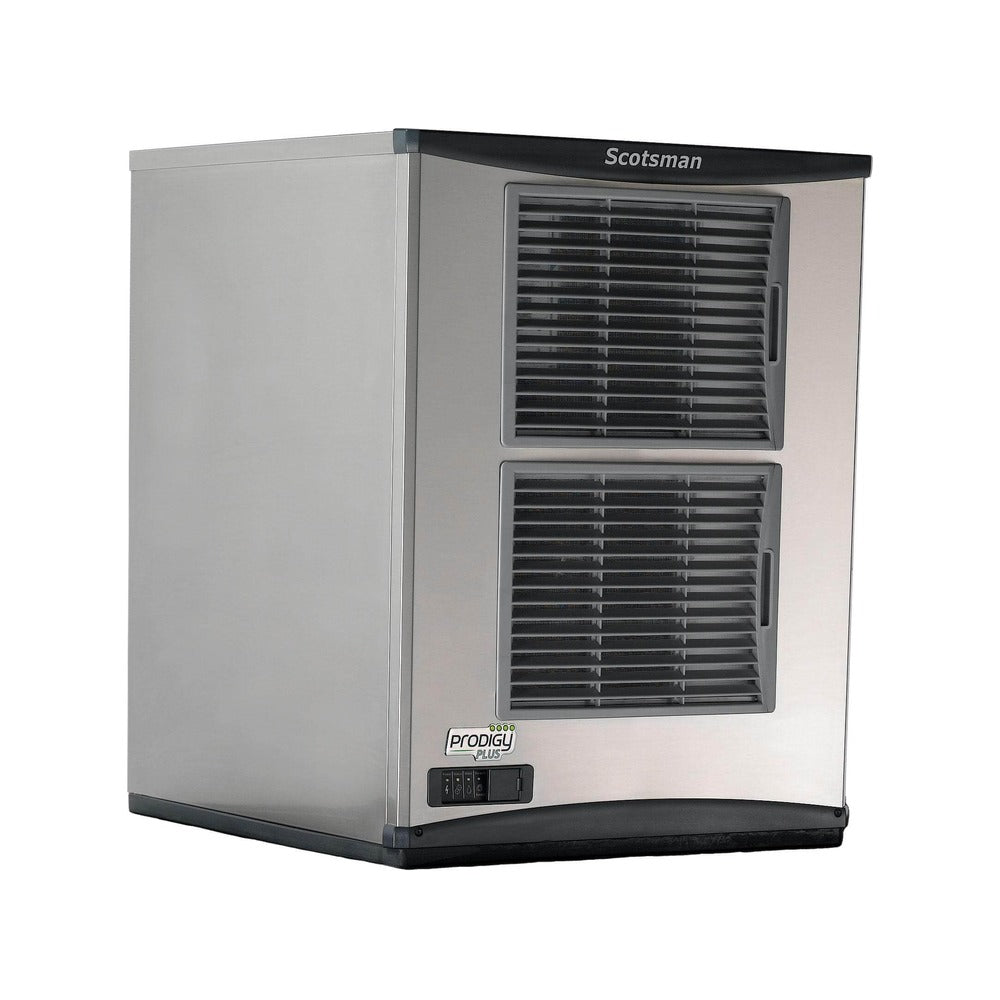

Scotsman NS0922AX-32 Prodigy Plus 22" Air Cooled Original Chewable Nugget Ice Machine, 956 Lb, 208-230V

Model specifics: up to 956 lbs per 24 hours · 22" modular head · Original Chewable Nugget ice · air-cooled · 208-230V single phase · R290 refrigerant

The Scotsman NS0922AX-32 is a high-output Prodigy Plus nugget head for hospitals, quick-service restaurants and convenience stores. It makes up to 956 pounds of Original Chewable Nugget ice a day at 70°F air and 50°F water (707 lbs at 90°F air and 70°F water) and runs on 208-230V/60/1.

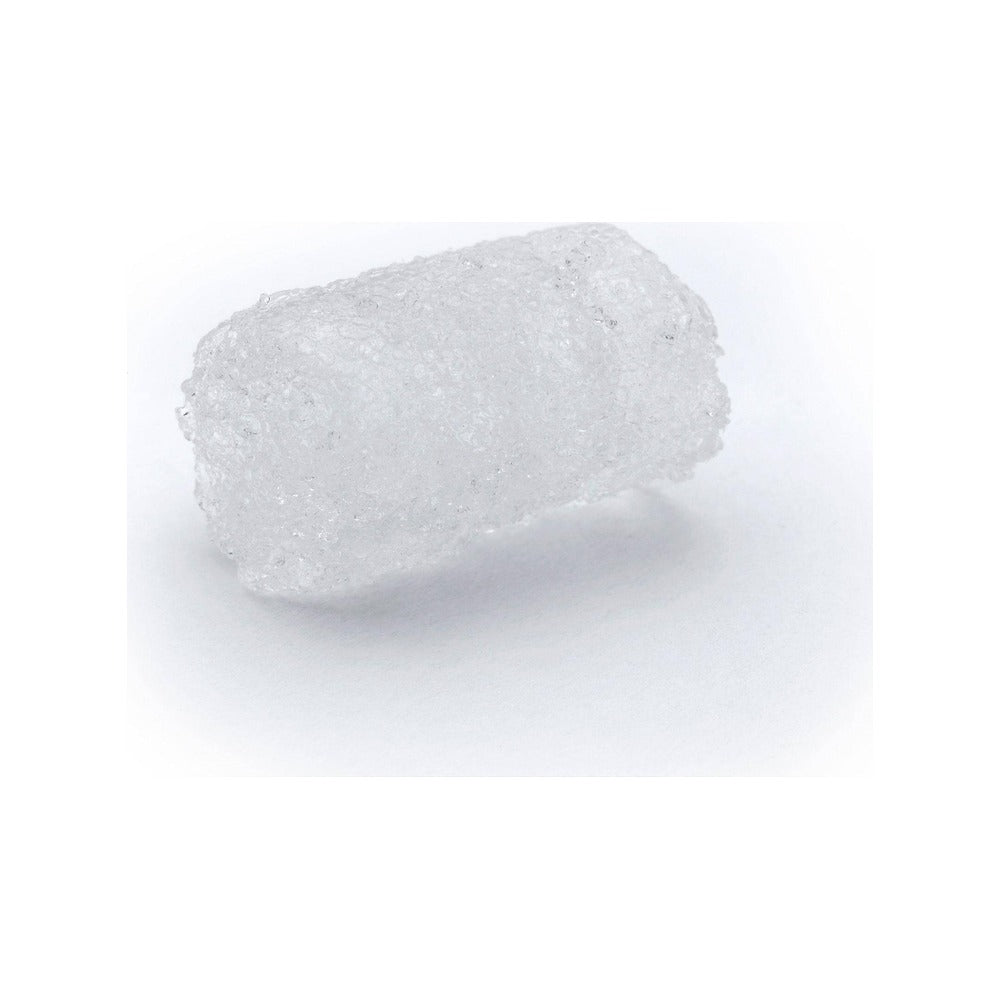

This NS model makes Scotsman's soft Original Chewable Nugget ice (hardness rating 74%, about 7/16" x 5/16" x 3/8"). It is easy to chew and well suited to traditional ice bin applications. Choose the matching NH model if you want the harder H2 Nugget for dispensing.

This is the air-cooled version. It breathes from the front, so it needs no side clearance, and the external air filter is reusable and easy to remove for cleaning.

Prodigy Plus features include sealed, maintenance-free bearings, a stainless steel evaporator and auger, AutoAlert indicator lights that signal when it is time to descale or sanitize, a unit-specific QR code that links to manuals and warranty history, and AgION antimicrobial protection on internal surfaces. Scotsman says its nugget machines use up to 40% less water and 15% less energy than cube ice machines. Optional Vari-Smart ice level control (KVS) and Smart-Board (KSBU) modules are available.

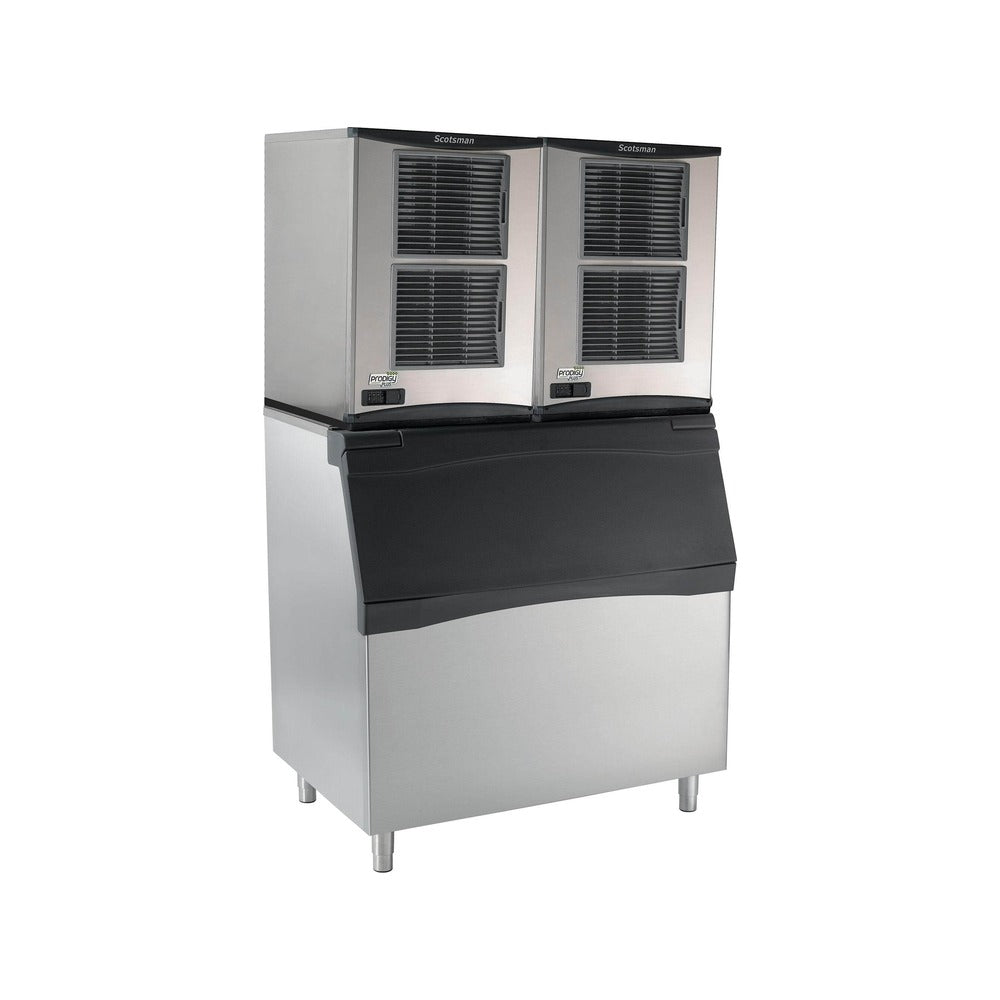

Ice bin sold separately: this is an ice machine head only, with no storage. Scotsman lists B530P/B530S, B842S or B948S bins, or IOD200 and IOD250 ice dispensers for this model; contact Scotsman for bin top requirements. Scotsman recommends water filtration on all ice machines.

Installation: 208-230V/60/1, 10.6 A minimum circuit ampacity, 15 A maximum fuse or HACR breaker. Operates in 50-100°F air with 40-100°F water at 20-80 psi. 3/8" flare potable water inlet and 3/4" FPT drain.

Warranty: Scotsman covers all components for 3 years parts and labor and the compressor for 5 years parts (commercial installations in North, South and Central America).

Specifications

• Model: NS0922AX-32
• Ice type: Original Chewable Nugget (soft, 74%)
• Ice production: up to 956 lbs / 24 hr at 70°F air / 50°F water; 707 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 22.9" x 24" x 27"
• Electrical: 208-230V/60/1, 10.6 A min. circuit, 15 A max fuse
• Condenser: Air-cooled
• Refrigerant: R290, 7.0 oz charge
• Energy use: 3.82 kWh per 100 lbs at 90/70°F
• Potable water: 12 gallons per 100 lbs of ice
• Heat rejection: about 10,500 BTU/hr
• Exterior: Stainless steel
• Shipping weight: 210 lbs
• Shipping carton: 25.5" x 27.5" x 32.5"
• Warranty: 3 years parts and labor on all components; 5 years parts on the compressor
