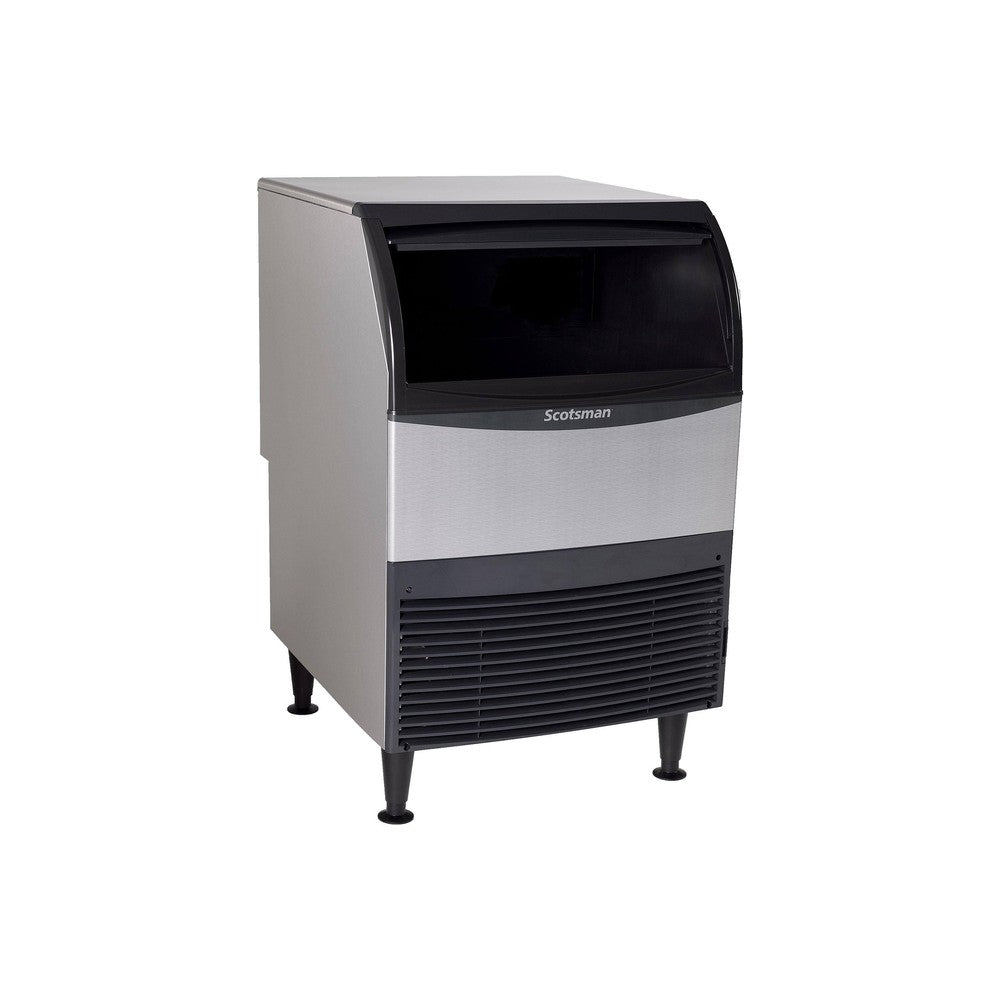

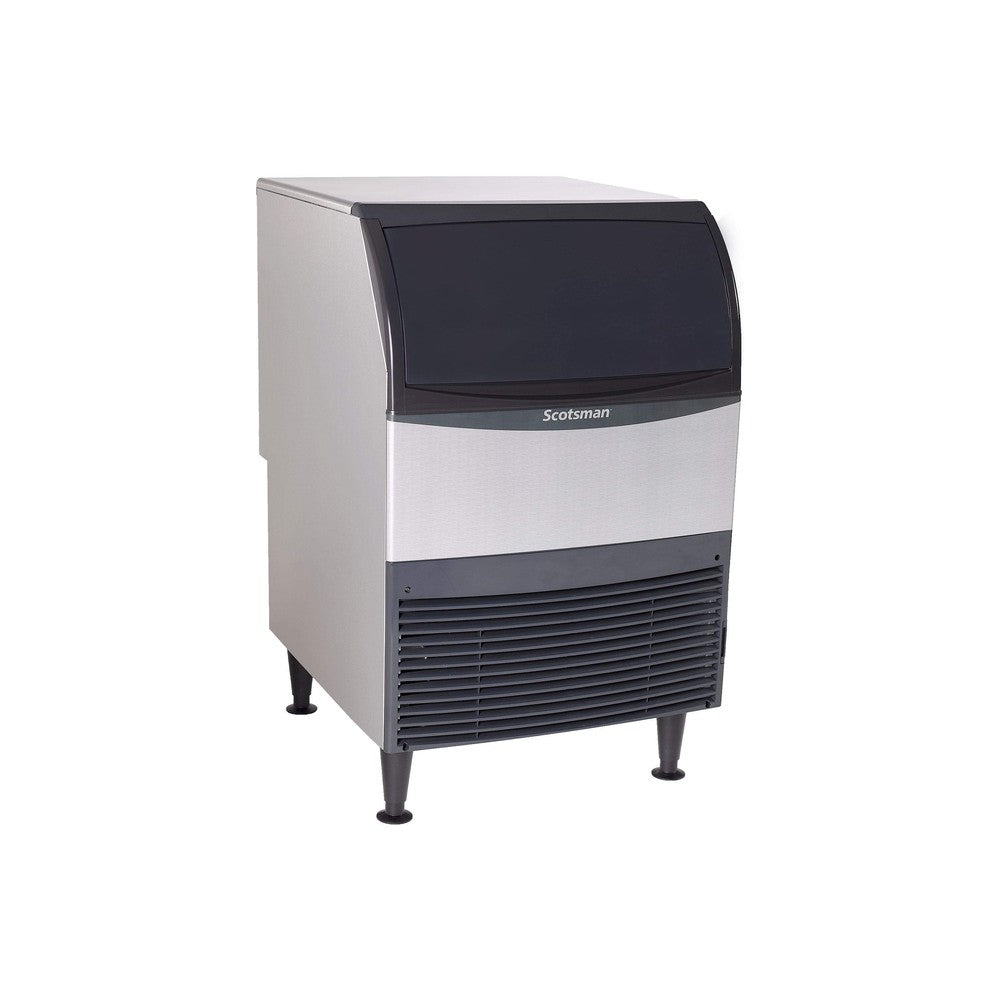

Scotsman UC2724MWX-1, 24" Water Cooled Medium Cube Undercounter Ice Machine, 282 Lb, 80 Lb Storage

Model specifics: up to 282 lbs per 24 hours · 80 lbs built-in storage · 24" wide · medium cube ice · water-cooled · 115/60/1

The UC2724MWX-1 is Scotsman's highest-output 24-inch undercounter cuber, making up to 282 pounds of ice a day with 80 pounds of built-in storage. It gives busy bars, restaurants and hotels near modular-level production without a separate bin.

This is the water-cooled version. The condenser uses water instead of room air, so it keeps heat out of the room and holds production steady in hot or tight spaces. It needs a condenser water supply and drain; it uses about 136 gallons of condenser water per 100 pounds of ice at 90°F air / 70°F water.

It makes Scotsman medium cubes, 7/8" x 7/8" x 7/8". The full-size cube melts slowly and is the classic choice for mixed drinks and soft drinks.

It plugs into a standard 115 volt outlet on a 15 amp circuit.

Production is rated at 70°F air and 50°F water. At 90°F air and 70°F water it is rated for about 232 pounds a day and uses 5.11 kWh and 26.1 gallons of drinking water per 100 pounds of ice.

Features

• Up to 282 lbs of ice per 24 hours (70°F air / 50°F water)
• 80 lbs of built-in ice storage
• About 232 lbs per day at 90°F air / 70°F water
• R290 hydrocarbon refrigerant
• Self-contained: no separate bin needed
• Front-accessible controls and utility connections
• Optional floor mount kit lowers overall height

Specifications

• Model: UC2724MWX-1
• Ice type: Medium Cube, 7/8" x 7/8" x 7/8"
• Ice production: up to 282 lbs / 24 hr (70°F air / 50°F water); about 232 lbs at 90°F / 70°F
• Storage capacity: 80 lbs

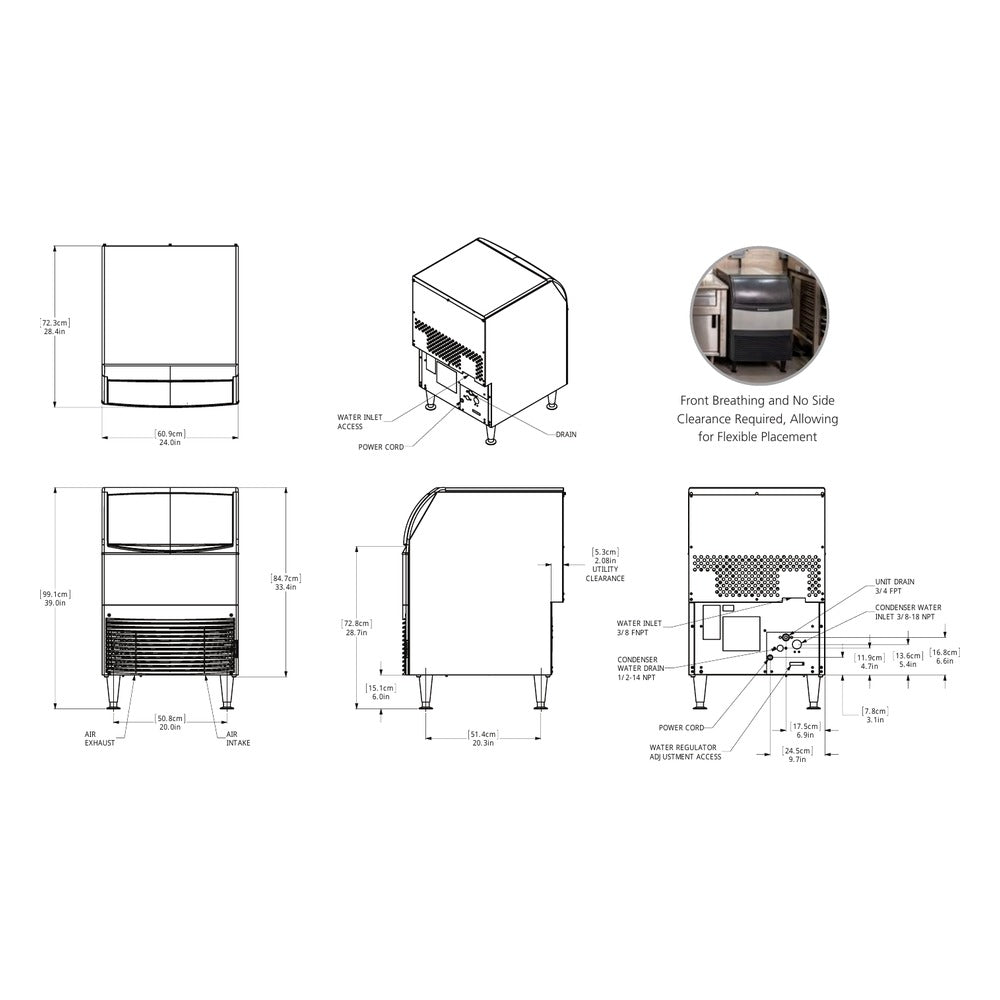

• Dimensions (W x D x H): 24" x 28.5" x 39"
• Electrical: 115/60/1, 15 amp maximum fuse or HACR breaker, cord connected
• Condenser: Water-cooled
• Refrigerant: R290
• Heat rejection: 5,000 BTU/hr
• Energy use: 5.11 kWh per 100 lbs of ice (90°F / 70°F)
• Drinking water use: 26.1 gal per 100 lbs of ice
• Condenser water use: 136 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Shipping weight: 175 lbs
• Warranty: 3 Years parts and labor on all components. 5 Years parts on the compressor.

Scotsman recommends water filtration on all ice machines; filters, floor mount kits and other accessories are sold separately. Residential installations carry a 1 year parts and labor warranty from Scotsman.
