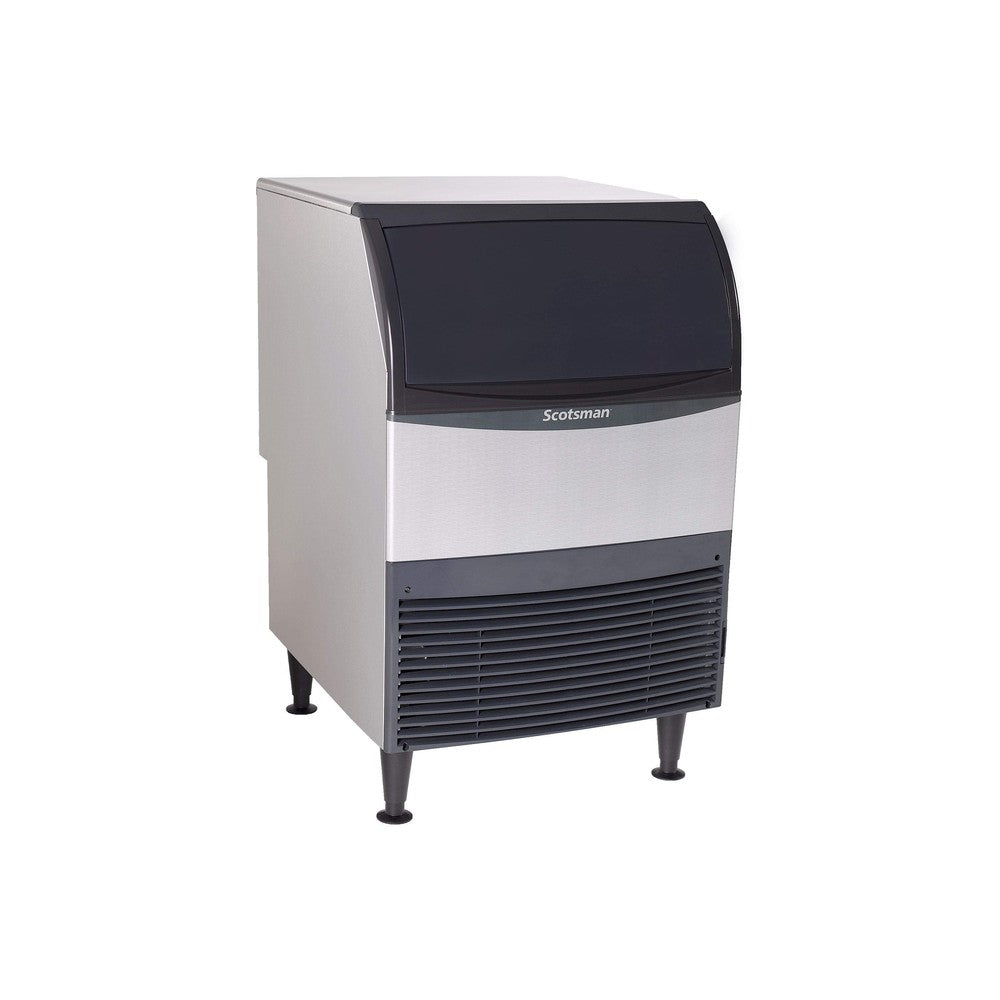

Scotsman UC2724SAX-1, 24" Air Cooled Small Cube Undercounter Ice Machine, 282 Lb, 80 Lb Storage

Model specifics: up to 282 lbs per 24 hours · 80 lbs built-in storage · 24" wide · small cube ice · air-cooled · 115/60/1

The UC2724SAX-1 is Scotsman's highest-output 24-inch undercounter cuber, making up to 282 pounds of ice a day with 80 pounds of built-in storage. It gives busy bars, restaurants and hotels near modular-level production without a separate bin.

It is air-cooled and front-breathing, so it can be built in under a counter with no side clearance; keep the front grille clear and the room between 50°F and 100°F.

It makes Scotsman small cubes, 7/8" x 7/8" x 3/8". The half-size cube packs tightly in the glass and cools drinks fast, a good choice for fountain drinks and blended drinks.

It plugs into a standard 115 volt outlet on a 15 amp circuit.

Production is rated at 70°F air and 50°F water. At 90°F air and 70°F water it is rated for about 202 pounds a day and uses 6.47 kWh and 23.8 gallons of drinking water per 100 pounds of ice.

Features

• Up to 282 lbs of ice per 24 hours (70°F air / 50°F water)
• 80 lbs of built-in ice storage
• About 202 lbs per day at 90°F air / 70°F water
• R290 hydrocarbon refrigerant
• Self-contained: no separate bin needed
• Front-accessible controls and utility connections
• Optional floor mount kit lowers overall height

Specifications

• Model: UC2724SAX-1
• Ice type: Small Cube, 7/8" x 7/8" x 3/8"
• Ice production: up to 282 lbs / 24 hr (70°F air / 50°F water); about 202 lbs at 90°F / 70°F
• Storage capacity: 80 lbs

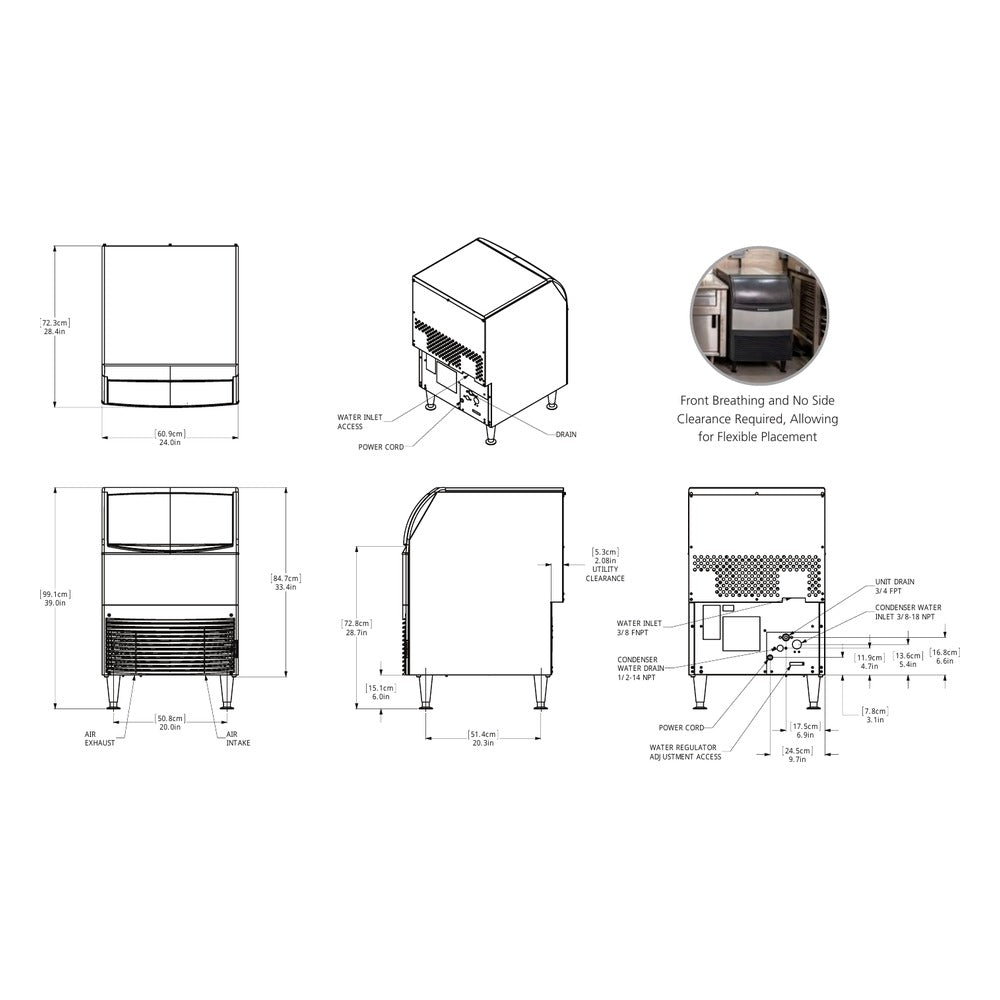

• Dimensions (W x D x H): 24" x 28.5" x 39"
• Electrical: 115/60/1, 15 amp maximum fuse or HACR breaker, cord connected
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 5,000 BTU/hr
• Energy use: 6.47 kWh per 100 lbs of ice (90°F / 70°F)
• Drinking water use: 23.8 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Shipping weight: 175 lbs
• Warranty: 3 Years parts and labor on all components. 5 Years parts on the compressor.

Scotsman recommends water filtration on all ice machines; filters, floor mount kits and other accessories are sold separately. Residential installations carry a 1 year parts and labor warranty from Scotsman.
