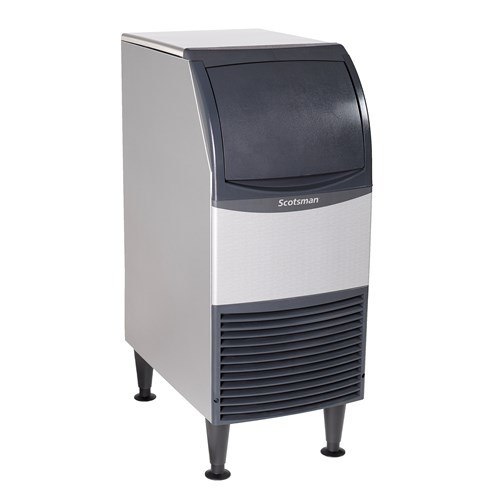

Scotsman UN0815AX-1, 15" Air Cooled Nugget Undercounter Ice Machine, 99 Lb, 36 Lb Storage

Model specifics: up to 99 lbs per 24 hours · 36 lbs built-in storage · 15" wide · nugget ice · air-cooled · 115/60/1

The UN0815AX-1 is a 15-inch undercounter that makes up to 99 pounds a day of Scotsman nugget ice and stores 36 pounds. Soft, chewable nugget ice is a favorite for soft drinks, smoothies and healthcare.

It is air-cooled and front-breathing, so it can be built in under a counter with no side clearance; keep the front grille clear and the room between 50°F and 100°F.

It plugs into a standard 115 volt outlet on a 15 amp circuit.

Production is rated at 70°F air and 50°F water. At 90°F air and 70°F water it is rated for about 74 pounds a day and uses 5.64 kWh and 12 gallons of drinking water per 100 pounds of ice.

Features:

• Up to 99 lbs of ice per 24 hours (70°F air / 50°F water)
• 36 lbs of built-in ice storage
• About 74 lbs per day at 90°F air / 70°F water
• R290 hydrocarbon refrigerant
• Self-contained: no separate bin needed

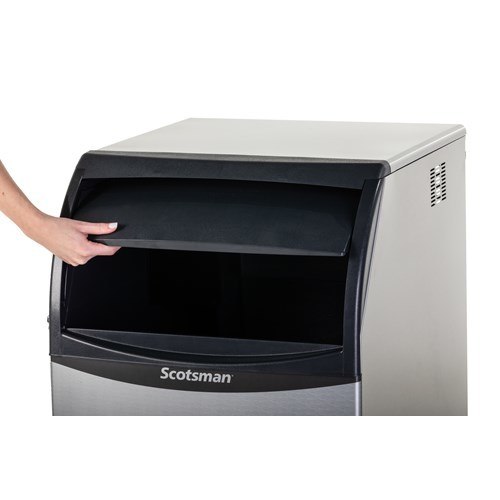

• Slide-back bin door for easy access to ice
• Front breathing, no side clearance required
• Optional floor mount kit for 34" ADA counter heights
• Ice scoop included

Specifications:

• Model: UN0815AX-1
• Ice type: Nugget
• Ice production: up to 99 lbs / 24 hr (70°F air / 50°F water); about 74 lbs at 90°F / 70°F
• Storage capacity: 36 lbs
• Dimensions (W x D x H): 15" x 24" x 38"
• Electrical: 115/60/1, 15 amp maximum fuse or HACR breaker, cord connected
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 1,500 BTU/hr
• Energy use: 5.64 kWh per 100 lbs of ice (90°F / 70°F)
• Drinking water use: 12 gal per 100 lbs of ice
• Ambient air temperature: 50°F to 100°F
• Shipping weight: 108 lbs
• Warranty: 3 Years parts and labor on all components.

Scotsman recommends water filtration on all ice machines; filters, floor mount kits and other accessories are sold separately. Residential installations carry a 1 year parts and labor warranty from Scotsman.
