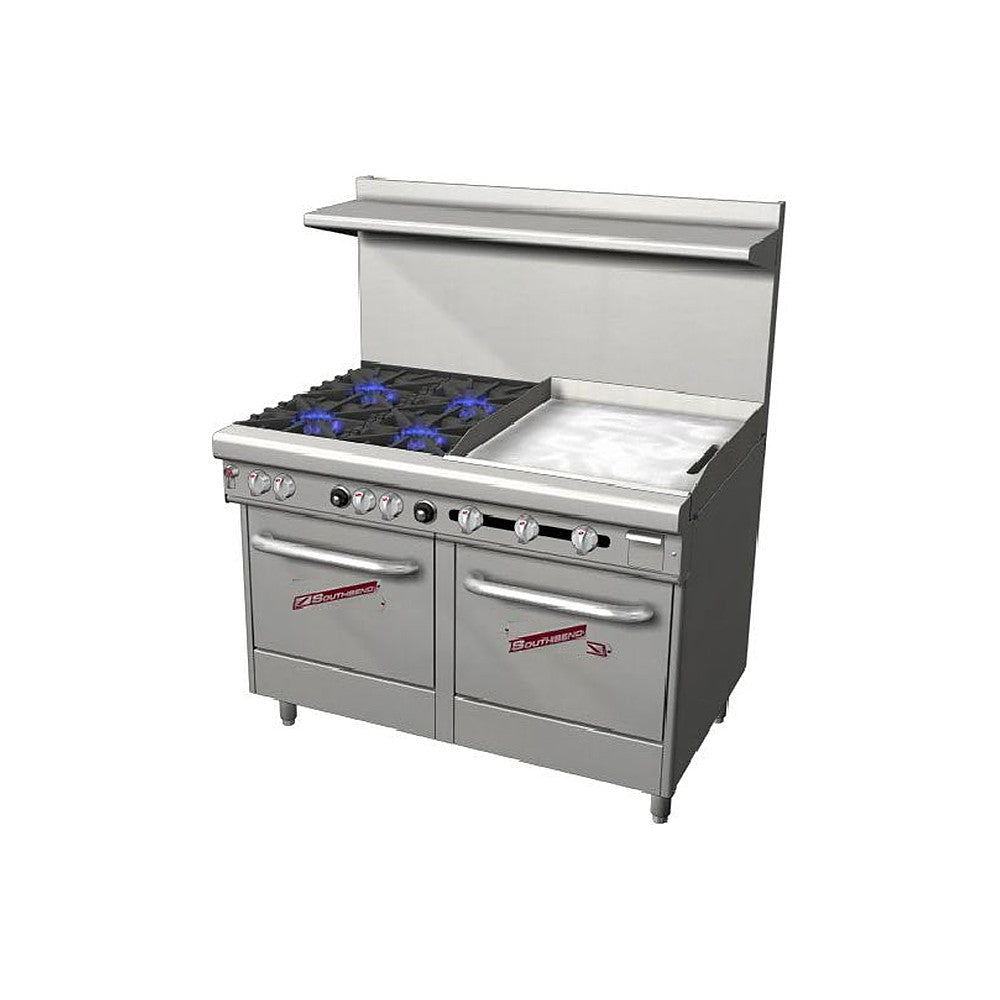

Southbend 4481EE-2GR, 48" Gas Restaurant Range, 4 Burners, 24" Manual Griddle on Right, 2 Space Saver Ovens

The 4481EE-2GR from Southbend's Ultimate Series is a heavy-duty 48" gas range with 4 open burners and a 24" manual griddle on the right. Total input is 270,000 BTU per hour. The oven base is two space saver ovens. The griddle sits on the right side of the cooktop (as you face the range); the same configuration with the griddle on the left is sold as the 4481EE-2GL.

Best for:

• Full-service restaurants, hotels and institutional kitchens with long cooking shifts
• Lines that need heavy-duty cast-iron burners and a durable oven base
• Menus that mix sauté and stock-pot work with eggs, pancakes, burgers or sandwiches on the flat top

Key specifications:

• Model: 4481EE-2GR
• Width: 48" (Ultimate Series)
• Dimensions: 48.63" W x 34" D x 59.5" H
• Total input: 270,000 BTU/hr
• Open burners: 4 x 33,000 BTU natural gas (24,000 BTU propane), cast-iron non-clog
• Griddle: 24" manual, 1/2" thick steel plate, 48,000 BTU, right side
• Oven base: two 45,000 BTU (natural gas) space saver ovens (19.5" W x 26.5" D x 14" H porcelain enamel cavity, 175°F to 550°F thermostat)
• Gas: natural gas or propane (specify when ordering); 3/4" gas connection
• Shipping weight: 735 lb

Features:

• 37" working height with a 27" deep cooking surface
• 4" stainless steel front rail; stainless steel front, sides and flue riser shelf
• The gas connection is on the opposite side of the griddle (left side)
• Removable cast-iron grates; the rear grates hold a 14" stock pot
• Removable one-piece drip tray under the burners
• Front manual gas shut-off and factory-installed pressure regulator
• Standing pilots on the open burners and battery spark ignition on the oven base
• Spring-assisted, counterweighted oven door
• 22.5" flue riser with a heavy-duty shelf
• 6" stainless steel adjustable legs (casters are optional)

What's included:

• Range with burners/griddle as listed
• Oven rack(s) as listed above
• Flue riser with shelf
• Factory pressure regulator

Installation notes:

• Professional installation by a licensed gas fitter is required
• Specify natural gas or propane at order
• Install under a vented commercial hood; check local fire and sanitary codes
• For combustible floors, use 6" legs or casters; 10" side and rear clearance to combustible construction
• A restraining device is required if the range is used with casters and a flexible gas hose

Warranty:

• 1 year limited parts and labor from Southbend
