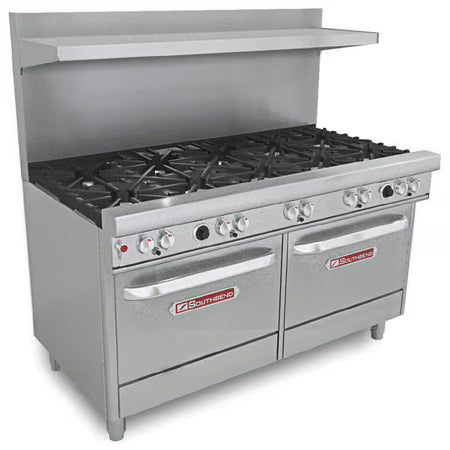

Southbend 4601DD, 60" Gas Restaurant Range, 10 Burners, 2 Standard Ovens

The 4601DD from Southbend's Ultimate Series is a heavy-duty 60" gas range with 10 open burners. Total input is 420,000 BTU per hour. The oven base is two standard ovens.

Best for:

• Full-service restaurants, hotels and institutional kitchens with long cooking shifts
• Lines that need heavy-duty cast-iron burners and a durable oven base

Key specifications:

• Model: 4601DD
• Width: 60" (Ultimate Series)
• Dimensions: 60.75" W x 34" D x 59.5" H
• Total input: 420,000 BTU/hr
• Open burners: 10 x 33,000 BTU natural gas (24,000 BTU propane), cast-iron non-clog
• Oven base: two 45,000 BTU (natural gas) standard ovens (26" W x 26.5" D x 14" H porcelain enamel cavity, one rack with two rack positions, 175°F to 550°F thermostat)
• Gas: natural gas or propane (specify when ordering); 3/4" gas connection
• Shipping weight: 1075 lb

Features:

• 37" working height with a 27" deep cooking surface
• 4" stainless steel front rail; stainless steel front, sides and flue riser shelf
• Removable cast-iron grates; the rear grates hold a 14" stock pot
• Removable one-piece drip tray under the burners
• Front manual gas shut-off and factory-installed pressure regulator
• Standing pilots on the open burners and battery spark ignition on the oven base
• Spring-assisted, counterweighted oven door
• 22.5" flue riser with a heavy-duty shelf
• 6" stainless steel adjustable legs (casters are optional)

What's included:

• Range with burners/griddle as listed
• Oven rack(s) as listed above
• Flue riser with shelf
• Factory pressure regulator

Installation notes:

• Professional installation by a licensed gas fitter is required
• Specify natural gas or propane at order
• Install under a vented commercial hood; check local fire and sanitary codes
• For combustible floors, use 6" legs or casters; 10" side and rear clearance to combustible construction
• A restraining device is required if the range is used with casters and a flexible gas hose

Warranty:

• 1 year limited parts and labor from Southbend
