Southbend PCG100S/SD, Platinum Double Deck Gas Convection Oven, Standard Depth, Solid State Controls, 100,000 BTU

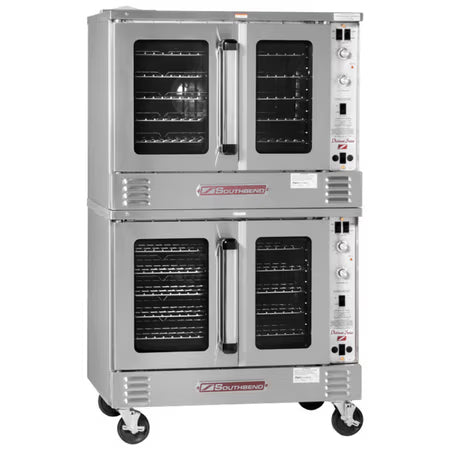

The Southbend PCG100S/SD is a Platinum Series double-deck, full-size gas convection oven with standard-depth cavities and solid state controls. Each deck has its own 50,000 BTU patented non-clog inshot burner (100,000 BTU total), and the two-speed fan moves heat evenly so you can bake, roast and reheat on every rack.

Best for:

• Bakeries, schools, hotels and banquet kitchens that need two full-size ovens in one footprint
• High-volume baking and roasting with full-size sheet pans
• Operations upgrading from older Southbend convection ovens

Key specifications:

• Model: PCG100S/SD
• Configuration: double deck, full size, standard depth
• Overall dimensions: 38" W x 39.25" D x 66.8" H
• Total input: 100,000 BTU/hr (50,000 BTU per deck)
• Oven interior (each deck): 29" W x 21.5" D x 20" H
• Capacity: 5 racks and 11 rack positions per deck
• Temperature range: 140°F to 500°F
• Electrical: 120V/60/1, 6' cord with NEMA 5-15P plug (one per deck)
• Gas: natural gas or propane
• Shipping weight: 1,040 lb

Features:

• Solid state thermostat with 60-minute cook timer
• Dependent glass doors that open a full 180°
• High-efficiency glass windows and dual door seals
• Coved, fastener-free porcelain interior
• Two-speed 1/2 hp fan motor with forced cool-down mode
• Plug-in, plug-out slide-out control panel for easy service
• Hot surface ignition with flame safety device
• Interior oven lights; stainless steel front, sides and top

What's included:

• Two stacked convection ovens
• 5 plated oven racks per deck

Installation notes:

• Requires a vented hood and a licensed gas installer
• Each deck needs its own 120V outlet
• Specify natural gas or propane at order

Warranty:

• 1 year limited parts and labor from Southbend
