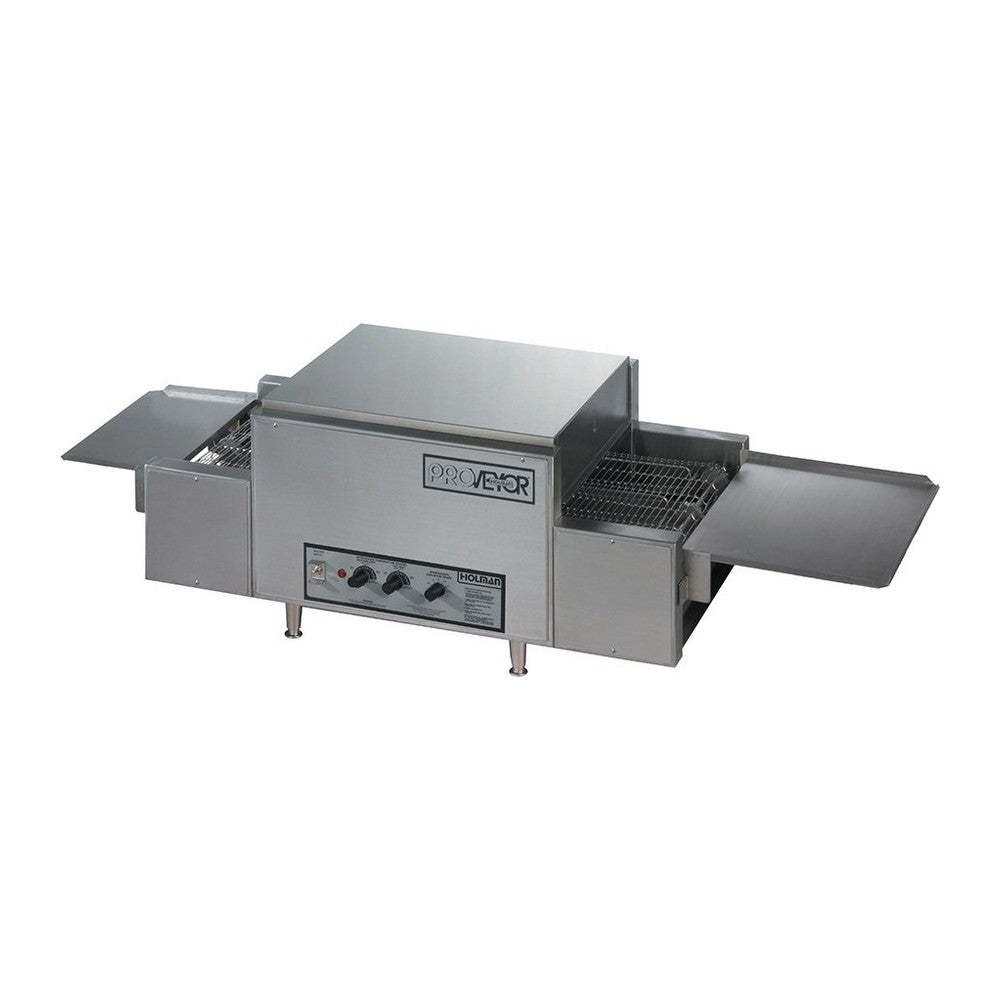

Star 314HX 60" Electric Quartz Conveyor Oven, 14" Belt, 5,400 W, 208/240V

The Star 314HX is a countertop electric conveyor oven with quartz infrared elements above and below a 14-inch belt. It handles up to 16 12" pizzas or 60 5" pizzas per hour, plus sandwiches, flatbreads and appetizers, and needs no special training: load one end and product comes out the other.

Best for:

• Pizzerias, bars and taverns
• Sandwich shops and convenience stores
• Concessions and schools that need simple, consistent cooking

Key specifications:

• Model: 314HX
• Belt: 14" wide, 38" long
• Product opening: 1.5" to 4"
• Capacity: up to 16 12" pizzas or 60 5" pizzas per hour
• Electrical: 5,400 W, 208/240V, single phase; 26.4 / 22.9 A; 6-50P plug
• Dimensions: 60" W x 21.25" D x 16.1" H
• Shipping weight: 115 lb

Features:

• High-power quartz infrared elements above and below the belt
• Forced convection circulates preheated air and keeps the exterior cool
• Analog controls for belt speed, top heat and bottom heat
• Adjustable entry and exit openings, 1.5" to 4"
• Removable 6.5" extended load and unload areas
• Removable crumb tray
• Stacks up to three high with the optional stacking kit
• Stainless steel construction

Installation notes:

• Specify voltage when ordering (208V or 240V)
• Cord-connected with a 6-50P plug
• Check local codes for ventilation requirements

Warranty:

• 1 year parts and labor from Star
