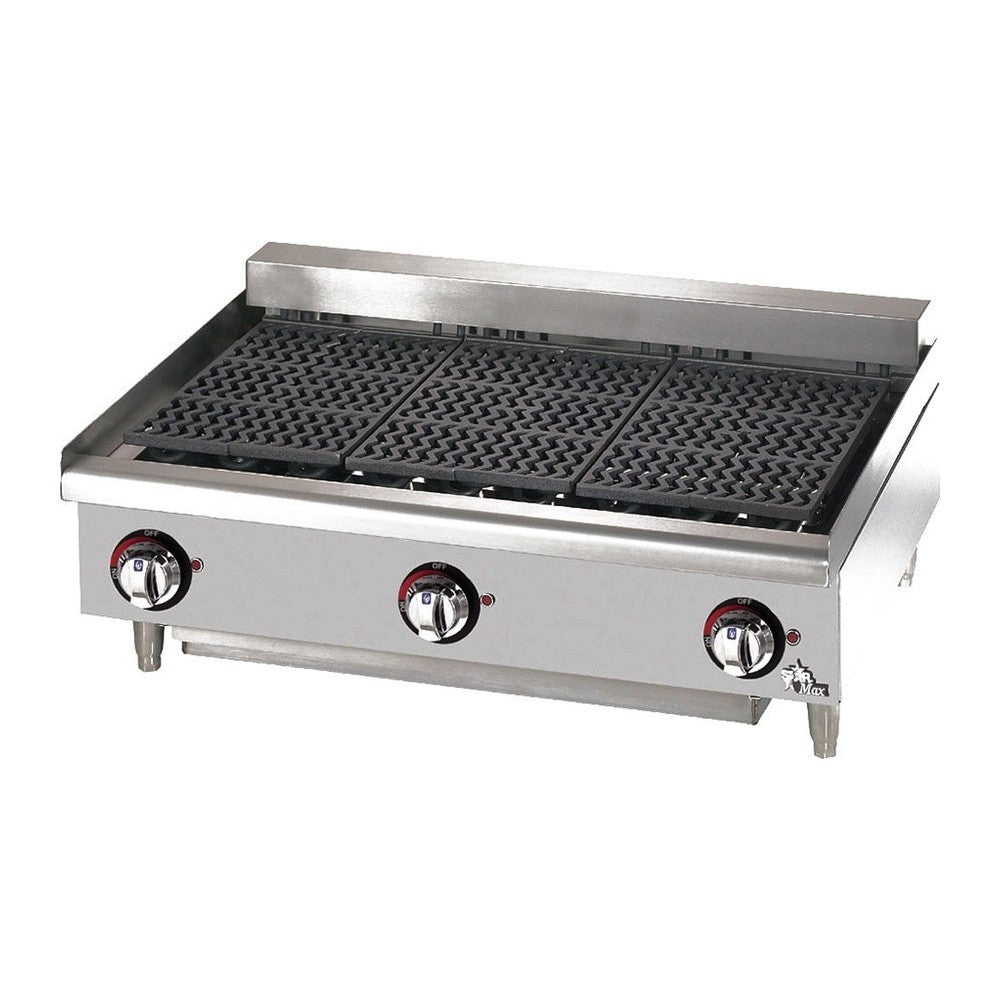

Star 5136CF Star-Max 36" Electric Charbroiler, Radiant, 9,900 W, 208/240V

The Star 5136CF is a 36-inch Star-Max electric charbroiler for kitchens without gas. Incoloy sheathed elements sit directly under heavy cast iron grates, so food is cooked both by radiant heat and by contact with the hot grates.

Best for:

• Burgers, steaks, chicken and grilled vegetables
• Restaurants, bars and grills
• Adding char-grilled items to a line with limited space

Key specifications:

• Model: 5136CF
• Broiling area: 36" W x 21" D
• Electrical: 9,900 W, 208V or 240V, single or three phase (hard-wired)
• Dimensions: 36" W x 25.6" D x 14.25" H
• Shipping weight: 186 lb

Features:

• Incoloy sheathed heating elements for fast, high-heat broiling
• Infinite control for every 12" of grate
• Removable heavy-duty cast iron grates
• Swing-up element assembly locks upright for cleaning
• Large stainless steel water pan
• Stainless steel top, pan and front with aluminized steel sides
• 2.75" tapered stainless splash guard and cool-touch bull nose front
• 4" adjustable legs

Installation notes:

• Must be hard-wired by a licensed electrician for single- or three-phase service
• Specify 208V or 240V when ordering
• Install under a commercial exhaust hood per local codes

Warranty:

• 2 years parts and labor from Star
