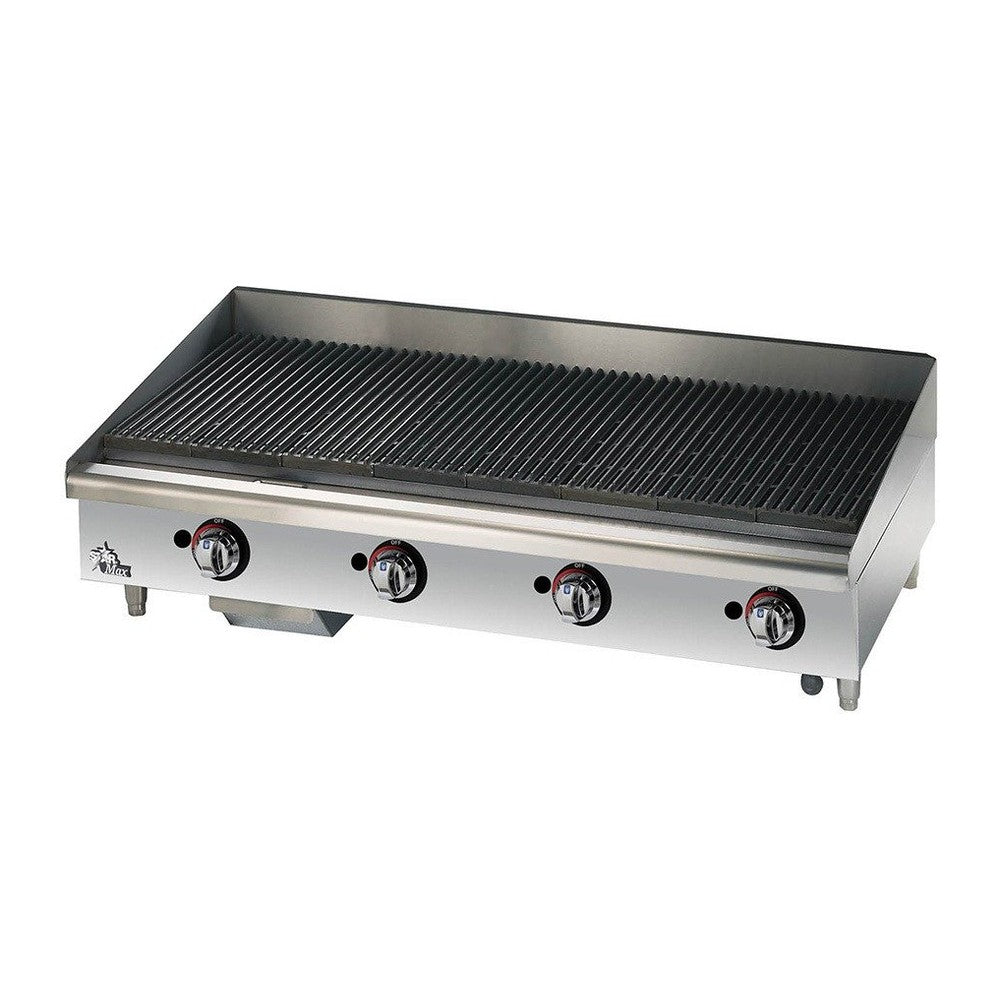

Star 6148RCBF Star-Max 48" Gas Charbroiler, Radiant, 160,000 BTU

The Star 6148RCBF is a 48-inch Star-Max radiant charbroiler with an H-style cast iron burner every 12 inches, rated 40,000 BTU on natural gas. Contoured stainless steel radiants spread the heat evenly across the grates.

Best for:

• High-volume steakhouses, grills and burger restaurants
• Cooking several proteins at different heat levels
• Catering and banquet kitchens

Key specifications:

• Model: 6148RCBF
• Heat type: radiant
• Grate area: 992 sq. in.
• Total input: 160,000 BTU/hr (natural gas)
• Gas: Natural gas (LP conversion kit included)
• Dimensions: 48" W x 29" D x 15.5" H
• Shipping weight: 351 lb

Features:

• 40,000 BTU H-style cast iron burner per 12" (35,000 BTU on LP)
• Grates adjust in 6" sections from flat to slanted
• Reversible cast iron grates: thin side for searing, thick side for more delicate items
• Heavy-gauge contoured stainless steel radiants
• 2.75" tapered splash guard and large water pan
• Stainless steel top and front with aluminized steel sides and a cool-touch bull nose
• 4" legs

Installation notes:

• 3/4" NPT gas connection
• Ships set up for natural gas with a field conversion kit for LP
• Install under a commercial exhaust hood by a licensed gas fitter, following local codes

Warranty:

• 2 years parts and labor from Star
