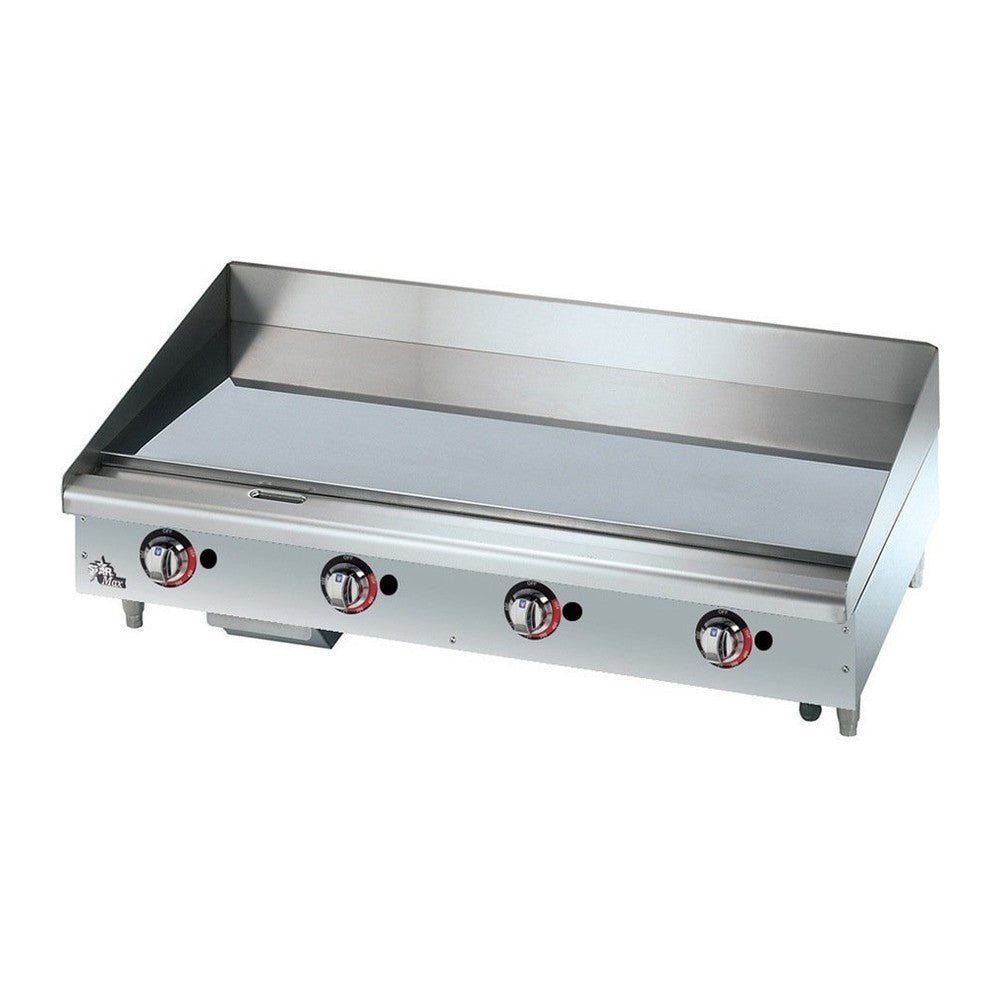

Star 648TCHSF Star-Max 48" Gas Griddle, Thermostatic Controls, Chrome Plate, 113,200 BTU

The Star 648TCHSF is a 48-inch Star-Max countertop gas griddle with a 1-inch thick chrome plate heated by 4 U-shaped 28,300 BTU burners, one every 12 inches. A modulating thermostat set into the plate 3/16 inch below the surface holds each zone between 150°F and 450°F. The chrome plate releases food easily, cleans up fast and keeps more heat on the plate instead of in the room.

Best for:

• High-volume restaurants and diners
• Running several menu items at different temperatures at once
• Large breakfast and burger lines

Key specifications:

• Model: 648TCHSF
• Cooking surface: 48" x 21"
• Plate: 1" thick chrome
• Burners: 4
• Total input: 113,200 BTU/hr
• Controls: thermostatic, 150°F to 450°F
• Gas: Natural gas (LP conversion kit included)
• Dimensions: 48" W x 29" D x 15.5" H
• Shipping weight: 350 lb

Features:

• 1" thick chrome plate for even heat across the surface
• Aluminized steel U-shaped burner, 28,300 BTU, every 12" of width
• Modulating thermostat embedded 3/16" below the surface, 150°F to 450°F
• All-welded body with stainless steel front, cool-touch bull nose and 4.5" tapered splash guard
• Spatula-wide 3.25" front grease trough with grease chute
• 4.5 quart stainless steel grease drawer
• Stainless steel panels with double-wall aluminized steel sides
• Heavy-duty 4" adjustable legs

Installation notes:

• 3/4" NPT male gas connection with convertible pressure regulator
• Ships set up for natural gas with an LP conversion kit and reversible regulator included
• Install under a commercial exhaust hood by a licensed gas fitter, following local codes

Warranty:

• 2 years parts and labor from Star
