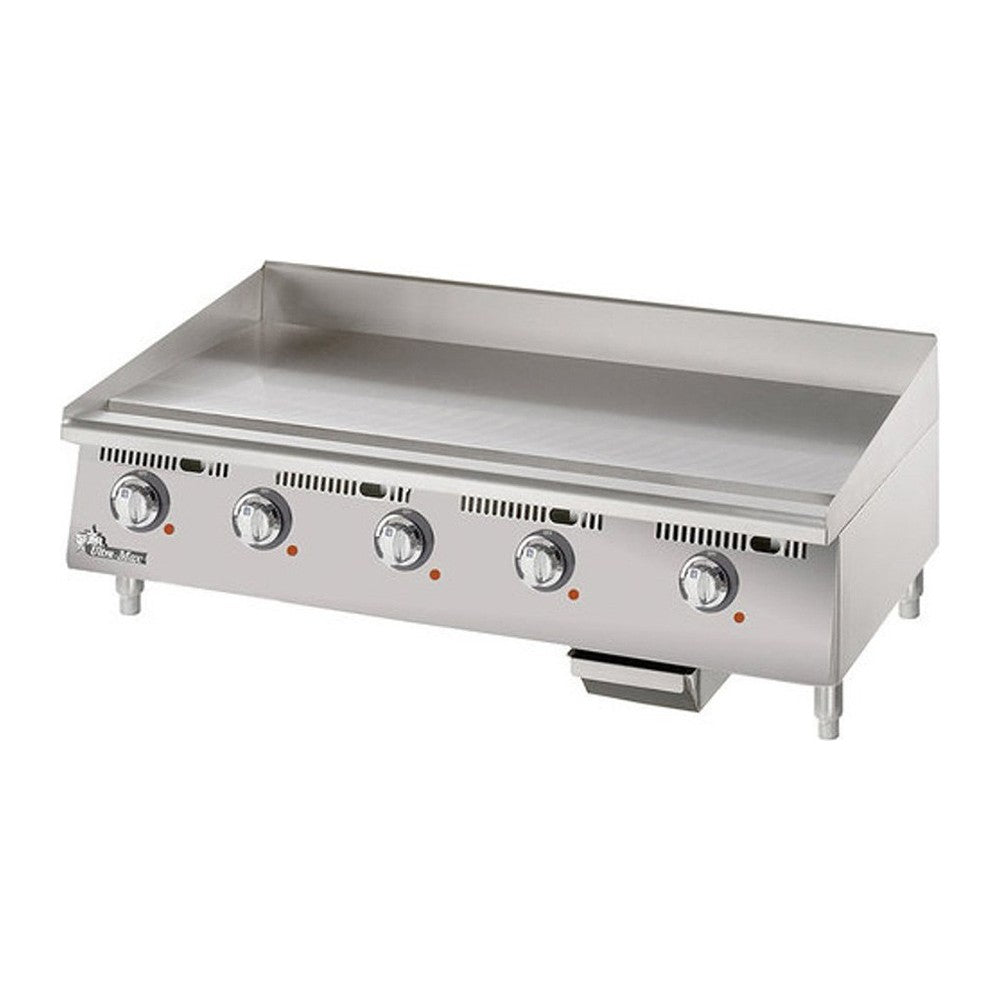

Star 748TA Ultra-Max 48" Electric Griddle, Thermostatic Controls, Polished Steel Plate, 17.4 kW, 208/240V

The Star 748TA is a 48-inch Ultra-Max electric countertop griddle with a 1-inch thick polished steel plate. Every 12-inch section has its own 4.35 kW heating zone and snap-action thermostat, so you can run different temperatures across the plate.

Best for:

• High-volume restaurants and diners
• Running several menu items at different temperatures at once
• Kitchens without gas service

Key specifications:

• Model: 748TA
• Cooking surface: 48" x 24"
• Plate: 1" thick polished steel
• Heat zones: 4 (one per 12")
• Electrical: 17.4 kW, 208/240V, field wired for single or three phase; single-phase amps 83.6 / 72.5 A (208V / 240V)
• Dimensions: 48" W x 33.6" D x 18" H
• Shipping weight: 520 lb

Features:

• 1" thick polished steel plate
• 4.35 kW of heat per 12" section
• Snap-action thermostats with sensors 3/16" below the surface, 150°F to 450°F
• 5.5" rear and side splash guards and a 3.5" wide grease trough
• Welded steel frame with stainless steel exterior
• 4" adjustable legs

Installation notes:

• Hard-wired: have a licensed electrician connect it for single- or three-phase service
• Specify 208V or 240V when ordering
• Install under a commercial exhaust hood per local codes

Warranty:

• 2 years parts and labor from Star
