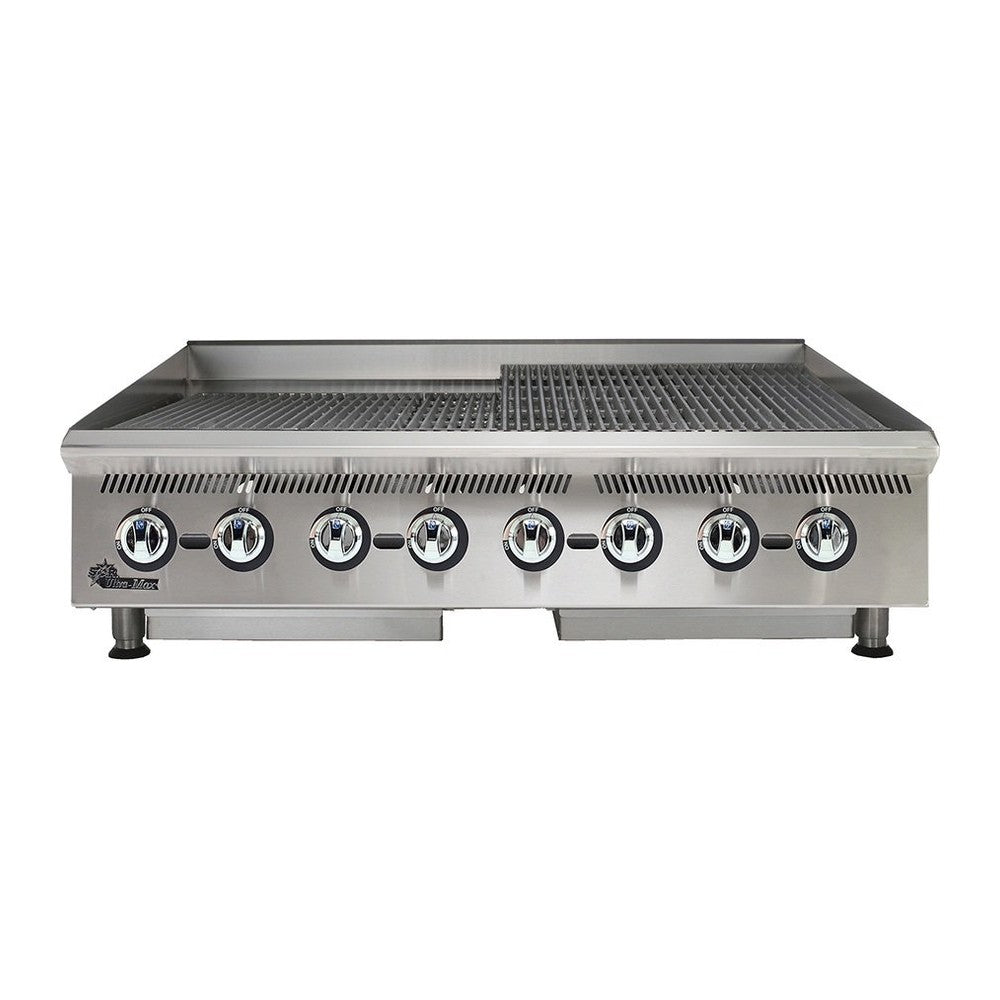

Star 8048CBB Ultra-Max 48" Gas Charbroiler, Lava Rock, 160,000 BTU

The Star 8048CBB is a 48-inch Ultra-Max lava rock charbroiler with a cast iron burner and its own control knob for every 6 inches of width, 20,000 BTU each. Lava rocks over the burners spread the heat and add a classic flame-grilled flavor.

Best for:

• High-volume steakhouses, grills and burger restaurants
• Cooking several proteins at different heat levels
• Catering and banquet kitchens

Key specifications:

• Model: 8048CBB
• Heat type: lava rock
• Grate area: 1,209 sq. in.
• Total input: 160,000 BTU/hr
• Gas: Natural gas or propane (specify when ordering)
• Dimensions: 48" W x 35.2" D x 18" H
• Shipping weight: 432 lb

Features:

• 20,000 BTU cast iron burner per 6" section, each with its own adjustable valve and standing pilot
• Grates adjust in 6" sections to sit flat or slanted
• High-capacity cast iron grates
• 5 lb of lava rock supplied per 12" of width
• 5" tapered splash guard and large water pan for easy cleanup
• Welded steel frame with stainless steel exterior and cool-touch bull nose
• 4" legs

Installation notes:

• 3/4" NPT gas connection; ships set up for natural gas or LP as ordered
• Install under a commercial exhaust hood by a licensed gas fitter, following local codes
• Equipment stand is sold separately

Warranty:

• 2 years parts and labor from Star
