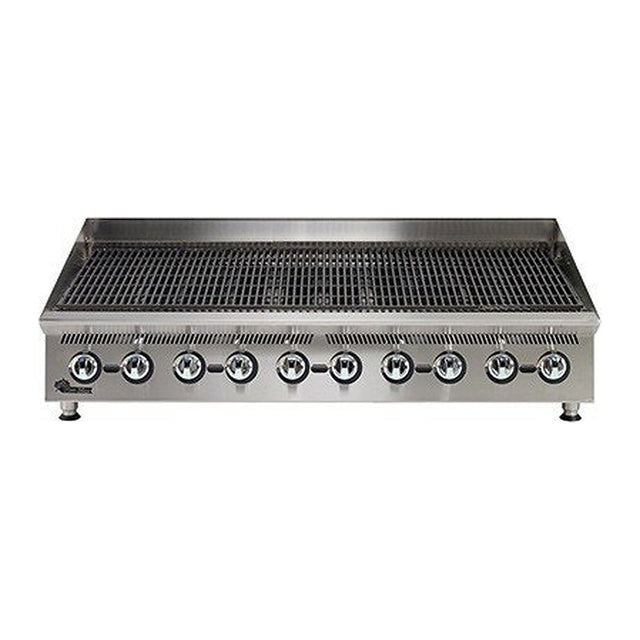

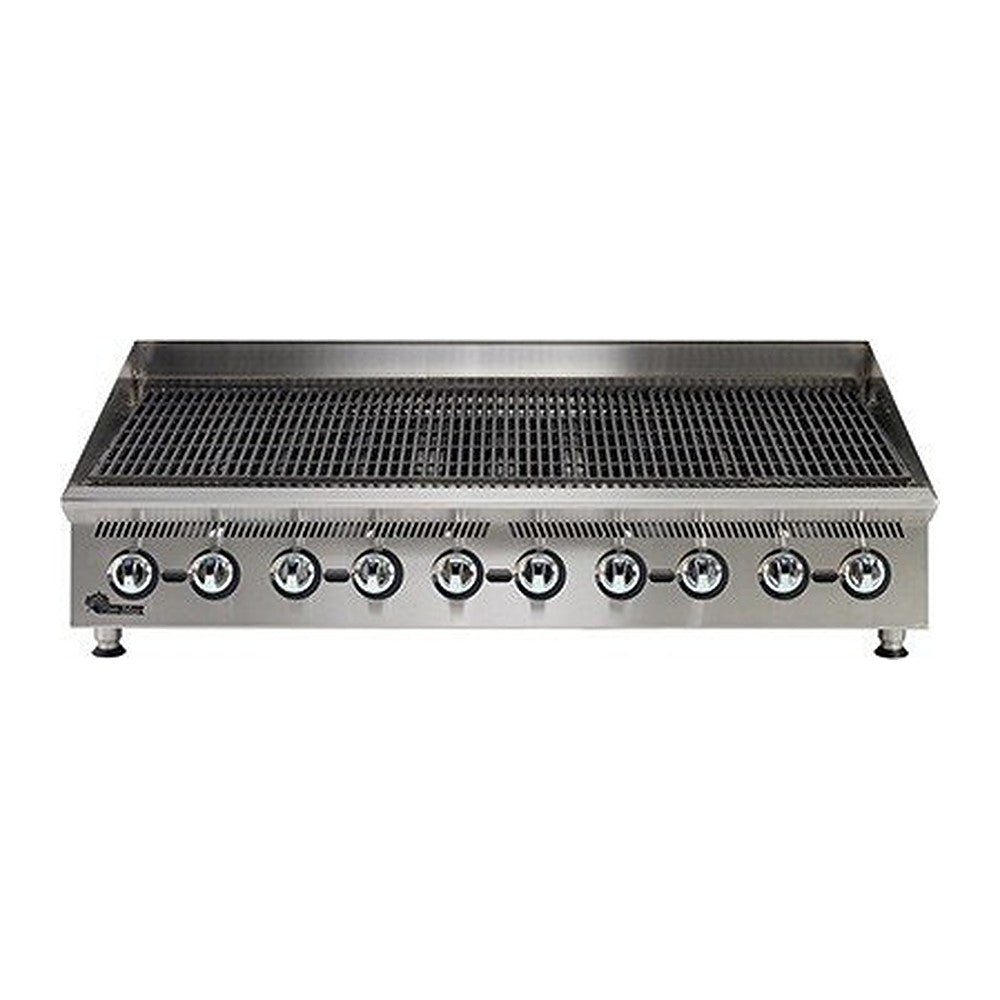

Star 8160RCBB Ultra-Max 60" Gas Charbroiler, Radiant, 200,000 BTU

The Star 8160RCBB is a 60-inch Ultra-Max radiant charbroiler with a cast iron burner and its own control knob for every 6 inches of width, 20,000 BTU each. Steel alloy radiants over the burners spread the heat evenly and cut down on flare-ups.

Best for:

• High-volume steakhouses, grills and burger restaurants
• Cooking several proteins at different heat levels
• Catering and banquet kitchens

Key specifications:

• Model: 8160RCBB
• Heat type: radiant
• Grate area: 1,512 sq. in.
• Total input: 200,000 BTU/hr
• Gas: Natural gas or propane (specify when ordering)
• Dimensions: 60" W x 35.2" D x 18" H
• Shipping weight: 503 lb

Features:

• 20,000 BTU cast iron burner per 6" section, each with its own adjustable valve and standing pilot
• Grates adjust in 6" sections to sit flat or slanted
• High-capacity cast iron grates
• Steel alloy radiants
• 5" tapered splash guard and large water pan for easy cleanup
• Welded steel frame with stainless steel exterior and cool-touch bull nose
• 4" legs

Installation notes:

• 3/4" NPT gas connection; ships set up for natural gas or LP as ordered
• Install under a commercial exhaust hood by a licensed gas fitter, following local codes
• Equipment stand is sold separately

Warranty:

• 2 years parts and labor from Star
