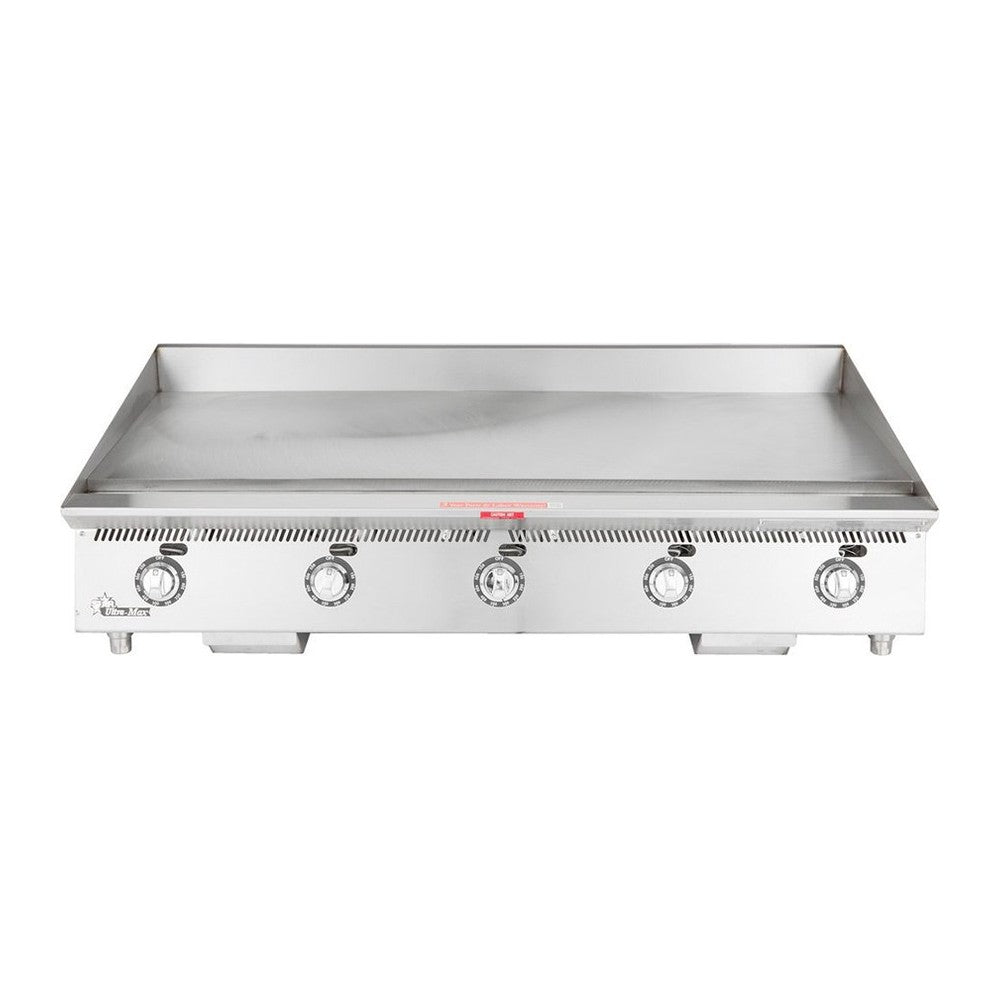

Star 860TA Ultra-Max 60" Gas Griddle, Snap-Action Thermostatic Controls, Polished Steel Plate, 150,000 BTU

The Star 860TA is a 60-inch Ultra-Max countertop gas griddle with a 1-inch thick polished steel plate and 5 30,000 BTU burners, one for each 12 inches of width. Mechanical snap-action thermostats sense the plate temperature in each 12-inch zone and hold it anywhere from 150°F to 550°F.

Best for:

• High-volume restaurants and diners
• Running several menu items at different temperatures at once
• Large breakfast and burger lines

Key specifications:

• Model: 860TA
• Cooking surface: 60" x 24"
• Plate: 1" thick polished steel
• Burners: 5
• Total input: 150,000 BTU/hr
• Controls: snap-action thermostatic, 150°F to 550°F
• Gas: Natural gas or propane (confirm gas type when ordering)
• Dimensions: 60" W x 34.2" D x 18" H
• Shipping weight: 656 lb

Features:

• 1" thick polished steel griddle plate for steady, even heat
• One 30,000 BTU burner per 12" section with standing pilot ignition
• Snap-action thermostat for each 12" section with sensors set 3/16" below the cooking surface
• 4.375" rear and side splash guards with a 3.5" wide grease trough
• Welded steel frame with a stainless steel exterior and corrosion-resistant base
• Two grease drawers
• 4" adjustable legs

Installation notes:

• 3/4" NPT male gas connection; confirm natural gas or propane when ordering
• Install under a commercial exhaust hood by a licensed gas fitter, following local codes
• Equipment stand is sold separately

Warranty:

• 2 years parts and labor from Star
