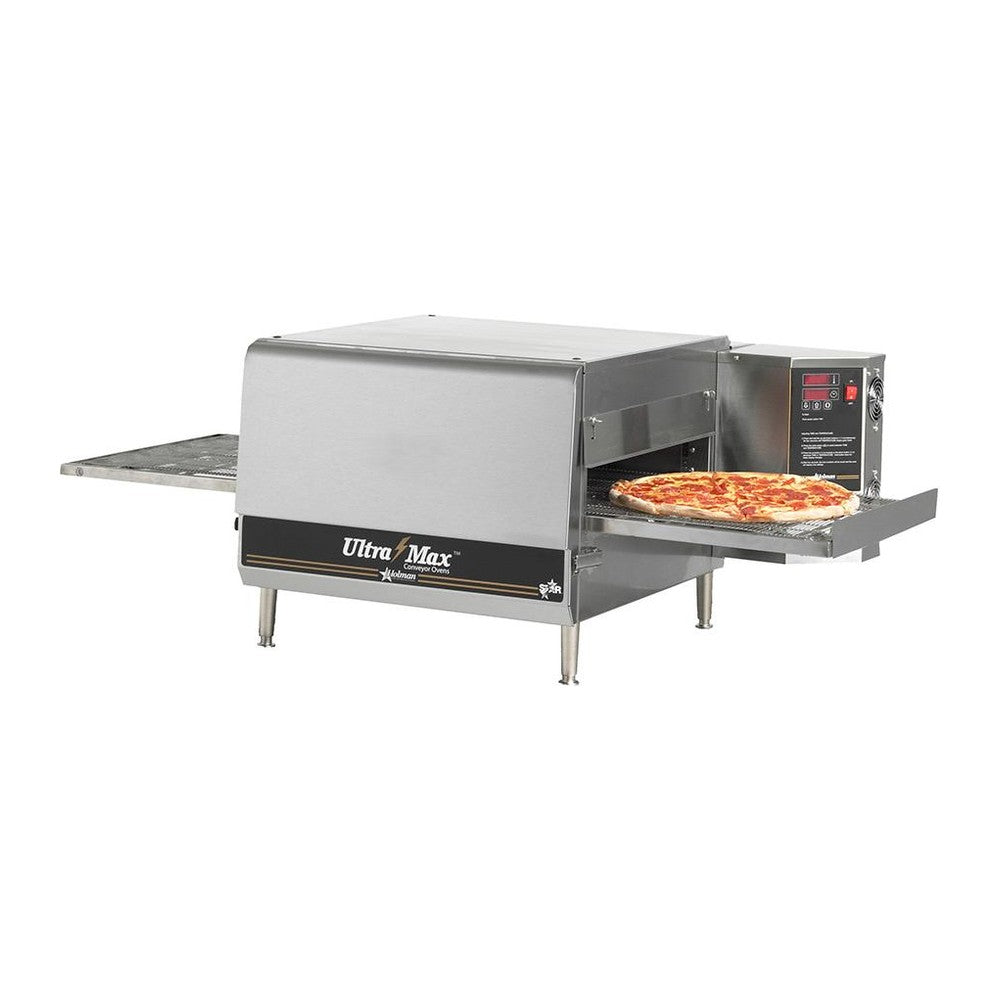

Star UM1833A Ultra-Max 37.2" Electric Impingement Conveyor Oven, 18" Stainless Belt, 6,400 W, 208/240V

The Star UM1833A is an Ultra-Max countertop electric impingement oven. A centrifugal fan pushes hot air through nozzle plates above and below an 18-inch stainless steel belt, cooking pizza, sandwiches, wings and cookies faster and more evenly than a radiant conveyor.

Best for:

• Pizzerias, bars and taverns
• Sandwich shops and convenience stores
• Concessions and schools that need simple, consistent cooking

Key specifications:

• Model: UM1833A
• Belt: 18" wide, 33" long, stainless steel
• Baking chamber: 24" long
• Product opening: 1.5" to 4"
• Electrical: 6,400 W, 208/240V, single phase; 31 / 27 A; 6-50P plug with 6 ft cord
• Dimensions: 37.2" W x 30.4" D x 20" H
• Shipping weight: 210 lb

Features:

• Hot air impingement through upper and lower nozzle plates
• 18" wide stainless steel conveyor belt, 33" overall length
• 24" long baking chamber with an adjustable 1.5" to 4" opening
• Electronic controls with LED display and six factory presets
• Removable front panel for cleaning and changing nozzle plates
• Cooling fan draws outside air over the control box
• Stacks two high
• Stainless and aluminized steel body

Installation notes:

• Specify 208V or 240V when ordering
• Needs a 6-50R receptacle on a properly sized circuit
• Factory-paid start-up is included; start-up by a factory-approved service agent applies to the warranty

Warranty:

• 1 year parts and labor from Star
