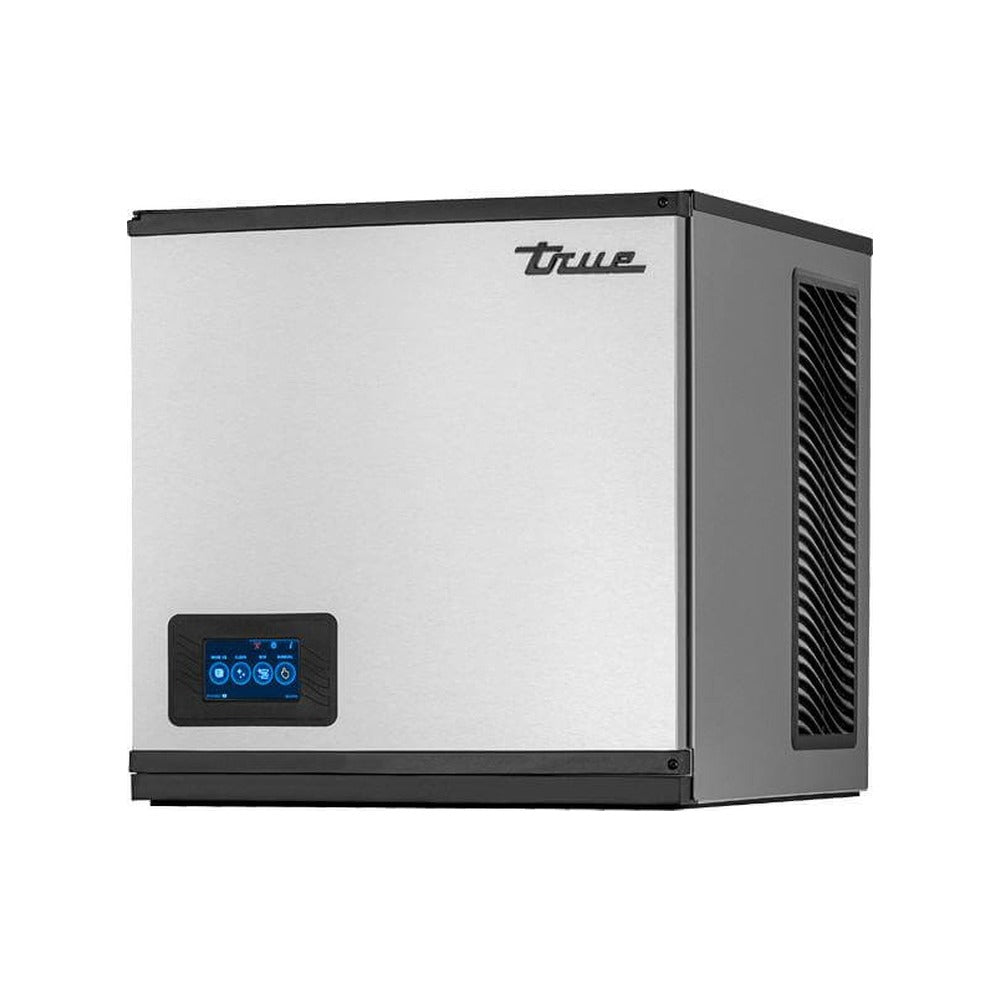

True TCIM-422-FA1-A, 22" Air Cooled Full Cube Ice Machine, 440 Lb

Model specifics: up to 440 lbs per 24 hours · 22" wide · full cube ice · air-cooled · 115/60/1 · ice machine only, bin sold separately

The True TCIM-422-FA1-A is a 22-inch modular cube ice machine from the True Ice Series. It makes up to 440 pounds of full cube ice in 24 hours at 70°F air and 50°F water, and about 320 pounds at 90°F air and 70°F water. At 22 inches wide and just 22 inches tall, it is the most compact head in the True Ice Series, a good match for cafes, small bars, offices and break rooms.

Full cubes (7/8" x 7/8" x 7/8") melt slowly and look clean in the glass, the classic choice for cocktails, soft drinks and bagged ice.

It is air-cooled, so no condenser water line is needed. Leave 6 inches of clearance on the left, right and back for air intake and exhaust. True rates it for room temperatures from 35°F to 110°F, and the quiet fan makes it suitable for front-of-house installs.

It runs on standard 115-volt single-phase power with a 15 amp minimum circuit ampacity, so most locations need no special wiring.

Features:

• TrueNcapsuL8® evaporator: fully insulated and sealed to improve efficiency and keep mold, bacteria and biofilm off the back of the evaporator plate
• Fast cycle times with no harvest assist needed
• TrueTouch® 4.3-inch touchscreen with live ice-level monitoring, production scheduling, system status and plain-language diagnostics
• Time-of-Flight ice level sensing, so no thermostat kit is needed
• Visual, audible and push alerts; built-in high and low pressure transducers for gauge-free service
• TrueGuard™ antimicrobial protection built into the molded components
• One-touch cleaning and tool-free removable parts
• TrueTech® clear-coated exterior resists corrosion and fingerprints
• Removable air filter and micro-channel condenser
• R290 natural refrigerant (4.3 oz charge)
• ENERGY STAR® model per True
• Optional TrueZone® air purification accessory (sold separately)

Specifications:

• Model: TCIM-422-FA1-A
• Series: True Ice Series modular cube ice machine
• Ice type: Full Cube, 7/8" x 7/8" x 7/8"
• Ice production: up to 440 lbs / 24 hr (70°F air / 50°F water); about 320 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 22" x 24" x 22"
• Electrical: 115/60/1, 15 amp minimum circuit ampacity
• Condenser: Air-cooled
• Refrigerant: R290, 4.3 oz
• Peak heat of rejection: 5,700 BTU/hr
• Water connections: 1/2" FNPT inlet, 3/4" FNPT outlet
• Ambient air temperature: 35°F to 110°F
• Water temperature: 35°F to 100°F
• Water pressure: 20 to 100 psi
• Exterior: Aluminum, TrueTech® clear coat
• Required bin width: 22" (or a wider True bin with adapter)
• Shipping weight: 164 lbs
• Warranty: Three-year parts & labor; additional two-year evaporator plate part & labor (5 years total); additional two-year compressor part (5 years total)

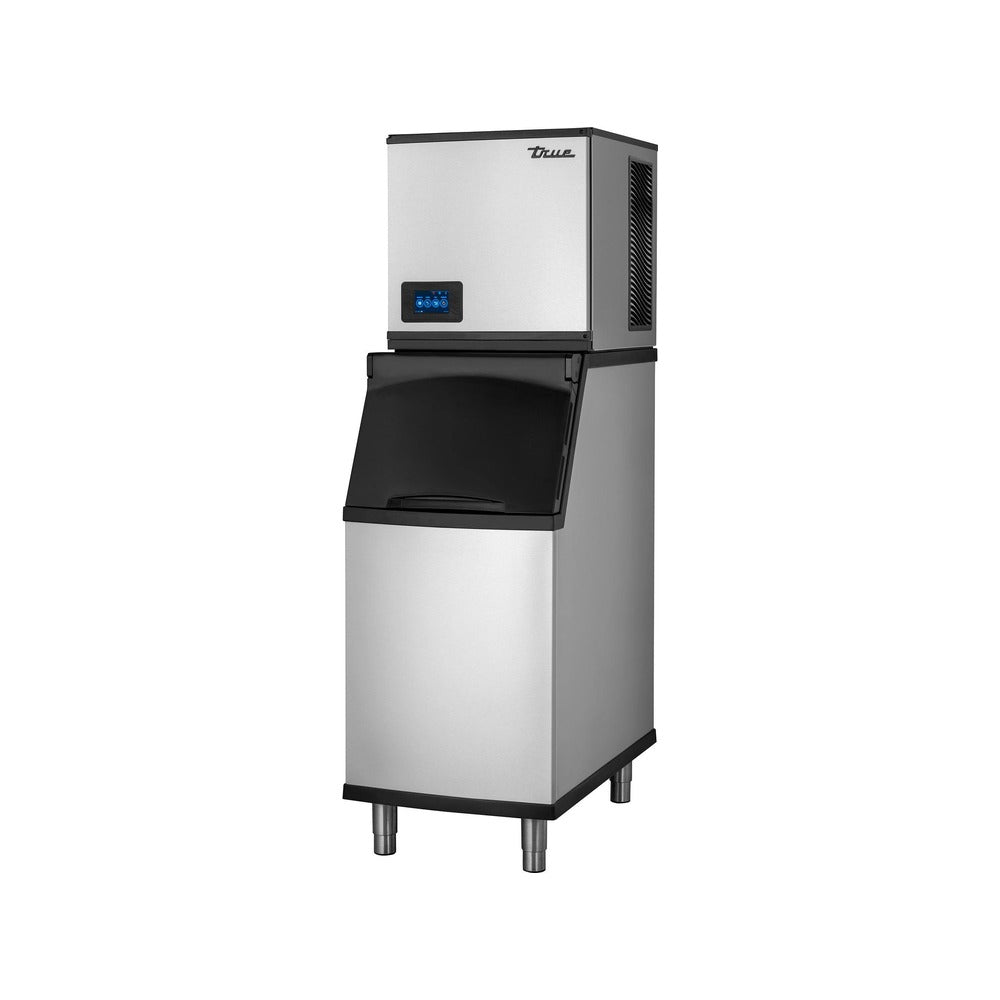

Matching True bins: the 22" TIB-322-A (250 lb) and TIB-422-A (360 lb) bins fit this head directly; a 30" TIB-430-A or TIB-530-A bin needs True's 8" bin top adapter (part #228242); on the 48" TIB-948-A, one head mounts with the 8" and 18" adapters (#228242 and #228244), or two 22" heads mount side by side with the 4" adapter (#228243). Adapters sold separately.

True warranty: three-year parts & labor warranty on the ice machine, plus an additional two-year evaporator plate part & labor warranty and an additional two-year compressor part warranty (5 years total on each). True recommends a water filtration system, with the filter changed every six months; failures caused by lack of water filtration are not covered. Commercial ice machines installed in a residential setting receive a limited one-year parts and labor warranty.

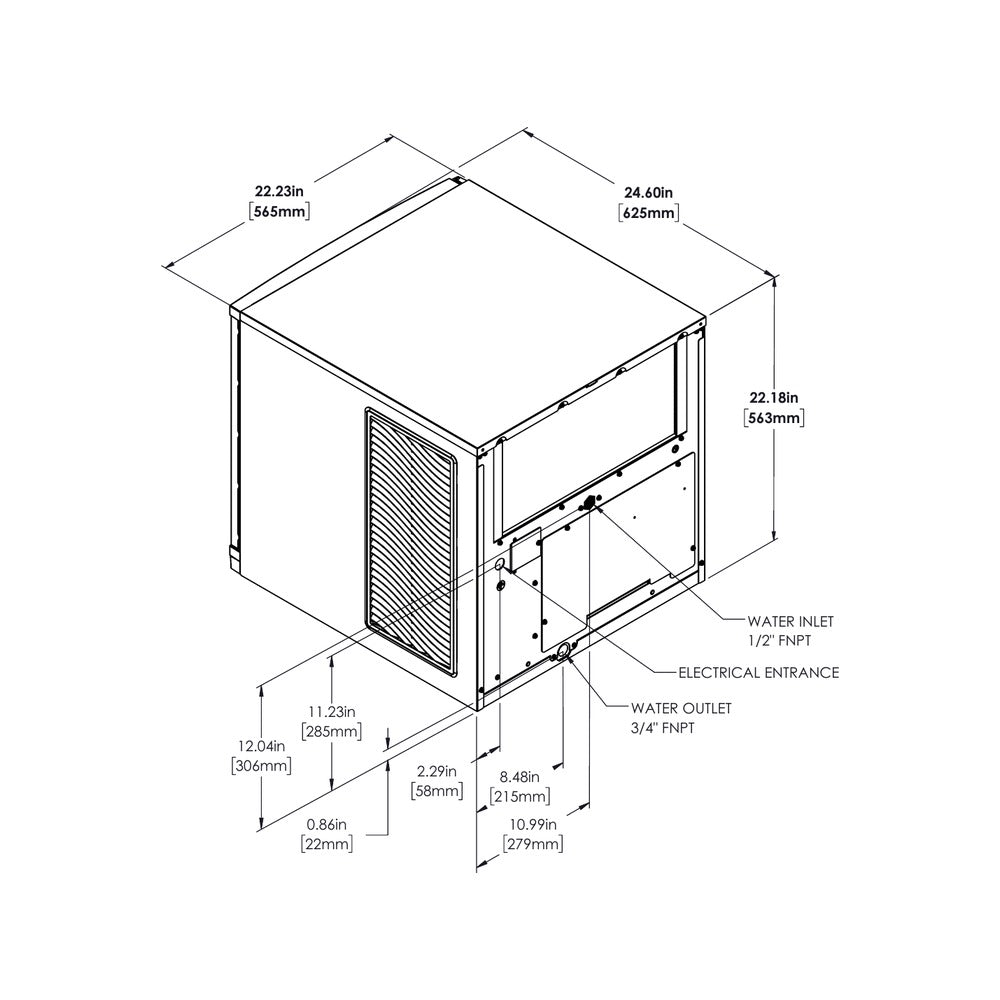

Please note: this is the ice machine only. The ice storage bin, bin top adapter, water filter and TrueZone accessory are sold separately. The attached True spec sheet has full dimensions and utility locations.
