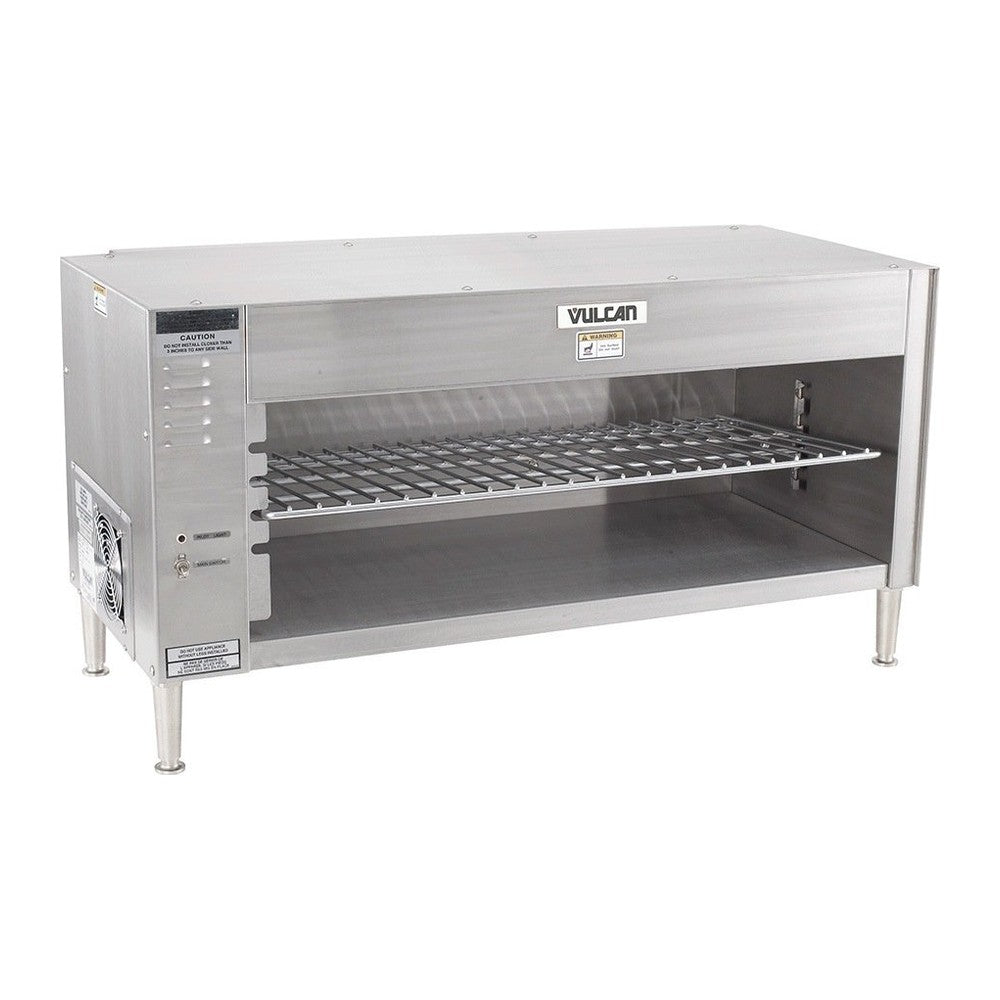

Vulcan 1024-1, 27" Electric Quartz Cheese Melter, Countertop, 2.4 kW, 208V

The Vulcan 1024-1 is a 27-inch electric cheese melter with instant-on quartz heaters. It idles at 25% power and jumps to full heat the moment a plate touches the rack, which saves energy between orders, and it needs no gas line or hood connection for gas.

Best for:

• Kitchens without gas service
• Sandwich, pizza and casual dining lines finishing plates to order
• Operators who want lower energy use between rushes

Key specifications:

• Model: 1024-1
• Input: 2.4 kW, 208V single phase, 11.5 A
• Interior: 21" W x 14-1/4" D x 9-1/2" H
• Rack: 20" x 13-1/2", 4 positions (2" to 6" from the heaters)
• Controls: solid state with master on/off switch
• Dimensions: 27" W x 17.13" D x 19.25" H
• Shipping weight: 75 lb

Features:

• Rack-activated switch powers heaters to 100% when product is placed on the rack
• Idles at 25% heat with no product on the rack
• Instant-on, instant-off top quartz heaters that snap in for easy replacement
• 1" insulation on top, sides and back
• Fan-cooled electrical compartment
• Stainless steel front, sides, top and interior
• 4" adjustable legs

Installation notes:

• Hard-wired to a 208V single-phase circuit; field wiring connects on the left side
• Countertop on the included legs or wall mount
• This SKU is the 208V version

Warranty:

• 1 year limited parts and labor from Vulcan; 90 days on heating elements
