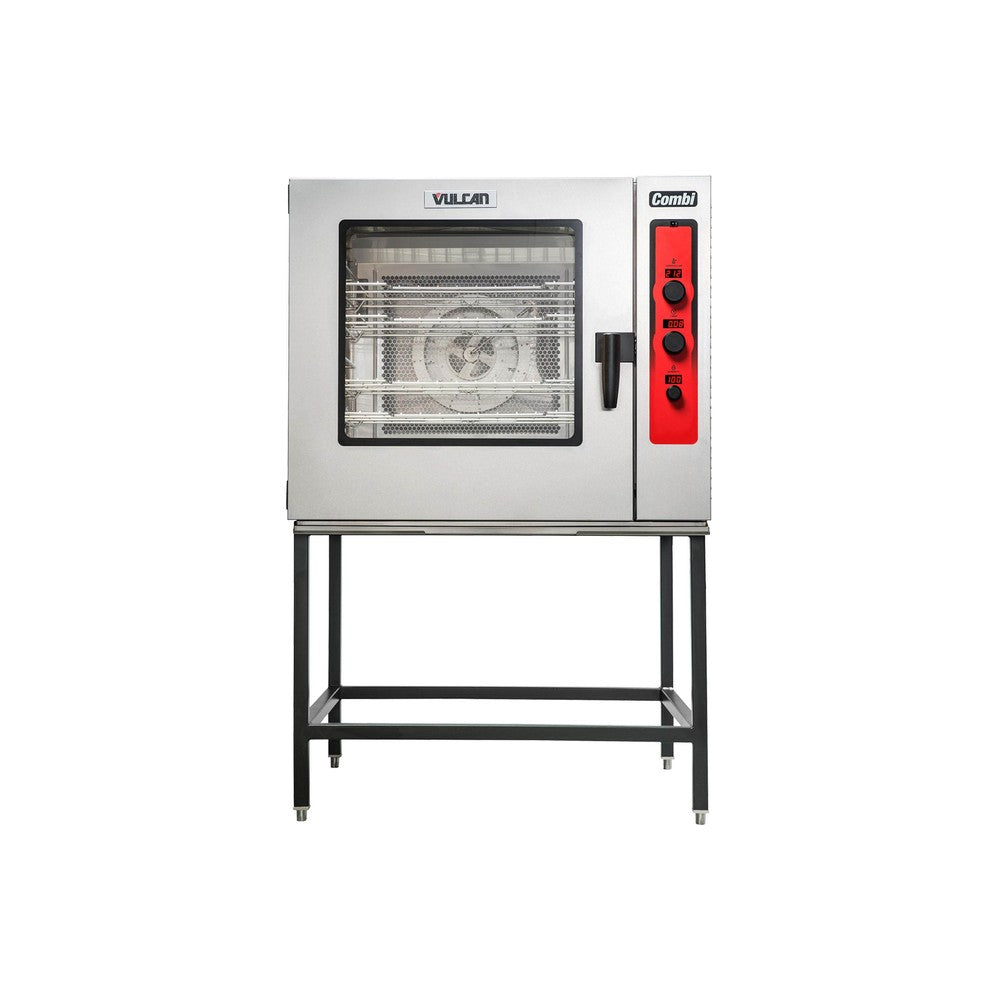

Vulcan ABC7E-480, Electric Boilerless Combi Oven, 7 Pan, Knob Controls, 480V 3 Phase, 24 kW

The Vulcan ABC7E-480 is a full-size ABC boilerless combi oven with simple three-knob controls for temperature, time and humidity. Set the temperature and the oven adjusts humidity on its own, so staff can steam, roast, bake, air-fry, proof and retherm without training on a touchscreen. It holds 7 full-size sheet pans (18" x 26") or 14 steam table pans (12" x 20").

Best for:

• Restaurants, hotels and institutions replacing several pieces of equipment with one oven
• Steaming, roasting and baking in volume with consistent results
• Operators who want less water and energy use than a boiler combi

Key specifications:

• Model: ABC7E-480
• Capacity: 7 full-size sheet pans (18" x 26") or 14 steam table pans (12" x 20")
• Power: 480V, 3 phase, 24 kW, 28.9 A
• Boilerless (direct steam)
• Overall size: 42.2" W x 43-1/2" D x 35" H
• Shipping weight: 580 lb

Features:

• Three-knob control for temperature, time and humidity with large LED displays
• Automatic humidity adjustment after setting temperature
• Temperature 80°F to 450°F; humidity 0-100%; timer up to 23:59
• Boilerless direct-steam design
• Auto-reversing fan with electronic braking
• Four stainless grab-and-go racks
• Halogen cavity light behind heat-reflective tempered glass door
• Fully insulated stainless steel cavity
• Diagnostics through the controls or USB

Installation notes:

• Requires a cold water supply (filtered and unfiltered) and a 1-1/2" drain; water treatment is recommended
• Hard-wired electrical connection by a licensed electrician
• Install with the clearances on the spec sheet; a hood may be required by local code

Warranty:

• 1 year limited parts and labor; 2 years for K-12 school customers from Vulcan
