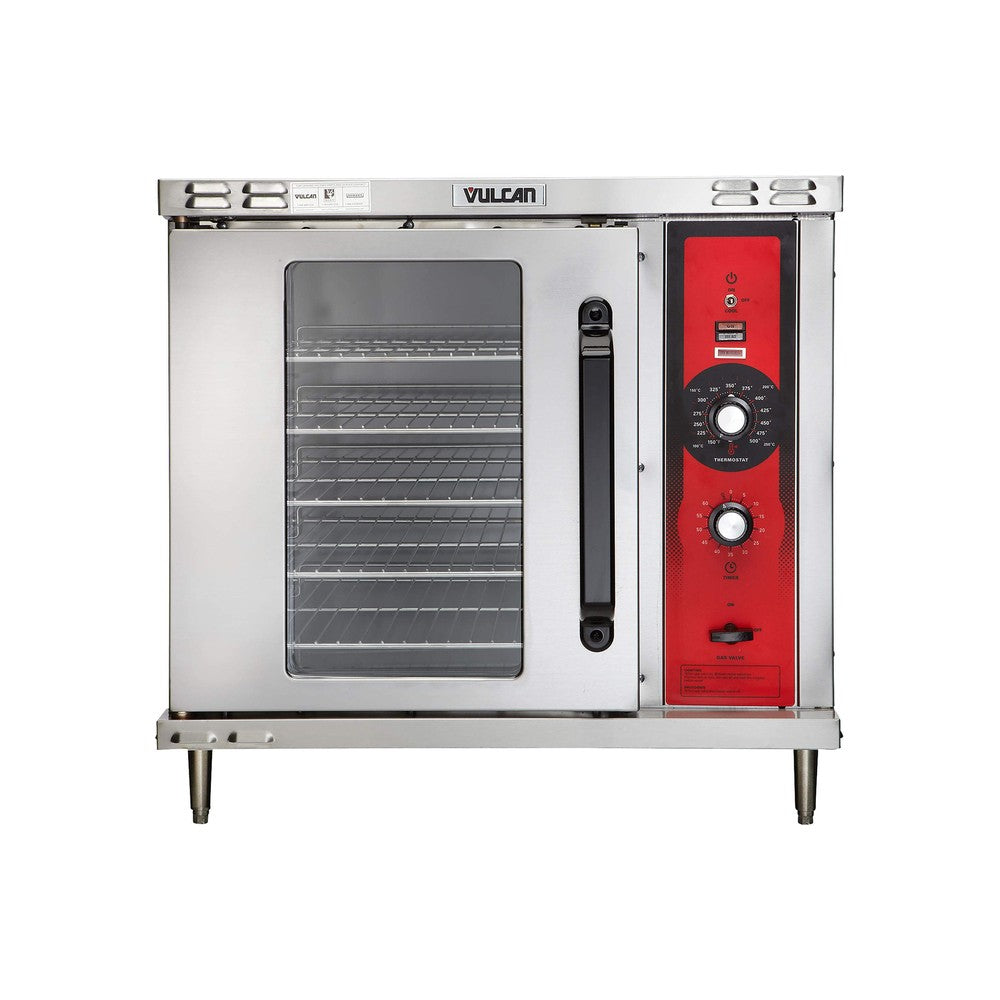

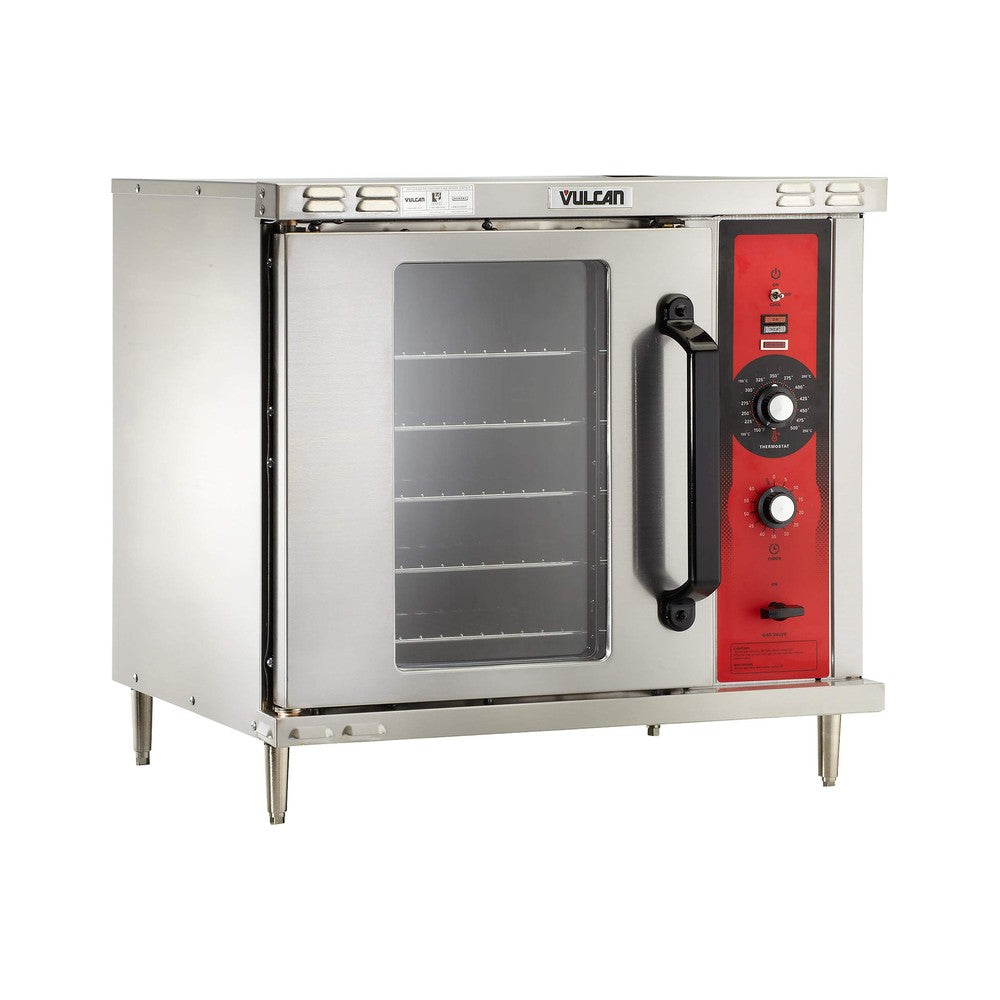

Vulcan ECO2D, Electric Half Size Convection Oven, Single Deck, Solid State Controls, 5.5 kW

The Vulcan ECO2D is a single-deck electric convection oven in a compact half-size cabinet. A two-speed 1/2 HP blower and solid state controls from 200° to 500°F give even results for baking, roasting and reheating. Input is 5.5 kW.

Best for:

• Small kitchens, cafes and bakeries with limited space
• Even browning of sheet-pan items, breads and proteins
• Kitchens replacing older Vulcan or comparable convection ovens

Key specifications:

• Model: ECO2D
• Capacity: 5 half-size sheet pans
• Oven cavity: 15-1/4" W x 21" D
• Input: 5.5 kW
• Controls: solid state with 60-minute timer
• Overall size: 30" W x 27.2" D x 29" H
• Shipping weight: 250 lb

Features:

• Stainless steel front, sides, top and rear enclosure
• Stainless steel door with double pane window and cool-to-touch handle
• Nine-position rack guide with five nickel-plated racks
• 4" adjustable chrome plated legs
• Solid state temperature control, 200° to 500°F
• 60-minute timer with alarm
• Two-speed 1/2 HP blower motor
• Oven cool switch for fast cool-down
• Porcelain enamel on steel interior
• Requires 208/240V, 60 Hz, 1 or 3 phase

Installation notes:

• Requires 208/240V, 60 Hz, 1 or 3 phase power (specify when ordering)
• Check amperage on the spec sheet for your voltage and phase
• Install with clearances per the spec sheet and local codes

Warranty:

• 1 year parts and labor from Vulcan
