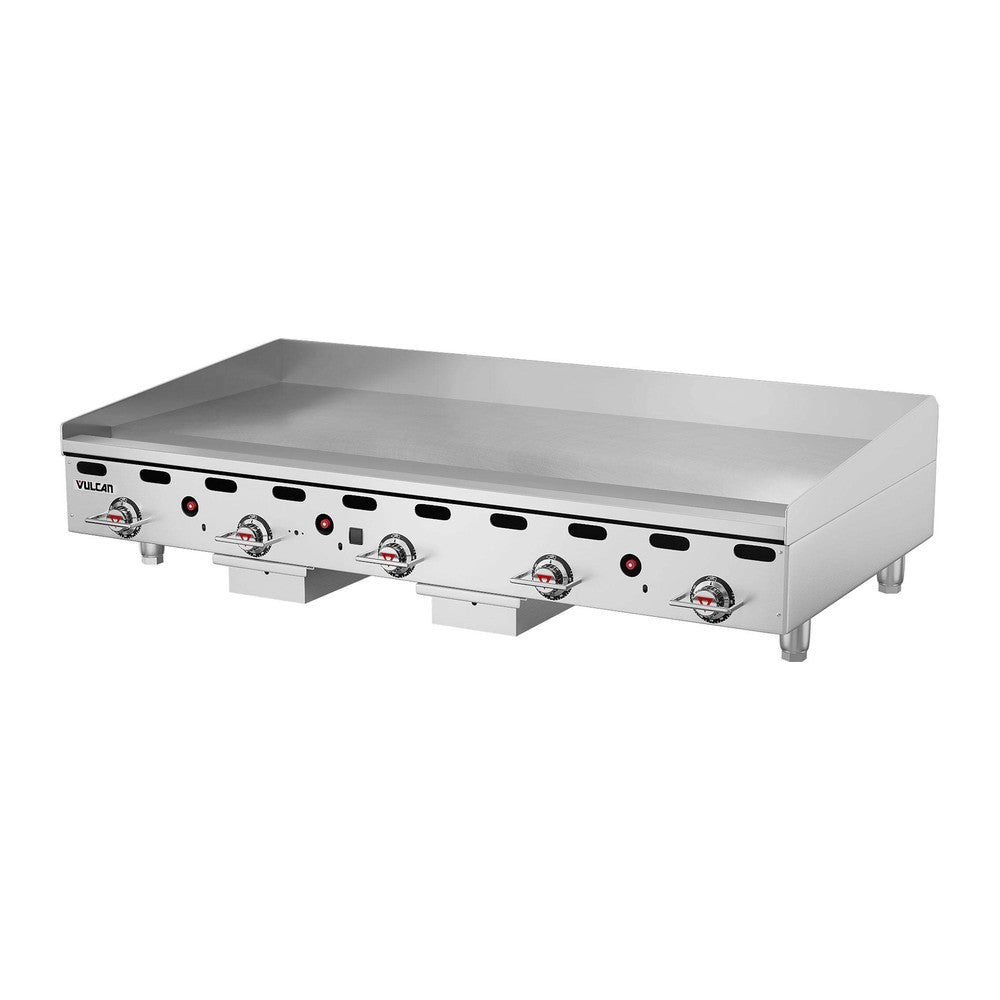

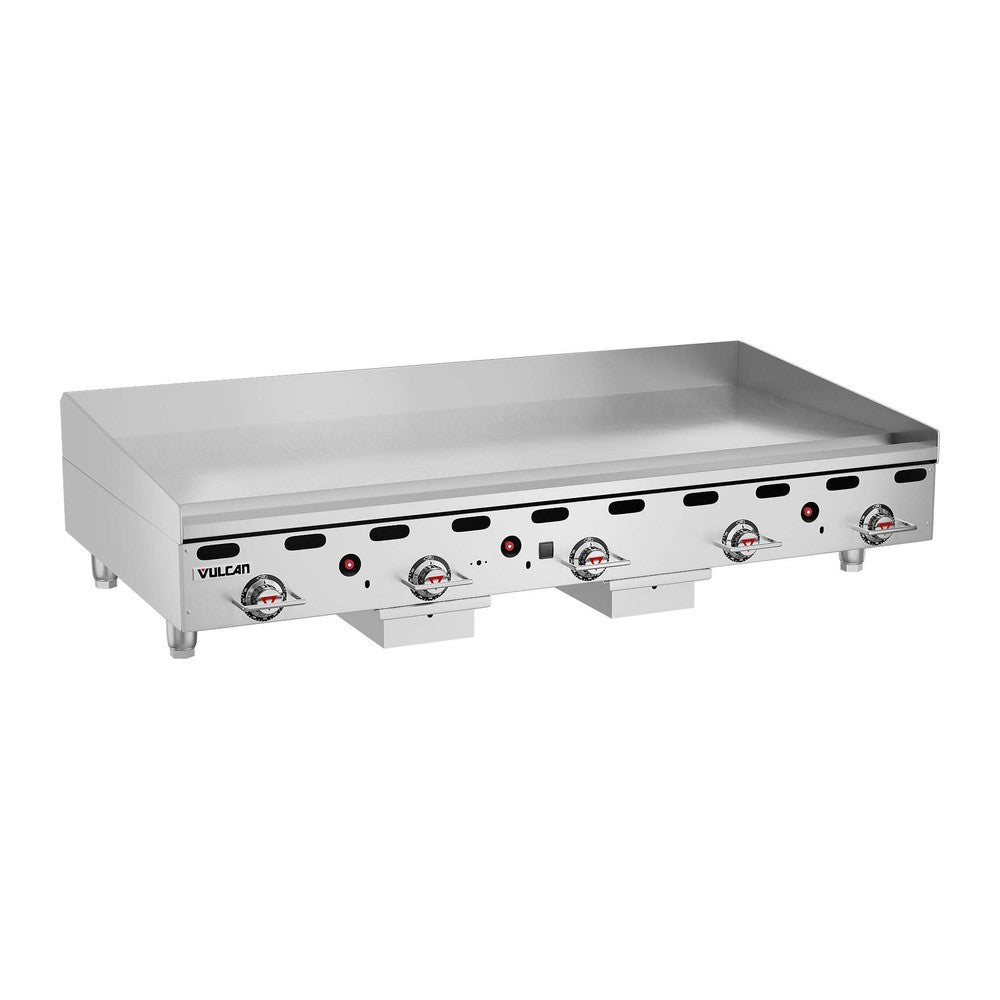

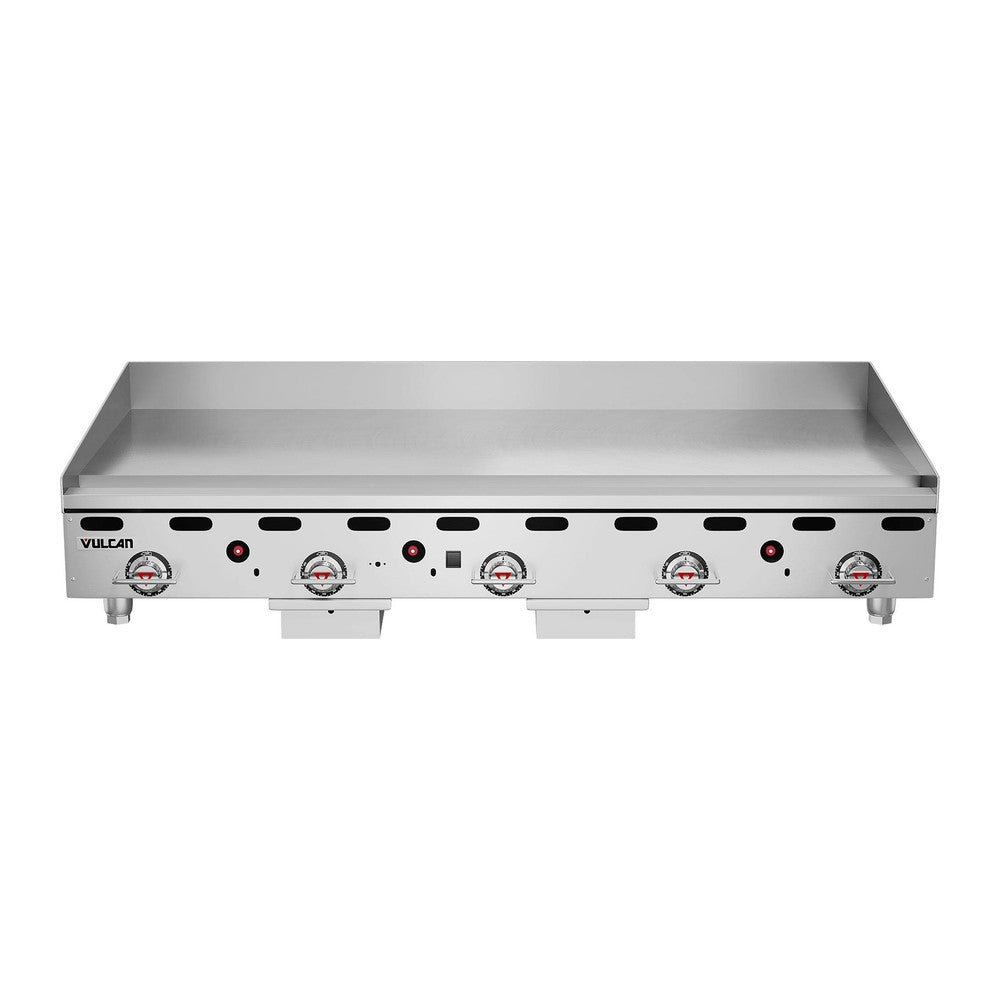

Vulcan MSA60-101, 60" Heavy Duty Natural Gas Griddle, Countertop, Snap Action Thermostats, 135,000 BTU

The Vulcan MSA60-101 is a 60-inch heavy-duty countertop griddle from the MSA series. A 1-inch polished steel plate holds heat under heavy loads, and an embedded snap-action thermostat in every 12 inches of plate gives each zone its own setting from 200°F to 550°F. Total input is 135,000 BTU on natural gas.

Best for:

• High-volume breakfast, burger and sandwich lines
• Kitchens that need precise, zoned griddle temperatures
• Operators who want a thick plate that recovers fast

Key specifications:

• Model: MSA60-101
• Cooking surface: 60" x 24", 1" steel plate
• Burners: 5
• Total input: 135,000 BTU/hr
• Controls: snap action thermostat
• Overall size: 60" W x 31-1/2" D x 15-1/4" H
• Shipping weight: 650 lb

Features:

• 1" thick polished steel plate, 60" x 24" cooking surface
• One 27,000 BTU/hr U-shaped burner and one snap-action thermostat per 12" of width, 200°F to 550°F
• Pilot safety valve for every two burners shuts off gas if the pilot goes out
• Stainless steel front, sides and "Cool Bullnose" front ledge
• 4" stainless back splash and tapered side splashes
• 3-1/2" wide fully welded grease gutter and chute
• Stainless steel 6 qt grease drawers (2)
• Chrome knob guards and bottom heat shields
• 11" low-profile cooking height on 4" adjustable legs

Installation notes:

• 3/4" rear gas connection; a gas pressure regulator is supplied
• This listing is the natural gas model; the propane version is model MSA60-102
• Install under a ventilation hood and connect by a licensed installer per local codes

Warranty:

• 1 year limited parts and labor from Vulcan
