Vulcan V4B36C-1, 36" Natural Gas Heavy Duty Range, 4 Burner, Convection Oven, 172,000 BTU

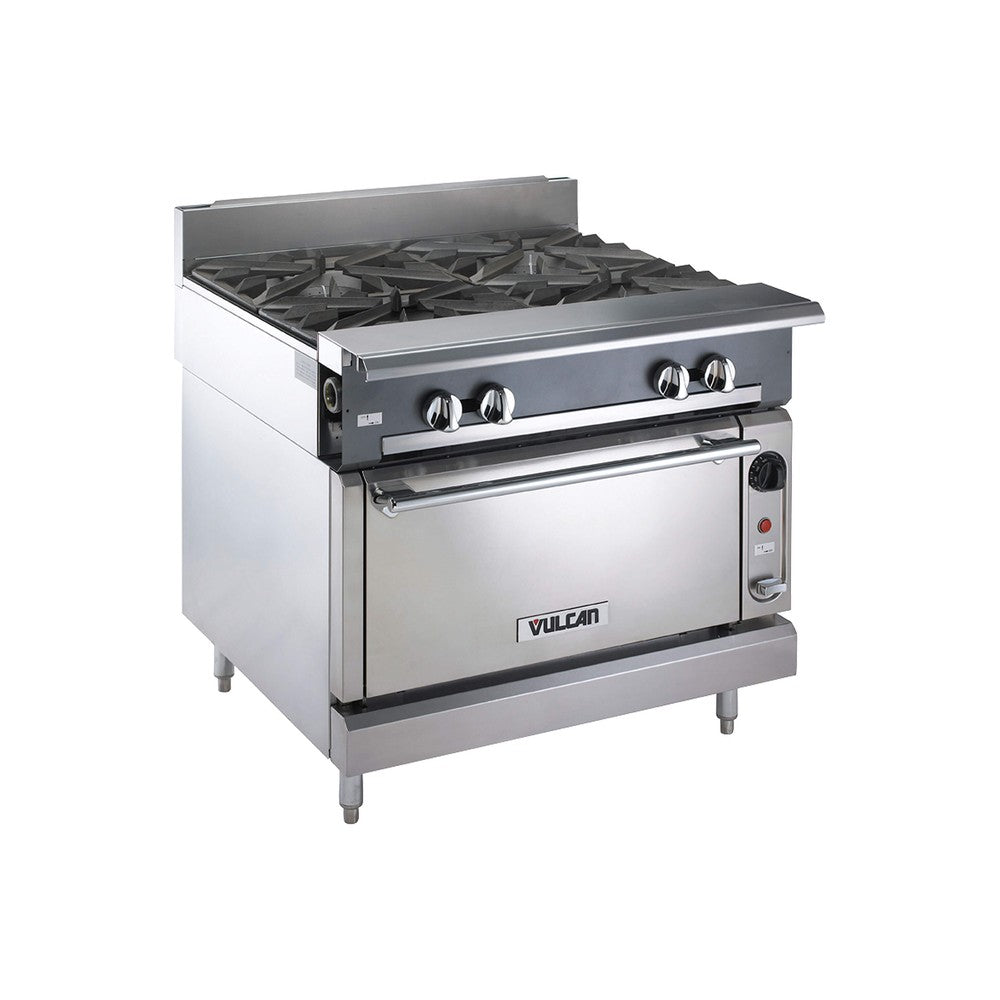

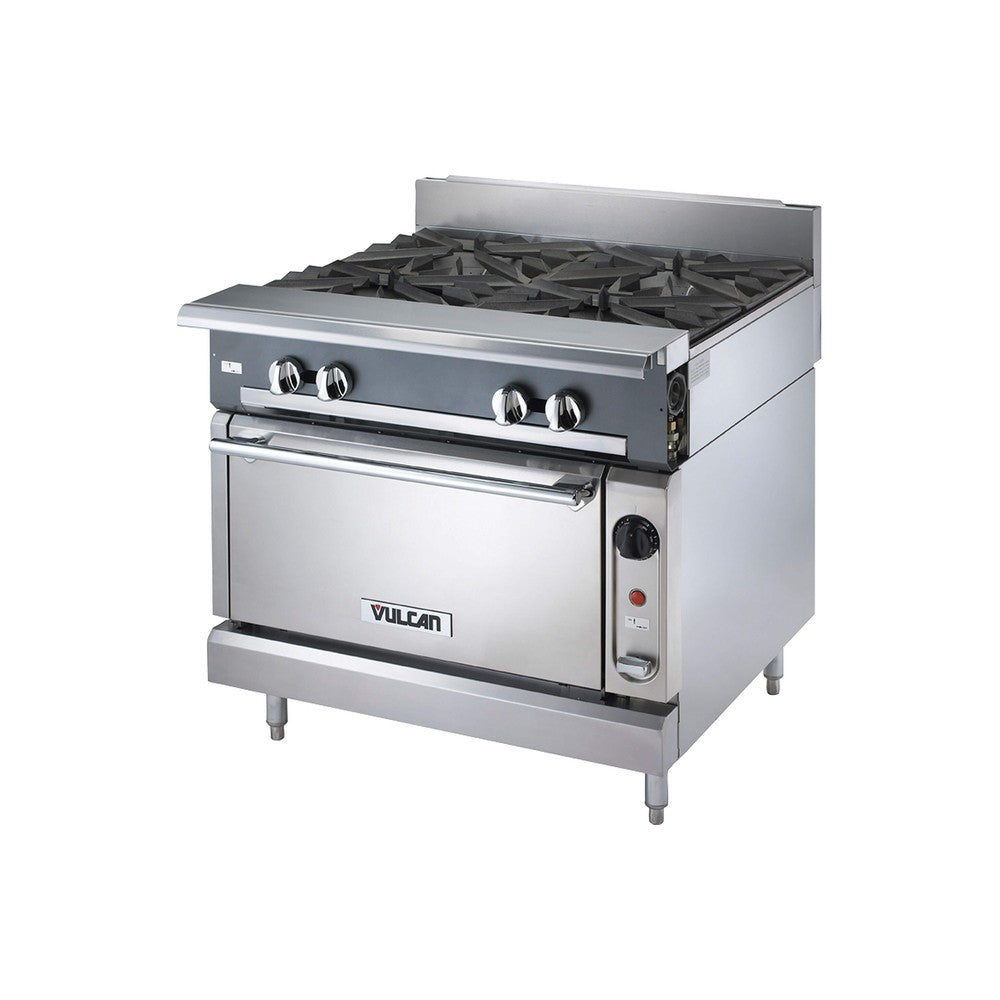

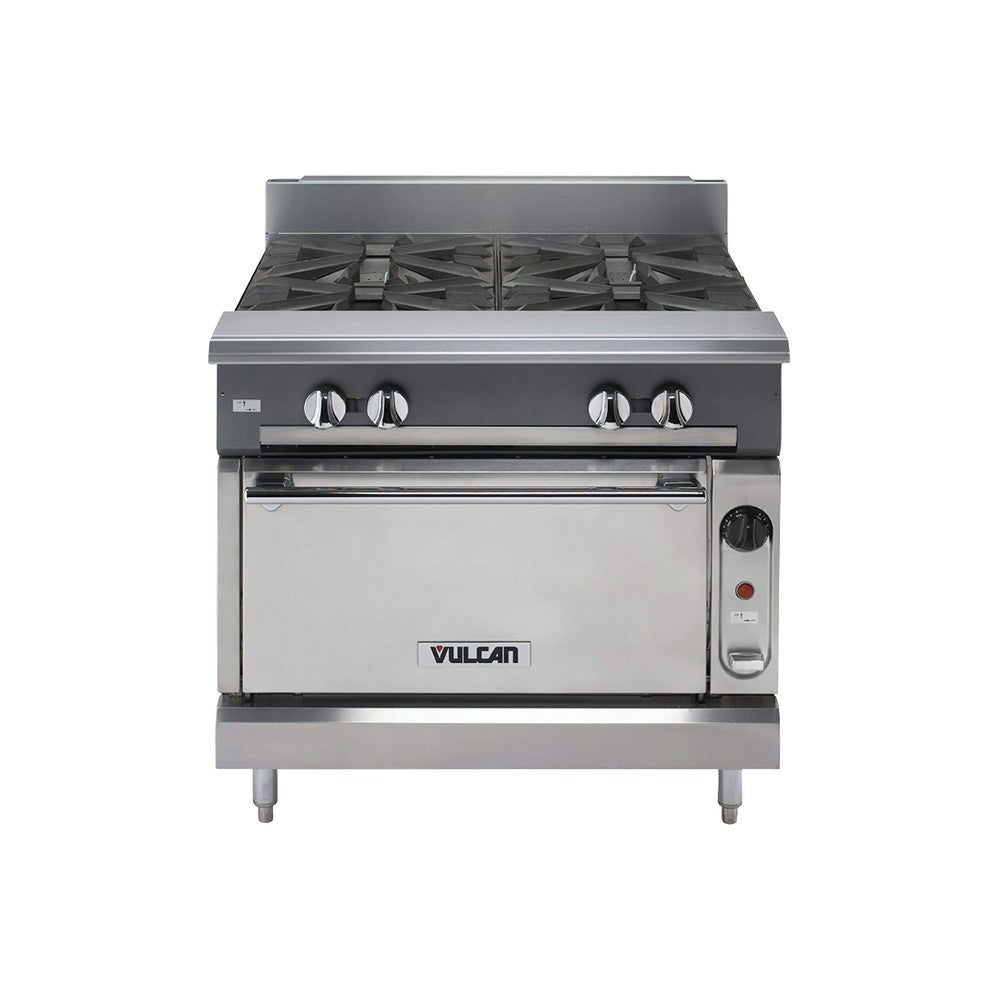

The Vulcan V4B36C-1 is a 36-inch V series heavy-duty range with 4 open burners over a convection oven. V series sections are modular and battery-ready, with a 1-1/4" front gas manifold, so they can be lined up with other Vulcan heavy-duty units into a full cooking line. Total input is 172,000 BTU on natural gas.

Best for:

• Hotels, institutions and high-volume restaurants
• Kitchens building a modular heavy-duty cooking line
• Operators who need a range built for constant use

Key specifications:

• Model: V4B36C-1
• Top: 4 open burners
• Total input: 172,000 BTU/hr, natural gas
• Oven: convection oven, 32,000 BTU/hr, 27" W x 27" D x 13" H
• Overall size: 36" W x 41-7/8" D x 40-1/2" H
• Shipping weight: 715 lb

Features:

• Four 35,000 BTU/hr open burners with lift-off heads
• Heavy-duty 18" cast grates
• Convection Oven, 32,000 BTU/hr, 27" W x 27" D x 13" H porcelain cavity
• Oven temperature 175°F to 550°F
• Two oven racks
• Individual pilots and controls for each burner
• Stainless steel front, top ledge, burner box, sides, base and 4" stub riser
• 6" adjustable stainless steel legs

Installation notes:

• 1-1/4" front gas manifold with a 1-1/4" rear connection (capped); can be battery-connected to other V series units
• Convection oven fan motor needs a 115V electrical connection
• This listing is the natural gas model; the propane version is model V4B36C-2
• Install under a ventilation hood and connect by a licensed installer per local codes

Warranty:

• 1 year parts and labor from Vulcan
