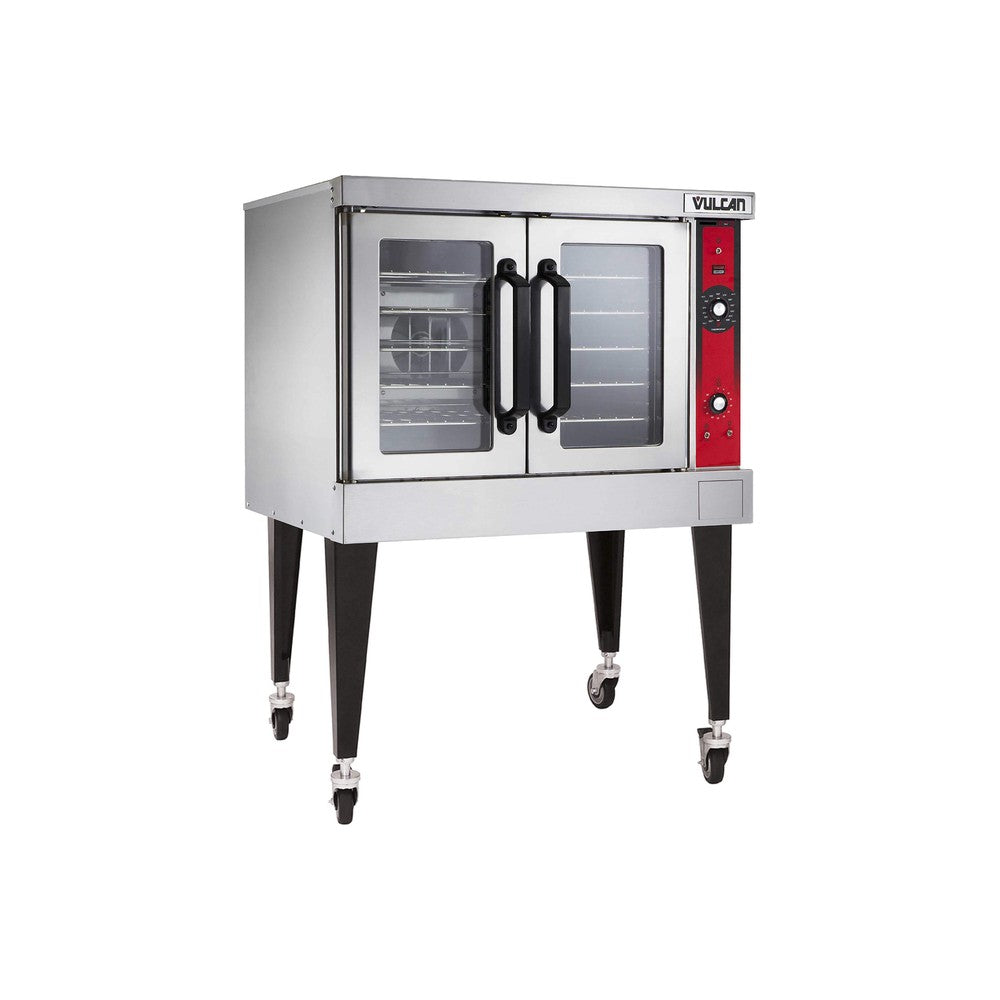

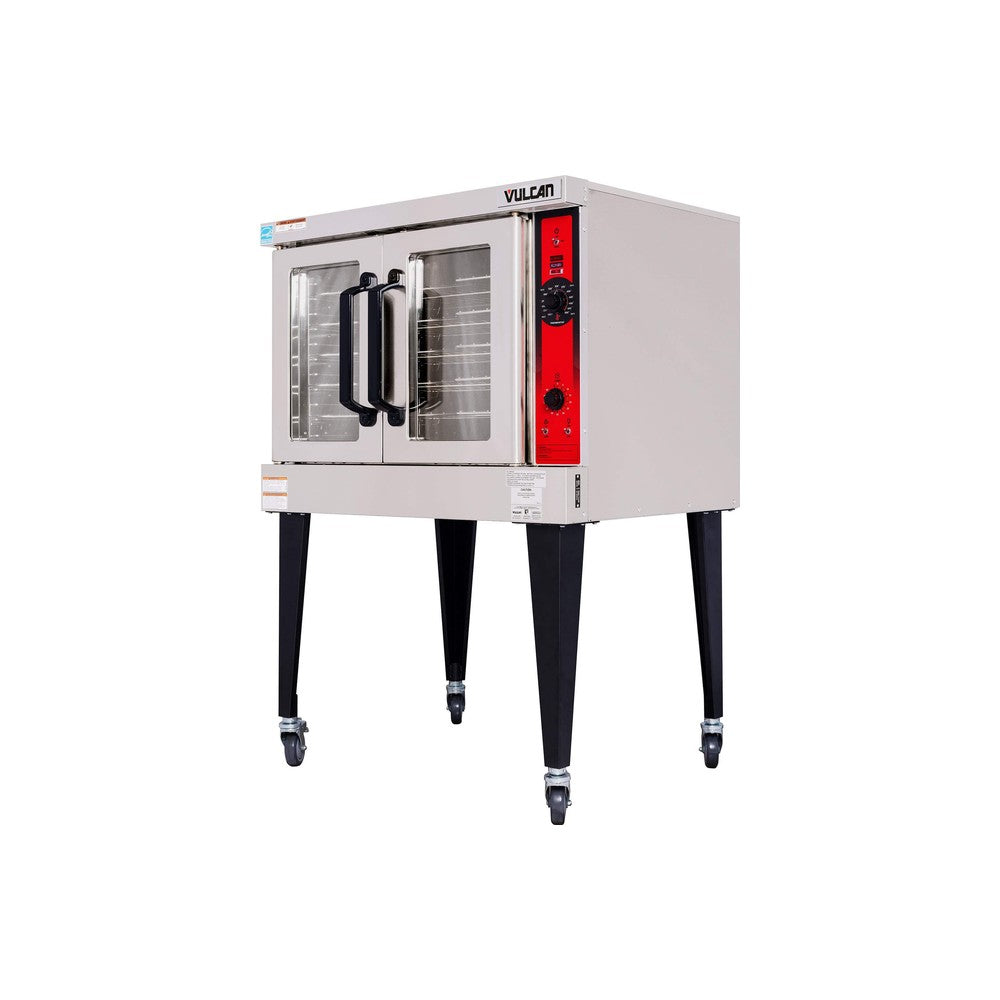

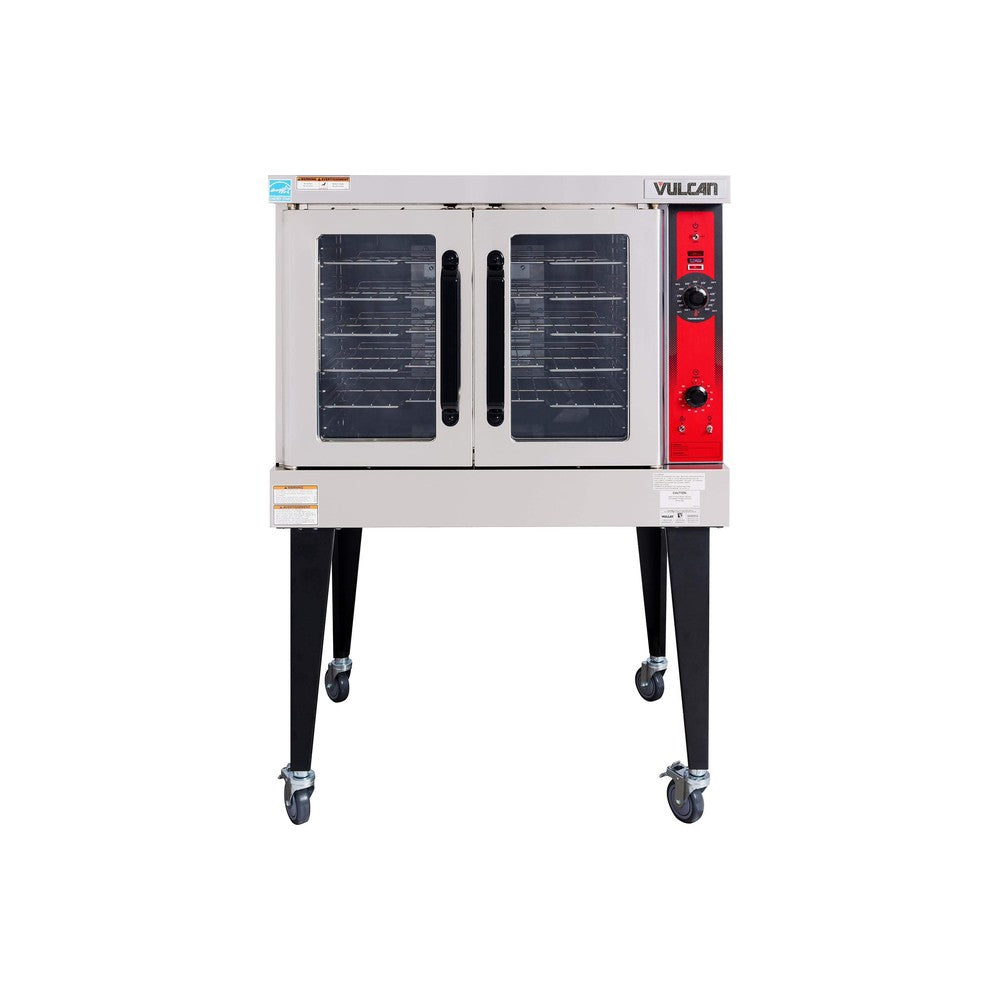

Vulcan VC4ED, Electric Full Size Convection Oven, Single Deck, Solid State Controls, 12.5 kW

The Vulcan VC4ED is a single-deck electric convection oven. A two-speed 1/2 HP blower and solid state controls from 150° to 500°F give even results for baking, roasting and reheating. Input is 12.5 kW.

Best for:

• Restaurants, bakeries and institutions baking and roasting in volume
• Even browning of sheet-pan items, breads and proteins
• Kitchens replacing older Vulcan or comparable convection ovens

Key specifications:

• Model: VC4ED
• Capacity: 5 full-size sheet pans
• Oven cavity: 29" W x 22-1/8" D x 20" H
• Input: 12.5 kW
• Controls: solid state with 60-minute timer
• Overall size: 40-1/4" W x 41-1/8" D x 54-3/4" H
• Shipping weight: 440 lb

Features:

• Independently opening stainless steel doors with double pane windows
• Five nickel-plated grab-and-go racks per deck, 11 rack positions
• Stainless steel front, sides and top; painted legs
• Solid state temperature control, 150° to 500°F
• 60-minute timer with alarm
• Two-speed 1/2 HP blower motor
• Oven cool switch for fast cool-down
• Porcelain enamel on steel interior
• Moisture vent

Installation notes:

• Hard-wired electrical connection; available for 208V or 240V, 1 or 3 phase (specify when ordering)
• Check amperage on the spec sheet for your voltage and phase
• Install with clearances per the spec sheet and local codes

Warranty:

• 1 year parts and labor from Vulcan
