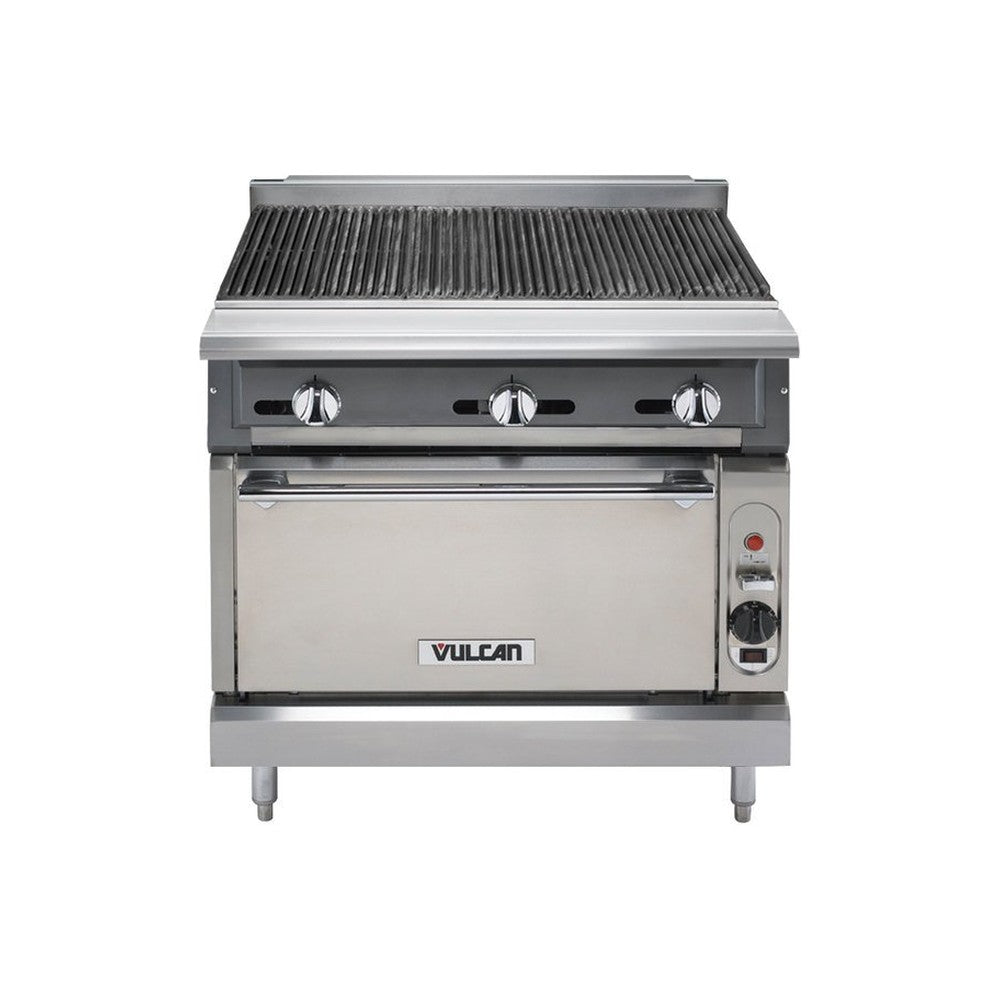

Vulcan VCBB36C-1, 36" Natural Gas Heavy Duty Range, 32" Charbroiler, Convection Oven, 131,000 BTU

The Vulcan VCBB36C-1 is a 36-inch V series heavy-duty range with a 32" radiant charbroiler over a convection oven. V series sections are modular and battery-ready, with a 1-1/4" front gas manifold, so they can be lined up with other Vulcan heavy-duty units into a full cooking line. Total input is 131,000 BTU on natural gas.

Best for:

• Hotels, institutions and high-volume restaurants
• Kitchens building a modular heavy-duty cooking line
• Operators who need a range built for constant use

Key specifications:

• Model: VCBB36C-1
• Top: a 32" radiant charbroiler
• Total input: 131,000 BTU/hr, natural gas
• Oven: convection oven, 32,000 BTU/hr, 27" W x 27" D x 13" H
• Overall size: 36" W x 41-7/8" D x 36" H
• Shipping weight: 763 lb

Features:

• 32" charbroiler top, 99,000 BTU/hr
• Heavy-duty slanted cast grates over char radiants
• Stainless steel burner dividers for zoned broiling
• Convection Oven, 32,000 BTU/hr, 27" W x 27" D x 13" H porcelain cavity
• Oven temperature 175°F to 550°F
• Two oven racks
• Individual pilots and controls for each burner
• Stainless steel front, top ledge, burner box, sides, base and 4" stub riser
• 6" adjustable stainless steel legs

Installation notes:

• 1-1/4" front gas manifold with a 1-1/4" rear connection (capped); can be battery-connected to other V series units
• Convection oven fan motor needs a 115V electrical connection
• This listing is the natural gas model; the propane version is model VCBB36C-2
• Install under a ventilation hood and connect by a licensed installer per local codes

Warranty:

• 1 year parts and labor from Vulcan
