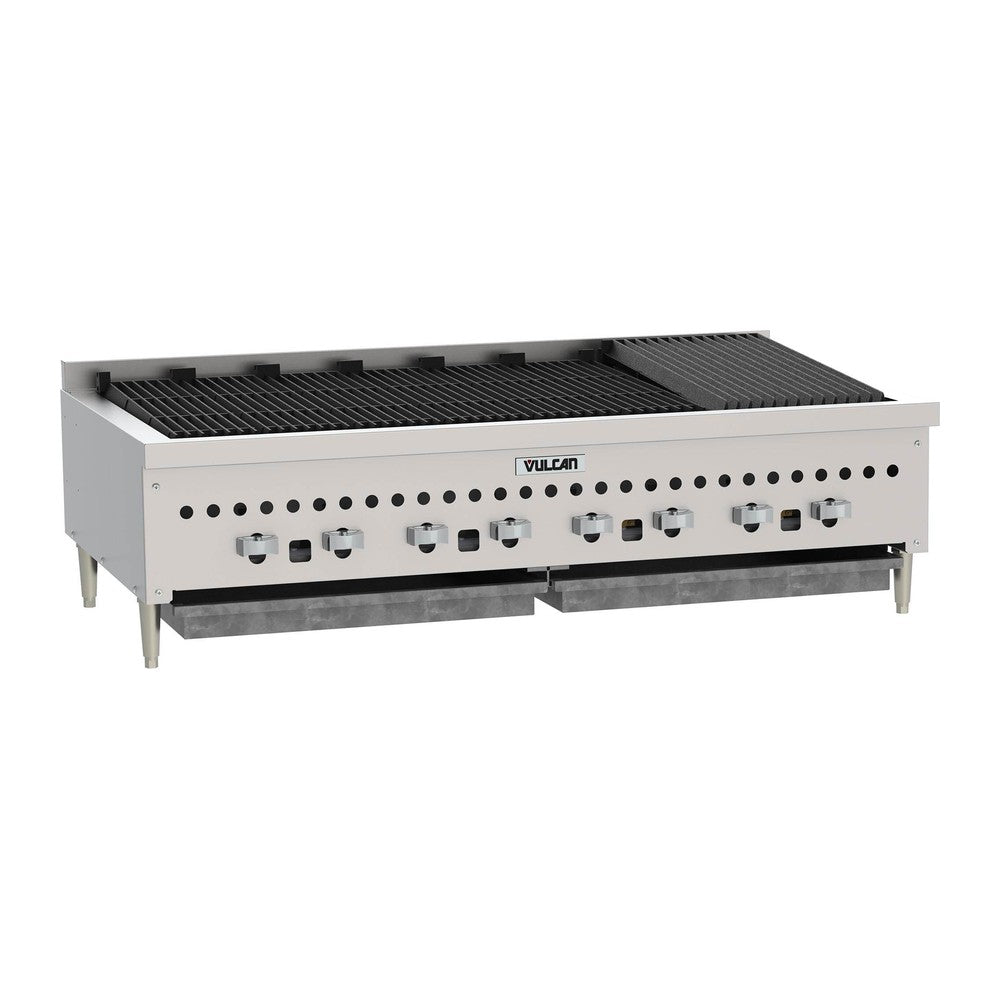

Vulcan VCCB47-1, 47" Countertop Natural Gas Radiant Charbroiler, VCCB Series, 116,000 BTU

The Vulcan VCCB47-1 is a 47-inch heavy-duty countertop radiant charbroiler from the VCCB series. Reversible 5-1/4" cast iron grates can be set level or sloped for self-cleaning, and a pitched grease trough in each grate blade carries fat away to control flare-ups. Total input is 116,000 BTU on natural gas.

Best for:

• Steakhouses, grills and burger concepts
• Lines that need marked, flame-broiled proteins and vegetables
• Operators who want multi-zone broiling on the counter

Key specifications:

• Model: VCCB47-1
• Burners: 8 cast iron, 14,500 BTU/hr each
• Broiling area: 43" W x 20-1/2" D
• Total input: 116,000 BTU/hr, natural gas
• Controls: infinite heat valves
• Overall size: 47" W x 27-1/4" D x 14-3/4" H
• Shipping weight: 460 lb

Features:

• 8 cast iron burners at 14,500 BTU/hr each, one per grate
• Heavy cast iron char-radiants
• 5-1/4" wide reversible cast iron grates for level or sloped broiling
• Cast-in grease trough in each grate blade to control flare-ups
• Underburner deflectors create a cool zone in the grease drawer
• One infinite heat control valve per burner
• Standing pilot ignition
• Full-width front grease drawer(s)
• Stainless steel sides, panel, trim, backsplash and grease trough
• 4" adjustable legs

Installation notes:

• 3/4" rear gas connection; a gas pressure regulator is supplied
• This listing is the natural gas model; the propane version is model VCCB47-2
• Install under a ventilation hood and connect by a licensed installer per local codes

Warranty:

• 1 year limited parts and labor from Vulcan
