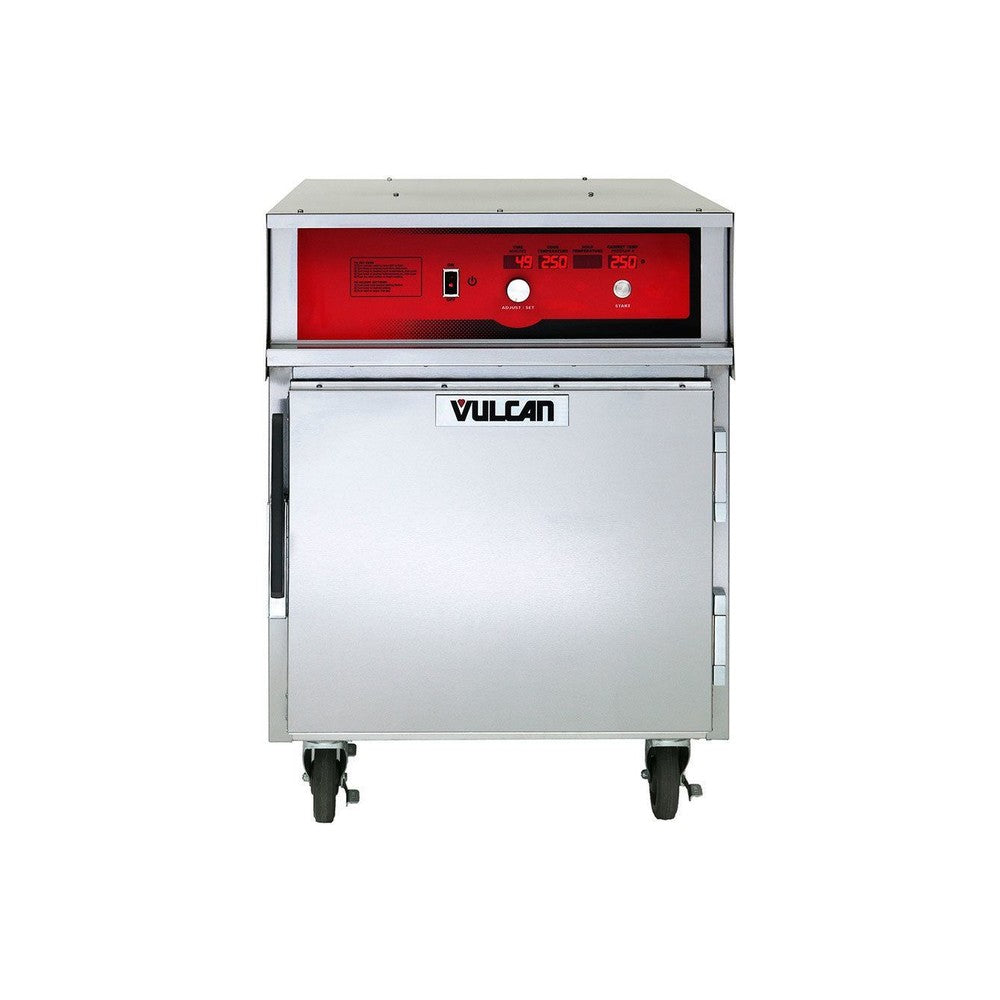

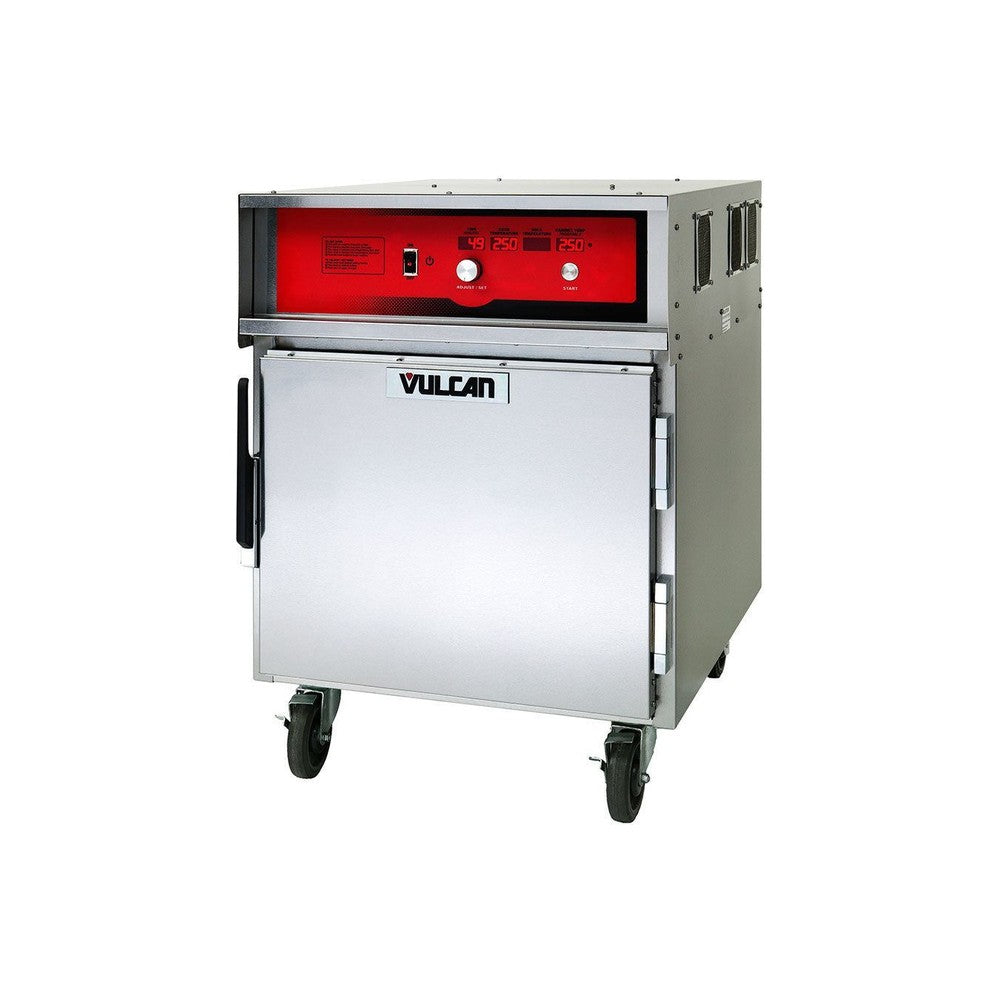

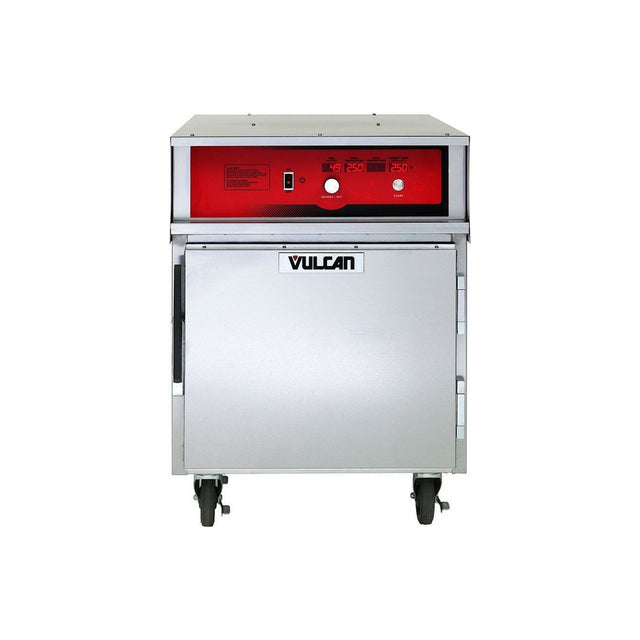

Vulcan VCH5, Electric Cook and Hold Oven, Half Height, 5 Pan, 208/240V

The Vulcan VCH5 is a half-height electric cook and hold oven. It slow-cooks at up to 350°F, then drops automatically to a holding temperature of up to 250°F, so roasts, ribs and briskets finish on their own timetable and stay ready to serve. It also rethermalizes chilled product.

Best for:

• Restaurants and caterers slow-roasting meats overnight
• Banquet and hotel kitchens holding large batches
• Barbecue and carvery operations

Key specifications:

• Model: VCH5
• Capacity: 5 full-size sheet pans or 10 steam table pans (12" x 20" x 2-1/2")
• Cook up to 350°F; hold up to 250°F
• Electrical: 208/240V, single phase, 1,900 W total
• Controls: digital, programmable
• Overall size: 27-1/4" W x 36" D x 34" H
• Shipping weight: 241 lb

Features:

• Knob controls set cook time, cook temperature and hold temperature
• Digital LED display of time, hold, cook and cabinet temperature
• Nine programmable custom programs
• Low-speed fan for even heat and natural browning
• Removable control/power module
• Three pairs of removable universal tray slides on 1-1/2" centers; two wire grid racks
• 20 gauge stainless steel interior and exterior on an integrated steel frame
• Insulated 2" top, 1" sides and bottom
• Magnetic door latch and heavy-duty hinges
• 3" heavy-duty casters, two with brakes

Installation notes:

• 208/240V, 60 Hz, single phase; supplied with a cord and NEMA 6-30 plug
• No vent hood required for electric cook and hold in most jurisdictions; confirm with local code
• Allow clearance for door swing and service access

Warranty:

• 1 year limited parts and labor; 10-year warranty on heating elements from Vulcan
