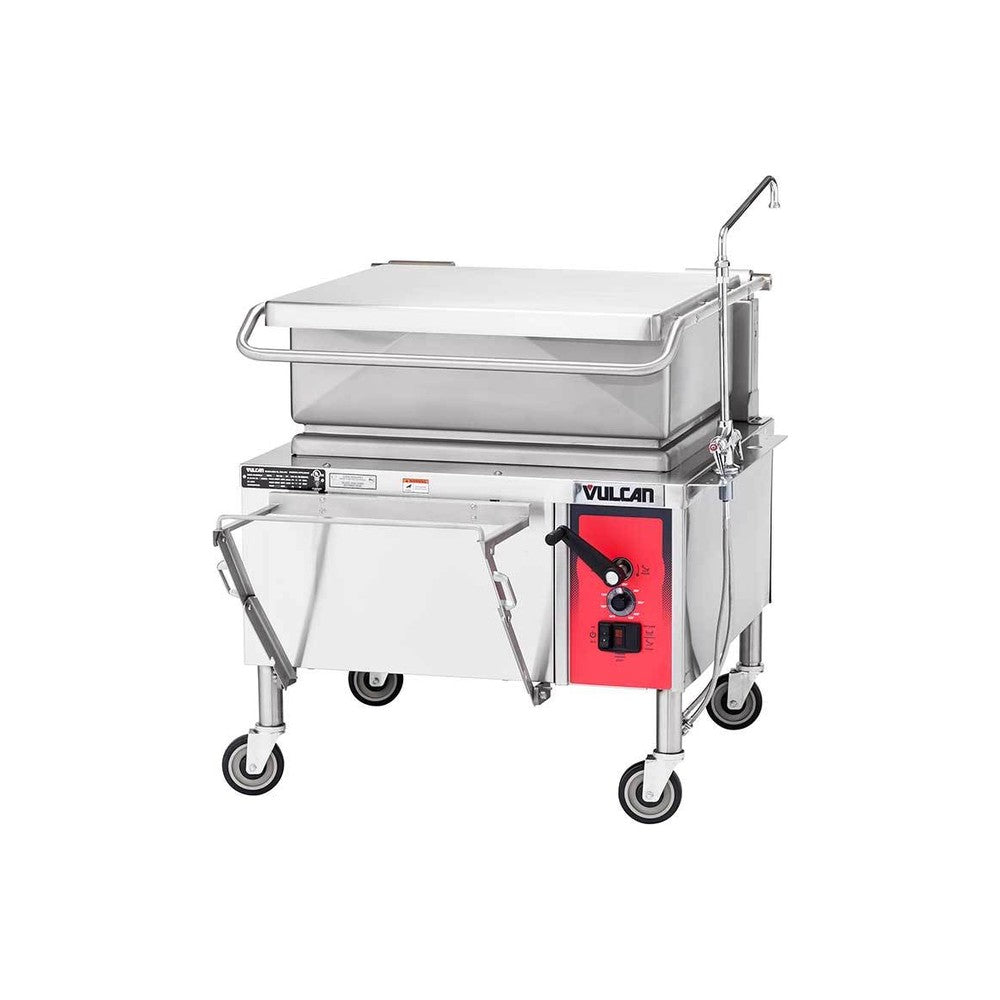

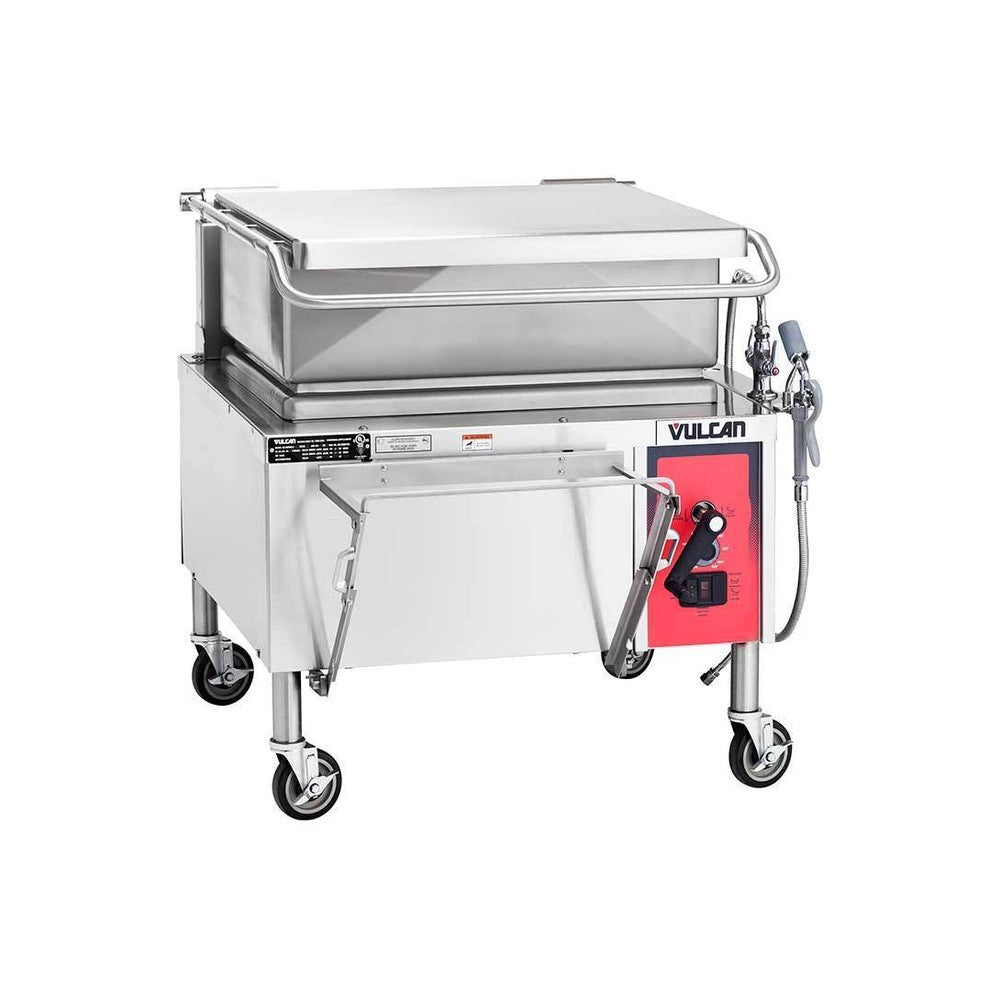

Vulcan VE40, 40 Gallon Electric Tilting Skillet, Braising Pan, Manual Tilt, 12 kW

The Vulcan VE40 is a 40-gallon electric tilting skillet (braising pan) that browns, braises, sautés, simmers and grills in one large pan. A manual crank tilts the pan to pour product out through the front lip and strainer, and a spring-assisted cover holds open at any point for vented cooking.

Best for:

• Institutions, schools and hotels cooking large batches
• Braising, stews, sauces and chili
• Kitchens replacing a range-top stock pot setup with one tilting pan

Key specifications:

• Model: VE40
• Capacity: 40 gallons
• Input: 12 kW
• Tilt: manual crank
• Controls: solid state thermostat
• Overall size: 46" W x 35-1/2" D x 40-1/2" H
• Shipping weight: 720 lb

Features:

• FastBatch embedded heating elements for fast, even heat; anti-stick stainless-clad cooking surface
• Stainless steel pan with coved corners and embossed gallon markings
• Front pouring lip with removable perforated strainer
• Spring-assisted stainless cover with condensate lip; stops in place for venting
• Manual anti-jam tilt mechanism with removable handle
• Thermostat 50°F to 425°F
• Solid state temperature controls
• Water-tight controls and enclosures
• Faucet mounting bracket and drop-away food pan support
• Stainless steel front, sides, back and 12" legs with adjustable flanged feet

Installation notes:

• Ships wired for 208V 3 phase; field convertible to 208V single phase (240V available, specify when ordering)
• Hard-wired by a licensed electrician
• A floor drain or trough in front is recommended

Warranty:

• 1 year limited parts and labor from Vulcan
