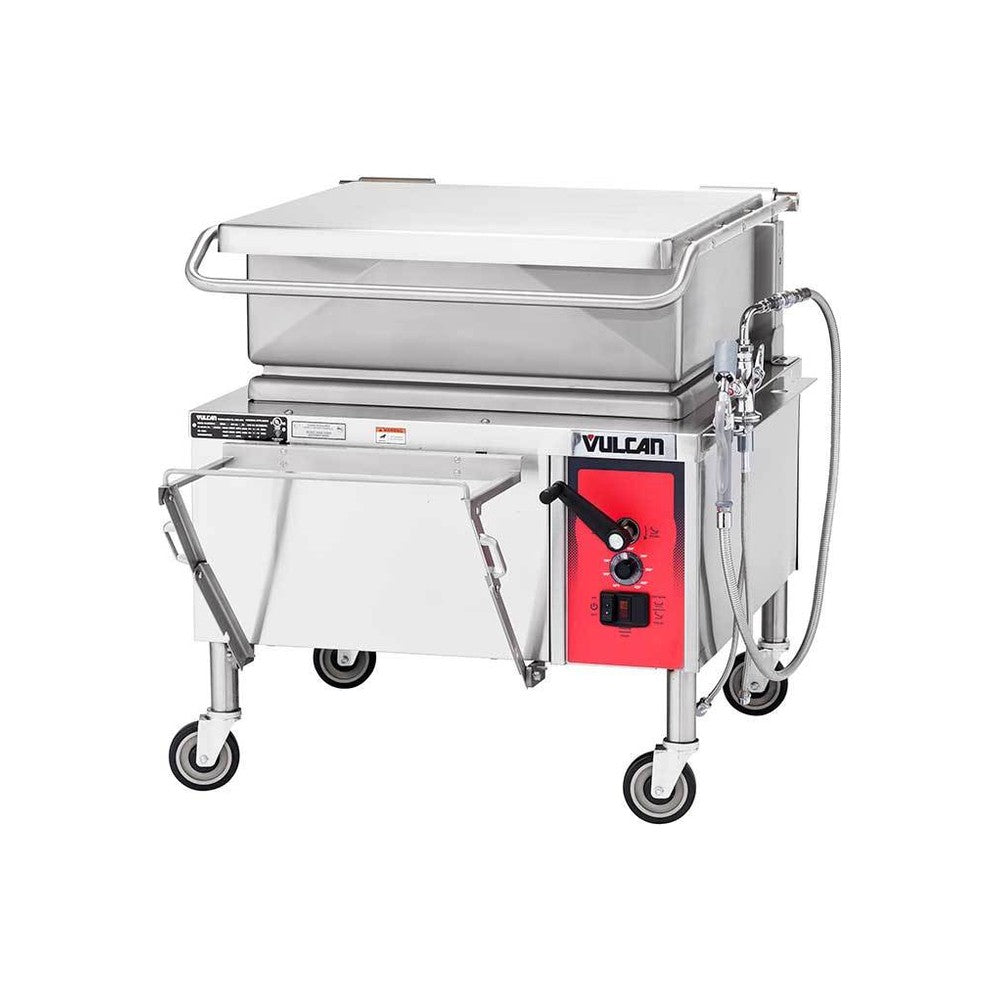

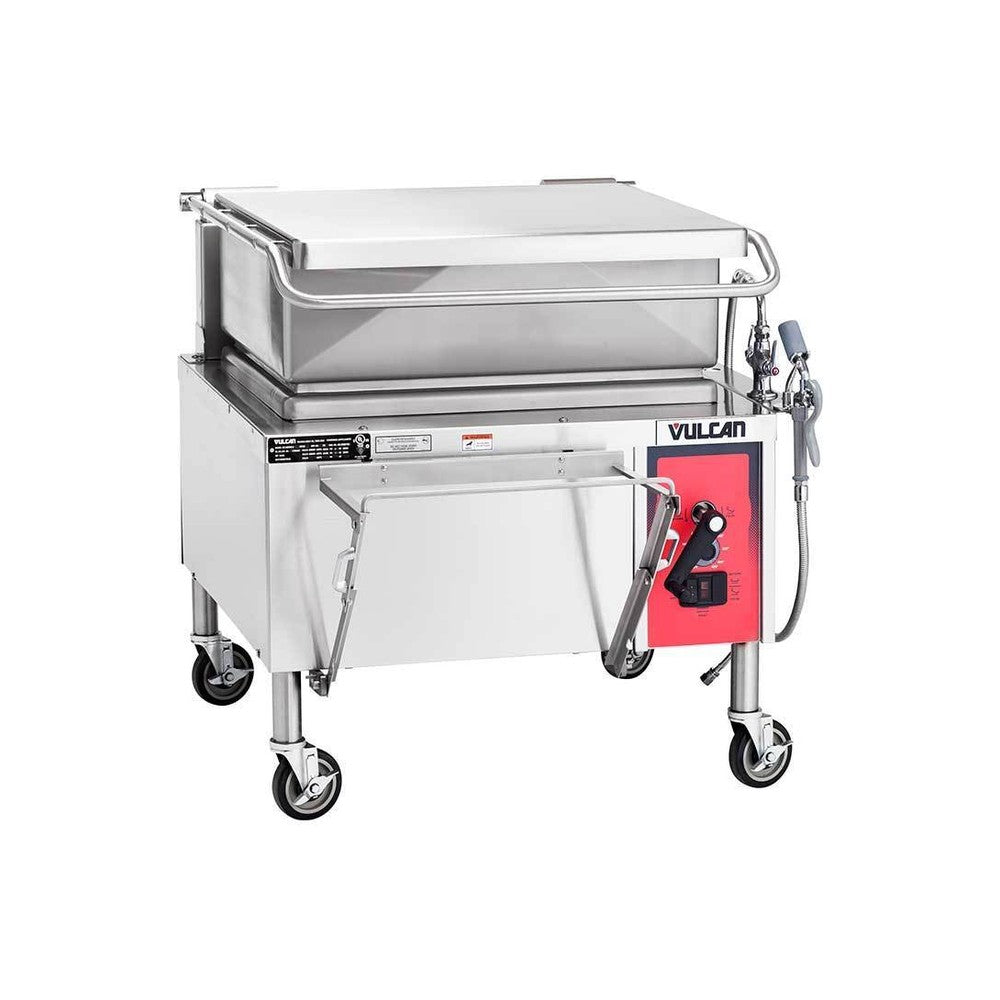

Vulcan VG30-1, 30 Gallon Natural Gas Tilting Skillet, Braising Pan, Manual Tilt, 90,000 BTU

The Vulcan VG30-1 is a 30-gallon gas tilting skillet (braising pan) that browns, braises, sautés, simmers and grills in one large pan. A manual crank tilts the pan to pour product out through the front lip and strainer, and a spring-assisted cover holds open at any point for vented cooking.

Best for:

• Institutions, schools and hotels cooking large batches
• Braising, stews, sauces and chili
• Kitchens replacing a range-top stock pot setup with one tilting pan

Key specifications:

• Model: VG30-1
• Capacity: 30 gallons
• Input: 90,000 BTU, natural gas
• Tilt: manual crank
• Controls: solid state thermostat
• Overall size: 36" W x 35-1/2" D x 40-1/2" H
• Shipping weight: 630 lb

Features:

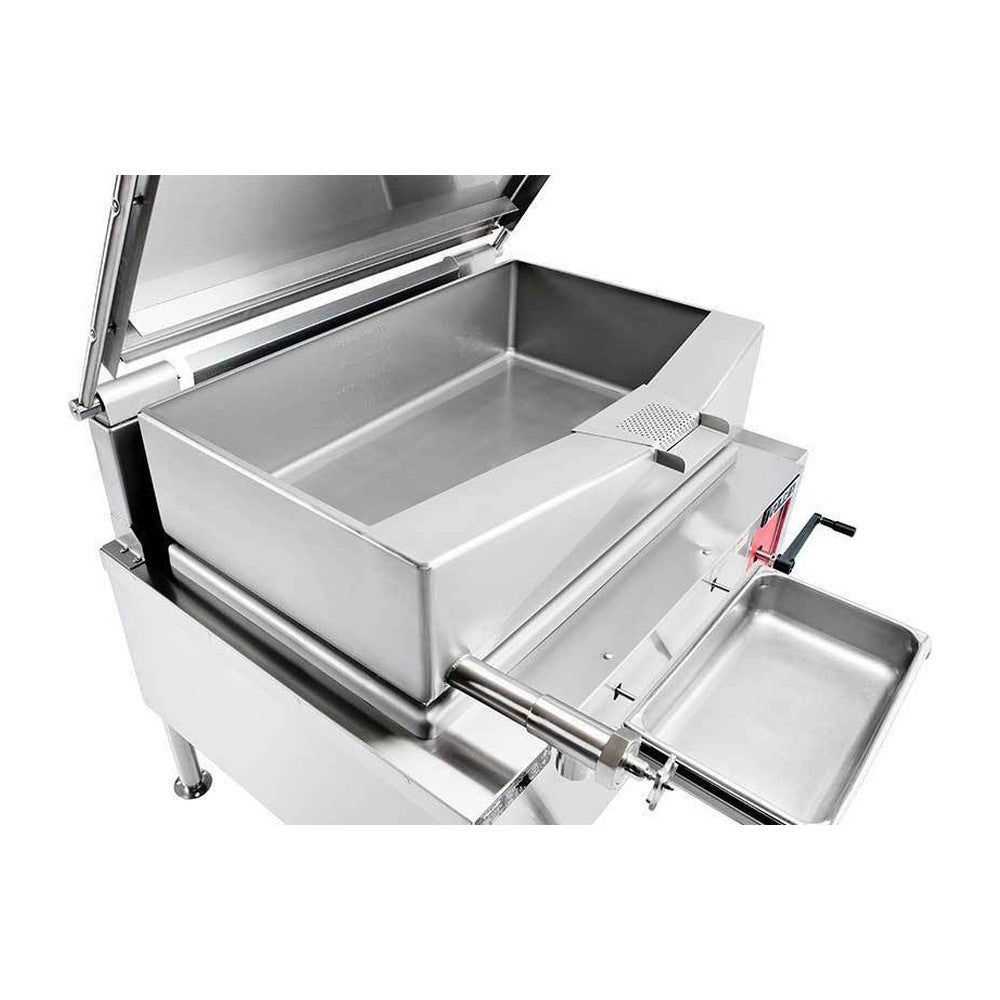

• Stainless steel pan with coved corners and embossed gallon markings
• Front pouring lip with removable perforated strainer
• Spring-assisted stainless cover with condensate lip; stops in place for venting
• Manual anti-jam tilt mechanism with removable handle
• One 30,000 BTU/hr burner per 12" of pan width; burners shut off when the pan tilts; electronic ignition
• Solid state temperature controls
• Water-tight controls and enclosures
• Faucet mounting bracket and drop-away food pan support
• Stainless steel front, sides, back and 12" legs with adjustable flanged feet

Installation notes:

• 3/4" rear gas connection with regulator
• Requires 120V, 60 Hz, single phase power (3 amps)
• This listing is the natural gas model; the propane version is model VG30-2
• Install under a ventilation hood; a floor drain or trough in front is recommended

Warranty:

• 1 year limited parts and labor from Vulcan
