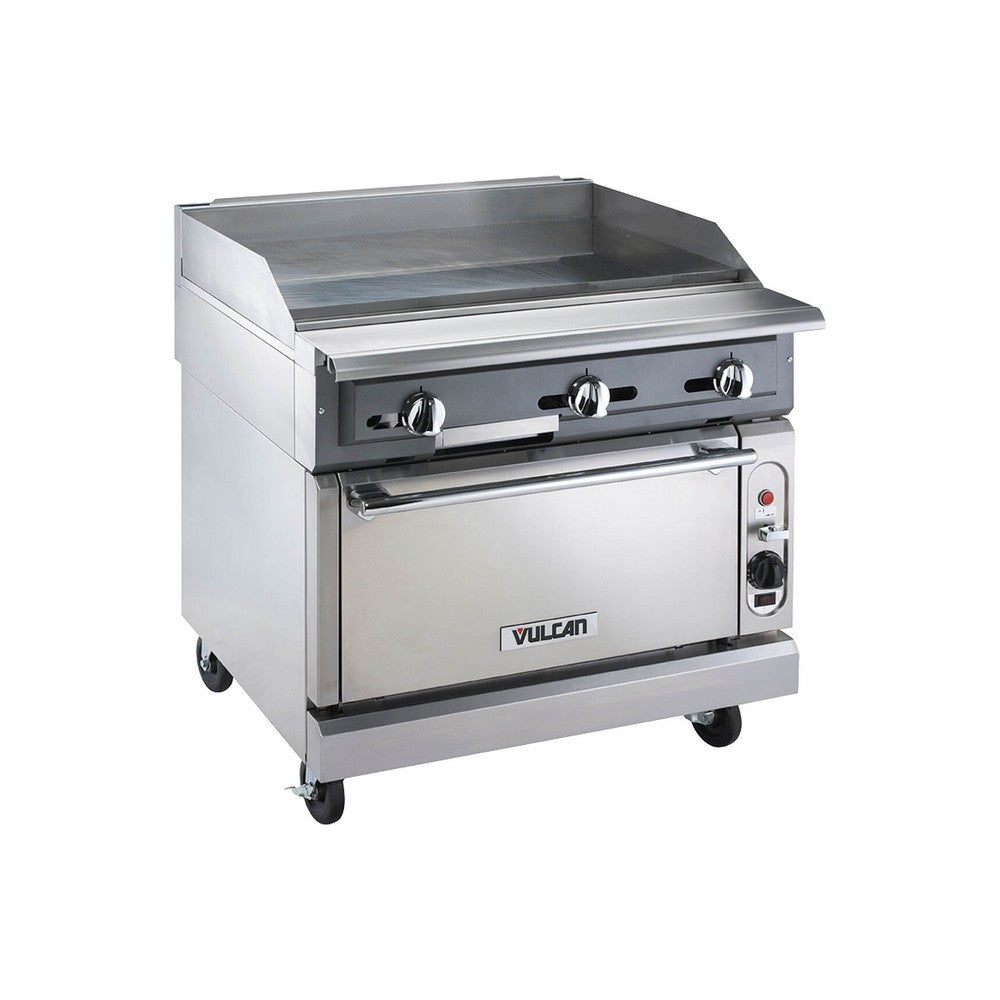

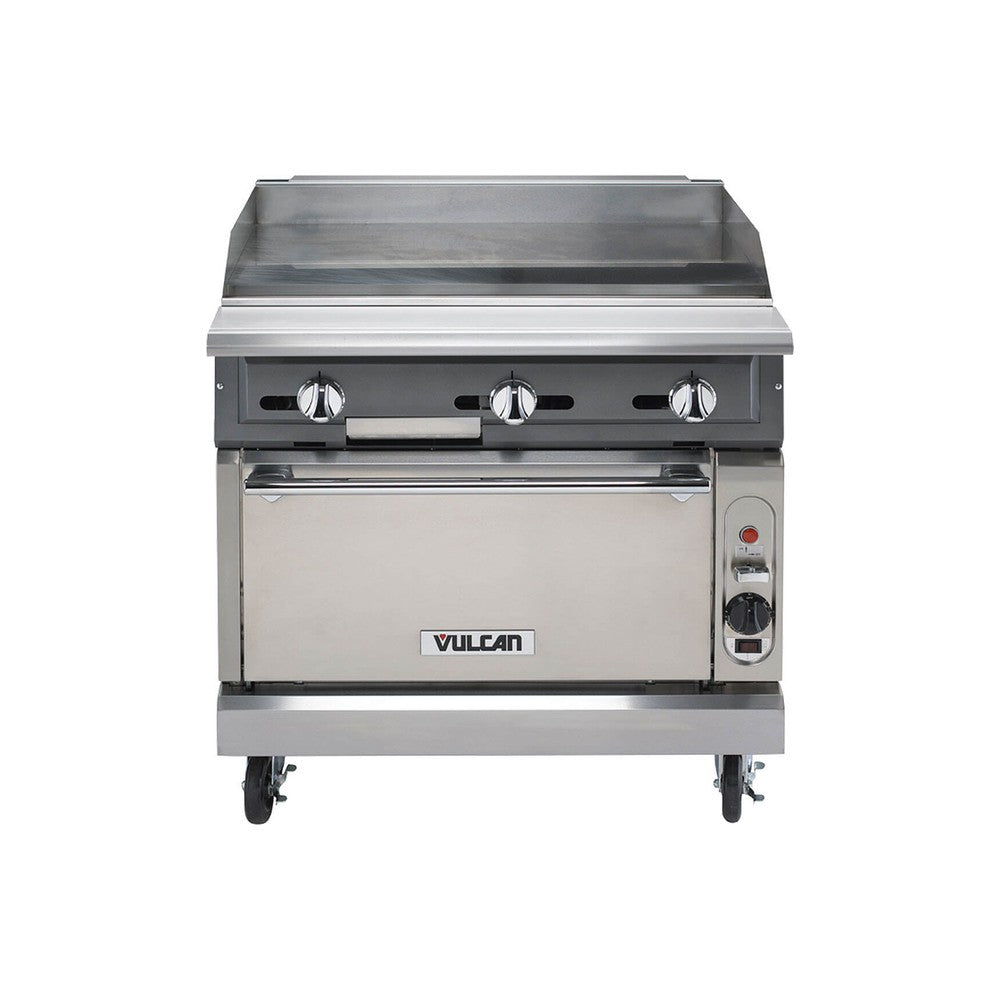

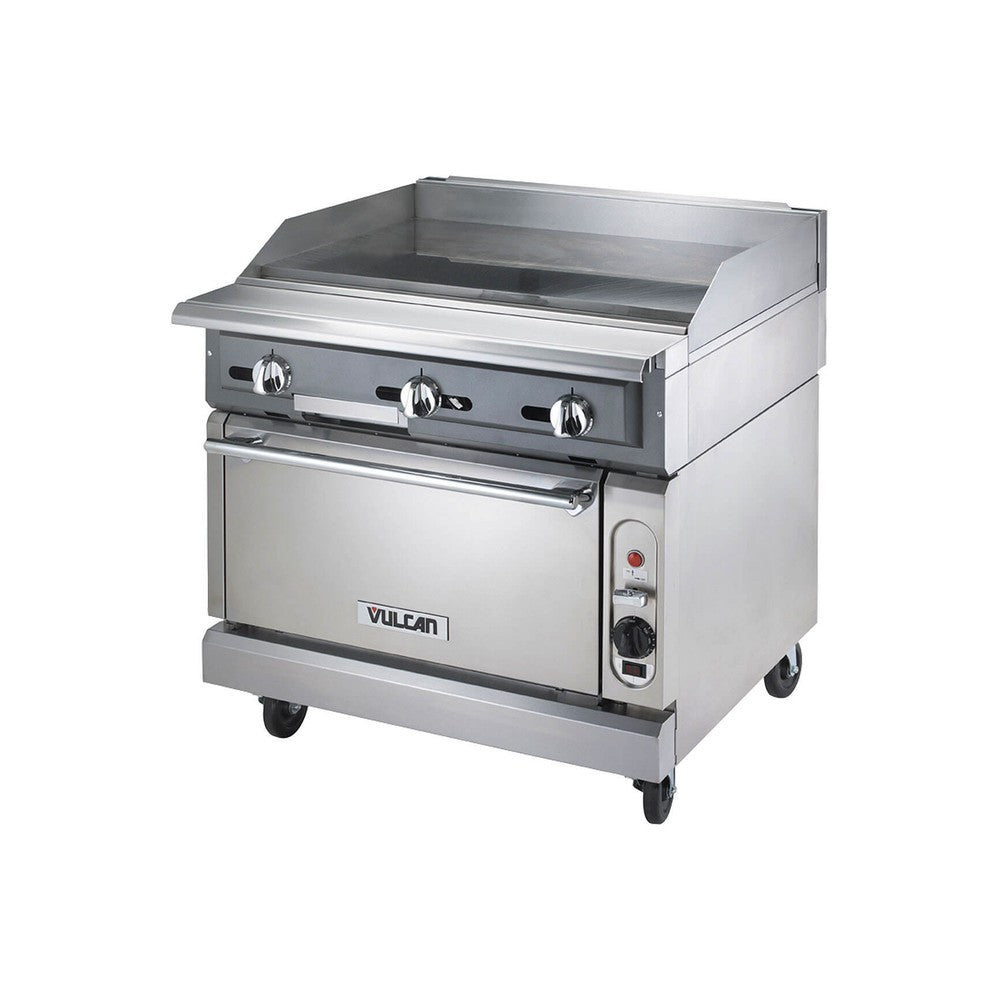

Vulcan VGM36S-1, 36" Natural Gas Heavy Duty Range, 36" Manual Griddle, Standard Oven, 140,000 BTU

The Vulcan VGM36S-1 is a 36-inch V series heavy-duty range with a 36" manual griddle over a standard oven. V series sections are modular and battery-ready, with a 1-1/4" front gas manifold, so they can be lined up with other Vulcan heavy-duty units into a full cooking line. Total input is 140,000 BTU on natural gas.

Best for:

• Hotels, institutions and high-volume restaurants
• Kitchens building a modular heavy-duty cooking line
• Operators who need a range built for constant use

Key specifications:

• Model: VGM36S-1
• Top: a 36" manual griddle
• Total input: 140,000 BTU/hr, natural gas
• Oven: standard oven, 50,000 BTU/hr, 27" W x 27" D x 13" H
• Overall size: 36" W x 36-3/4" D x 40-1/2" H
• Shipping weight: 685 lb

Features:

• 36" griddle with a 3/4" ground steel plate
• Three 30,000 BTU/hr griddle burners with manual valves
• 4" high side splashes
• Standard Oven, 50,000 BTU/hr, 27" W x 27" D x 13" H porcelain cavity
• Oven temperature 150°F to 550°F
• One oven rack
• Individual pilots and controls for each burner
• Stainless steel front, top ledge, burner box, sides, base and 4" stub riser
• 6" adjustable stainless steel legs

Installation notes:

• 1-1/4" front gas manifold with a 1-1/4" rear connection (capped); can be battery-connected to other V series units
• This listing is the natural gas model; the propane version is model VGM36S-2
• Install under a ventilation hood and connect by a licensed installer per local codes

Warranty:

• 1 year parts and labor from Vulcan
