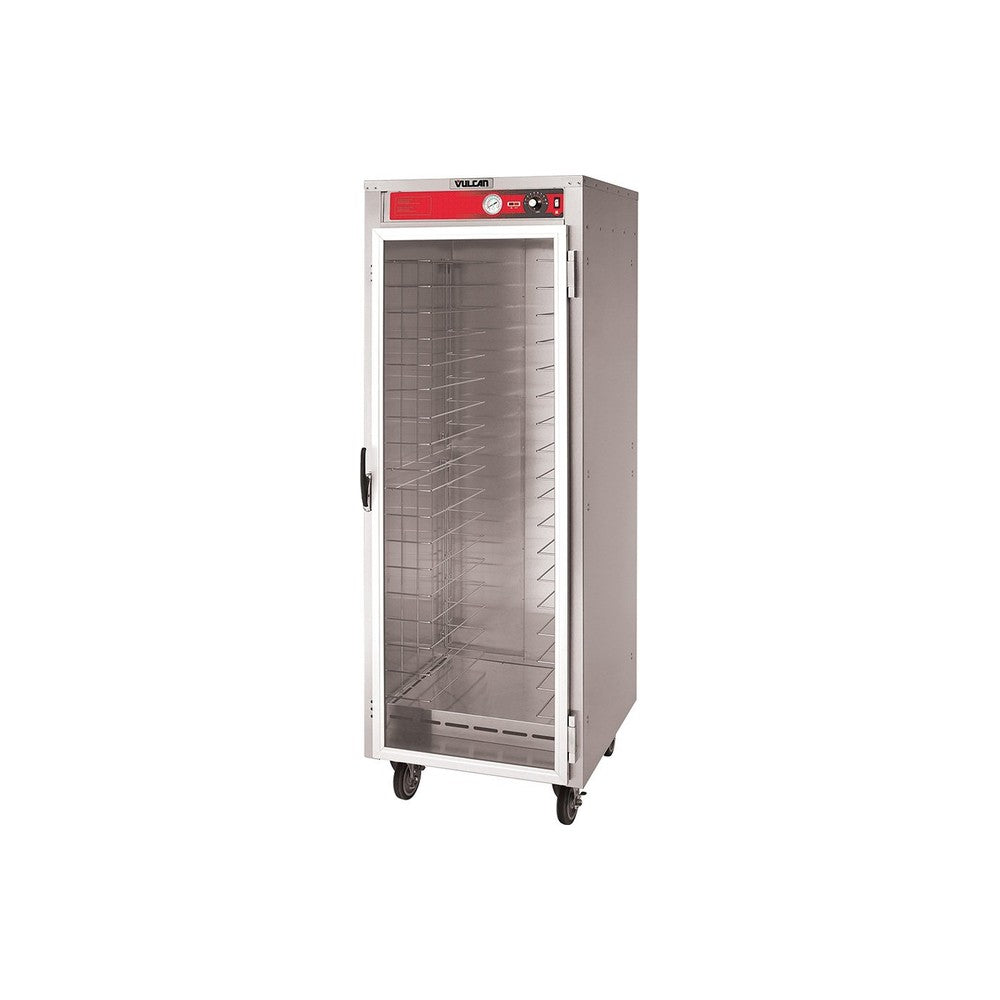

Vulcan VHFA18-1M3ZN, Full Height Heated Holding Cabinet, 18 Pan, Glass Door, 120V

The Vulcan VHFA18-1M3ZN is a full-height mobile heated holding cabinet with 18 pan levels and a full glass door. A fan and air tunnel move heat evenly through the cabinet, and the controls sit on top, out of the way of mops and carts.

Best for:

• Restaurants, caterers and banquet halls holding hot food
• Schools and institutions staging meals for service
• Transporting food between kitchen and serving line

Key specifications:

• Model: VHFA18-1M3ZN
• Capacity: 18 sheet pans or 36 steam table pans
• Temperature: up to 190°F
• Electrical: 120V, 2,000 W, 16.7 A
• Mobile on casters
• Overall size: 25-1/4" W x 30-3/4" D x 71" H
• Shipping weight: 220 lb

Features:

• 18 levels; holds 18 sheet pans (18" x 26") or 36 steam table pans (12" x 20")
• Heavy 20 gauge polished stainless steel cabinet
• Full glass door with field-reversible hinges, latch and gasket
• Fixed, removable pan supports that accept pan covers for transport
• Top-mounted recessed controls with dial thermostat to 190°F and temperature readout
• Fan and air tunnel for even heat
• 2,000 W metal-sheathed heating elements
• 5" casters, two swivel with brakes and two rigid

Installation notes:

• 120V, single phase, 16.7 A; top-mounted cord with NEMA 5-20 plug
• A dedicated 20 A circuit is recommended
• Non-insulated cabinet; keep away from cold drafts for best holding

Warranty:

• 1 year limited parts and labor; lifetime warranty on heating elements from Vulcan
